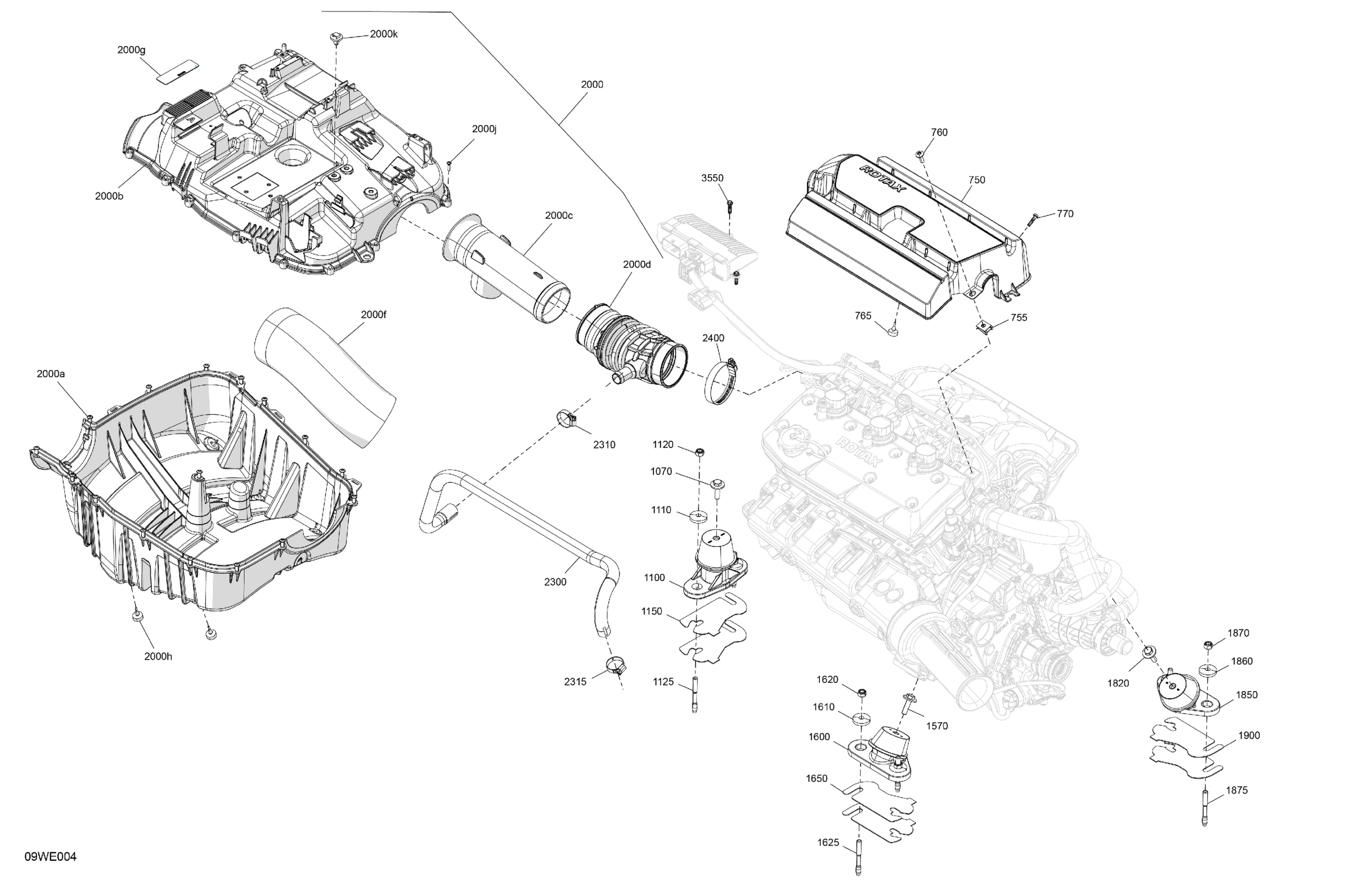

Sea-doo BASE 16 - 130 - 41SD - Can-Am Red - Trailer Paint - CAT2B - 2025 ENGINE - System Diagram

Description

Price

750

Engine Cover

270001174

$36.89

755

Panel Nut M6 X 1

420942108

$11.48

760

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

765

Seat Stopper

708003866

$3.61

770

Hex. Flange PT Screw K50 X 20

241152040

$1.74

1070

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1100

Engine Support Ass'y

270001096

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hex. Elastic Nut M8 Brass

232581200

$1.29

1125

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1150

Shim 1.3 mm

270000762

$9.04

1570

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1600

Engine Support Ass'y

270001081

$101.51

1610

Cone Washer

250200018

$4.64

1620

Hex. Elastic Nut M8 Brass

232581200

$1.29

1625

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1650

Shim 1.3 mm

270000762

$9.04

1820

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1850

Engine Support Ass'y

270001081

$101.51

1860

Cone Washer

250200018

$4.64

1870

Hex. Elastic Nut M8 Brass

232581200

$1.29

1875

Stud M8X1.25X70.5 S.GRIP

250001156

Unavailable

1900

Shim 1.3 mm

270000762

$9.04

2000

Intake Silencer Ass'y | Includes 2000 to 2000k

273000438

$119.97

2000a

Lower Intake Silencer

273000446

$69.20

2000b

Upper Intake Silencer

273000447

$69.20

2000c

Intake Duct Silencer Int

273000445

$46.12

2000d

Intake Duct Silencer Out

273000439

$46.12

2000f

Intake Duct Silencer In

273000425

$49.97

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Seat Stopper

708003866

$3.61

2000j

Flange Torx Screw K40 X 16

250000287

$1.74

2000k

Mount Dart

710008294

$1.02

2300

Formed Hose

270001071

Unavailable

2310

Gear Clamp

293650284

$3.61

2315

Clamp Gear

293650285

$2.68

2400

Tridon Clamp

293650179

$8.81

3550

Flange Torx Screw K40 X 16

250000287

$1.74
