06- HULL - Rear Deflector Float and Rear Bumper

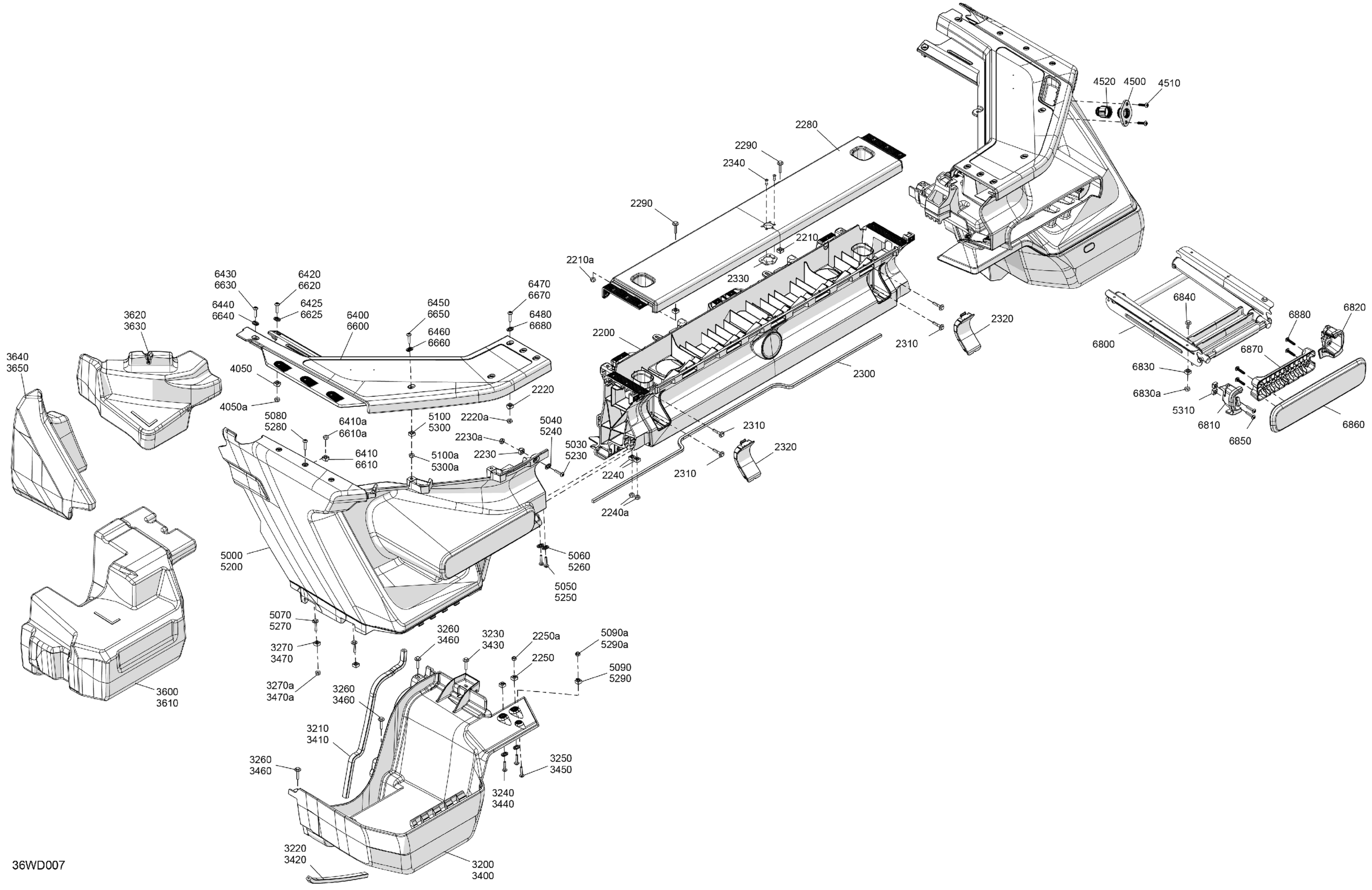

Sea-doo North America - BASE 16 - 130 - 41RC - Red - Trailer Paint - CAT2B, 2024 06- HULL - Rear Deflector Float and Rear Bumper Diagram
#
2200
Rear Bumper Service Kit
295101095
$319.99
2210
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2210a
Elastic Stop Nut M6, Brass
232561200
$4.23
2220
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2220a
Elastic Stop Nut M6, Brass
232561200
$4.23
2230
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2230a
Elastic Stop Nut M6, Brass
232561200
$4.23
2240
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2240a
Elastic Stop Nut M6, Brass
232561200
$4.23
2250
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2250a
Elastic Stop Nut M6, Brass
232561200
$4.23
2280
Bumper Trim
291004820
$129.99
2290
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
2300
Gasket
292002523
$9.32
2310
Hex SEMS Screw M6X30
250001164
$1.37
2320
Rear Bumper Cap
291005459
$7.09
2330
Retaining Plate
291005813
$11.49
2340
Pop Rivet 3/16"
293150005
$0.52
3200
LH Rear Float Deflector
291004847
$164.99
3210
Gasket
292002677
$30.99
3220
Gasket
292002677
$30.99
3230
Hex Screw SEMS M6X35, SS
250000969
$2.11
3240
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
3250
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
3260
Hex Screw SEMS M6X35, SS
250000969
$2.11
3270
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
3270a
Elastic Stop Nut M6, Brass
232561200
$4.23
3400
RH Rear Deflector Float
291006071
$164.99
3410
Gasket
292002677
$30.99
3420
Gasket
292002677
$30.99
3430
Hex Screw SEMS M6X35, SS
250000969
$2.11
3440
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
3450
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
3460
Hex Screw SEMS M6X35, SS
250000969
$2.11
3470
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
3470a
Elastic Stop Nut M6, Brass
232561200
$4.23
3600
LH Lower Rear Float
292002847
$76.99
3610
RH Lower Rear Float
292002848
$76.99
3620
LH Rear Upper Float
291005815
$27.99
3630
RH Rear Upper Float
291005816
$27.99
3640
LH Lat Rear Float
291005843
$27.99
3650
RH Rear Lateral Float
291005844
$27.99
4050
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
4050a
Elastic Stop Nut M6, Brass
232561200
$4.23
4500
Through Hull Fitting
292002765
$7.79
4510
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
4520
Adapter Hose
291005837
$12.12
5000
LH Rear Panel
291004848
$319.99
5030
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5040
Oval Washer
291003880
$1.77
5050
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5060
Oval Washer
291003880
$1.77
5070
Hex Screw SEMS M6X35, SS
250000969
$2.11
5080
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5090
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
5090a
Elastic Stop Nut M6, Brass
232561200
$4.23
5100
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
5100a
Elastic Stop Nut M6, Brass
232561200
$4.23
5200
RH Rear Panel
291004850
$319.99
5230
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5240
Oval Washer
291003880
$1.77
5250
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5260
Oval Washer
291003880
$1.77
5270
Hex Screw SEMS M6X35, SS
250000969
$2.11
5280
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5290
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
5290a
Elastic Stop Nut M6, Brass
232561200
$4.23
5300
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
5300a
Elastic Stop Nut M6, Brass
232561200
$4.23
5310
Platite Insert 6.81
291005889
$5.82
6400
LH Rear Panel Trim
291005438
$109.99
6410
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
6410a
Elastic Stop Nut M6, Brass
232561200
$4.23
6420
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6425
Oval Washer
291003880
$1.77
6430
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6440
Oval Washer
291003880
$1.77
6450
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6460
Oval Washer
291003880
$1.77
6470
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6480
Oval Washer
291003880
$1.77
6600
RH Rear Panel Trim
291006064
$109.99
6610
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
6610a
Elastic Stop Nut M6, Brass
232561200
$4.23
6620
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6625
Oval Washer
291003880
$1.77
6630
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6640
Oval Washer
291003880
$1.77
6650
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6660
Oval Washer
291003880
$1.77
6670
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
6680
Oval Washer
291003880
$1.77
6800
Ladder
291005319
$349.99
6810
LH Ladder Support
291005316
$10.49
6820
RH Ladder Support
291005699
$10.49
6830
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
6830a
Elastic Stop Nut M6, Brass
232561200
$4.23
6840
Hex Screw M6 X 20
250000965
$2.11
6850
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
6860
Ladder Trim Service Kit
295101099
$19.49
6870
Ladder Trim Fastener
291005595
$38.99
6880
Plastite Screw Torx Cone HD.M6.81X3
250001138
$2.30
