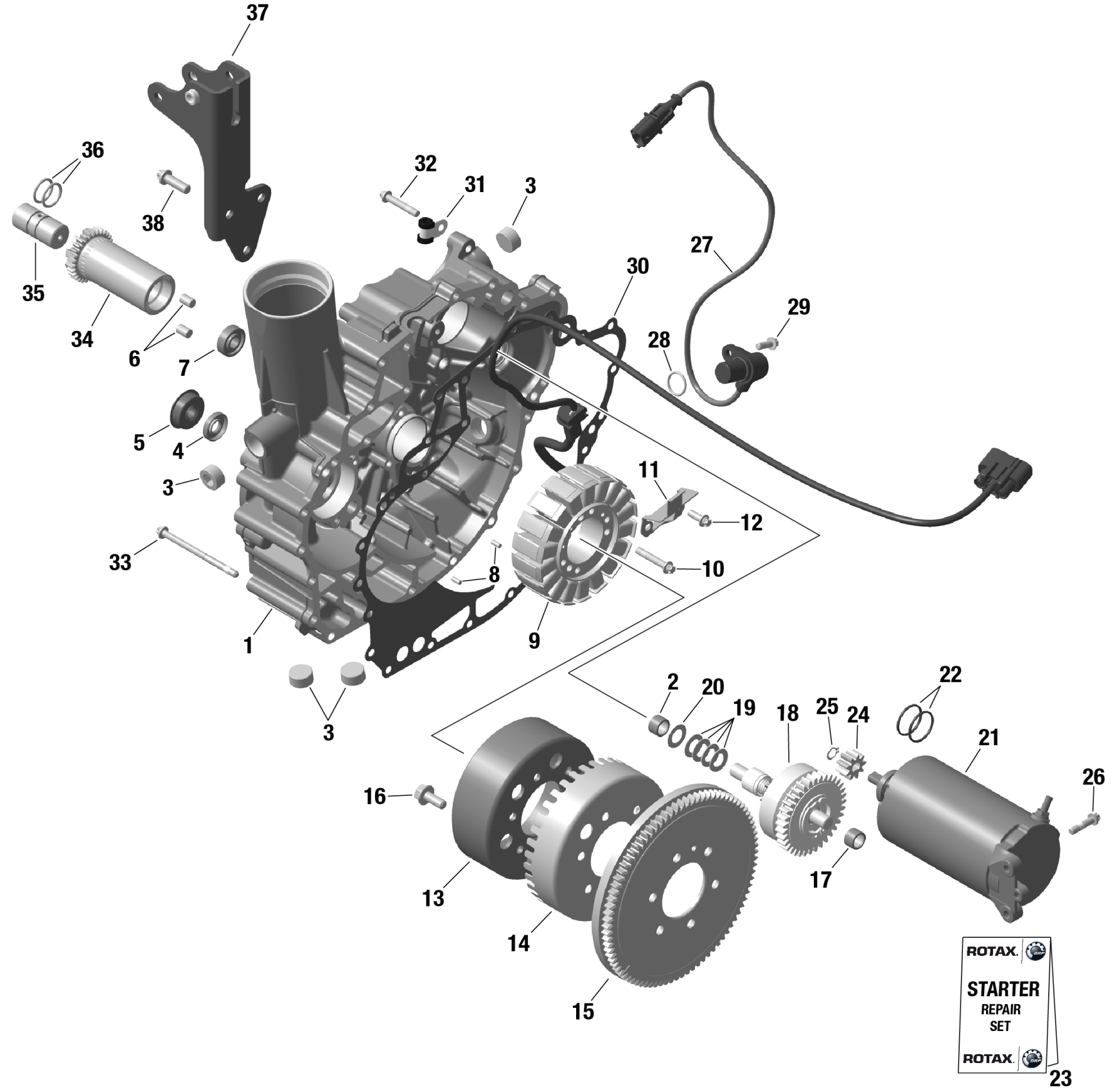

Sea-doo BASE 16 - 130 - 41RC - Red - Trailer Paint - CAT2B, 2024 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Timing / Drive Cover Ass'y 1603 NA | Includes no. 1-8

420912422

$550.99

2

Needle Bushing

420232482

$20.99

3

Plug Screw M20 X 1.5

420641317

$14.22

4

Oil Seal

420650316

$11.65

5

Rotary Seal

420650371

$43.49

6

Center Pin 8 X 12

420632010

$4.01

7

Double Sealed Bearing

420232103

$15.34

8

Needle Pin

420929070

$1.90

9

Stator Ass'y. 650W

420685001

$319.49

10

Torx Flange Screw M6 X 35

420641258

$3.38

11

Retaining Plate

420926303

$1.39

12

Torx Flange Screw M6 X 16

420641048

$2.96

13

Magneto Flywheel

420685648

$461.99

14

Trigger Wheel

420966851

$18.49

15

Starter Gear, 86 Teeth

420835163

$309.99

16

Hex Screw

295501162

$15.28

17

Needle Bushing

420232482

$20.99

18

Starter Drive

420888041

$274.99

19

Spring Disk | Includes no. 18-19

420238307

$28.49

19

Spring Washer

420238300

$7.41

20

Thrust Washer

420827280

$8.47

21

Electric Starter Ass'y | Includes no. 20-21

420888995

$265.99

22

O-Ring

420631310

$4.44

23

Carbon Brush Set

420881340

$67.99

24

Starter Gear, 9 Teeth

420834522

$74.99

25

Retaining Ring

420845601

$4.55

26

Torx Flange Screw M6 X 25

420641238

$3.27

27

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

28

O-Ring

420431580

$14.83

29

Torx Flange Screw M6 X 16

420641048

$2.96

30

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$23.49

31

Clamp

420853414

$18.49

32

Torx Flange Screw M6 X 35

420641258

$3.38

33

Torx Flange Screw M6 X 85

420641228

$7.41

34

Input Shaft

420820462

$119.99

35

Spacer

420244034

$20.99

36

O-Ring

420250056

$0.77

37

BRACKET - Call your local BRP dealership

420851545

Unavailable

38

Torx Flange Screw M8 X 25

420641248

$5.82
