06- HULL - Central Float Deflector

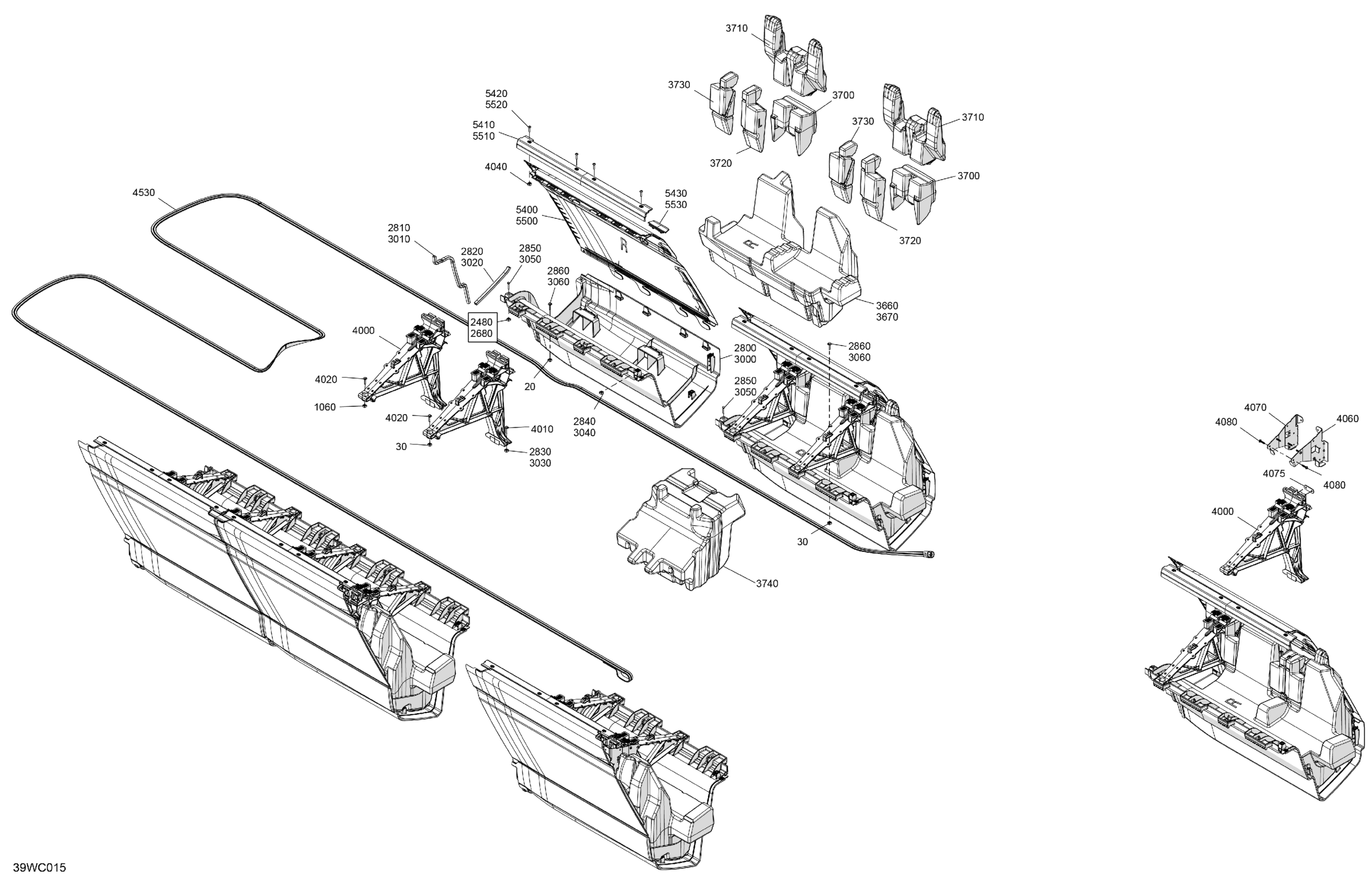

Sea-doo North America - BASE 16 - 130 - 41PK - Blue - Trailer Paint - CAT2B, 2023 06- HULL - Central Float Deflector Diagram
#
20
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
30
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
1060
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2480
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2680
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2800
LH Central Deflector Float
291006185
$299.99
2810
Gasket
292002677
$30.99
2820
Gasket
292002677
$30.99
2830
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2840
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
2850
Hex Screw SEMS M6X35, SS
250000969
$2.11
2860
Hex Screw SEMS M6X35, SS
250000969
$2.11
3000
RH Central Deflector Float
291006186
$299.99
3010
Gasket
292002677
$30.99
3020
Gasket
292002677
$30.99
3030
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
3040
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
3050
Hex Screw SEMS M6X35, SS
250000969
$2.11
3060
Hex Screw SEMS M6X35, SS
250000969
$2.11
3660
LH Central Float
292002787
$199.99
3670
RH Central Float
292002788
$199.99
3700
Lower Float Support
291005639
$11.99
3710
Upper Float Support
291005845
$20.99
3720
LH Float Support
291005637
$15.99
3730
RH Float Support
291005636
$15.99
3740
Upper Float
291006073
$76.99
4000
Interlocking Tile Support
291004895
$159.99
4010
Hex Screw SEMS M6X35, SS
250000969
$2.11
4020
Hex Screw SEMS M6X35, SS
250000969
$2.11
4040
Nut Housing M6 | Includes 555 to 555b
269502544
$6.53
4060
Reinforcement Support
291006168
$75.99
4070
Reinforcement Support
291006169
$75.99
4075
Connecting Plate
291005950
$13.49
4080
Plastite Torx Screw M6.81X30 | Not Shown
250000879
$2.11
4530
Rinsing Hose 1091 Cm
291005857
$86.99
5400
Off White, LH Central Panel
291004844
$184.99
5410
Central Panel Trim
291006170
$74.99
5420
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5430
Trim Cap
291005383
$11.99
5500
Off White, RH Central Panel
291004846
$184.99
5510
Central Panel Trim
291006170
$74.99
5520
Screw-Torx Truss Cone Head M6X25
250001116
$4.12
5530
Trim Cap
291005383
$11.99
