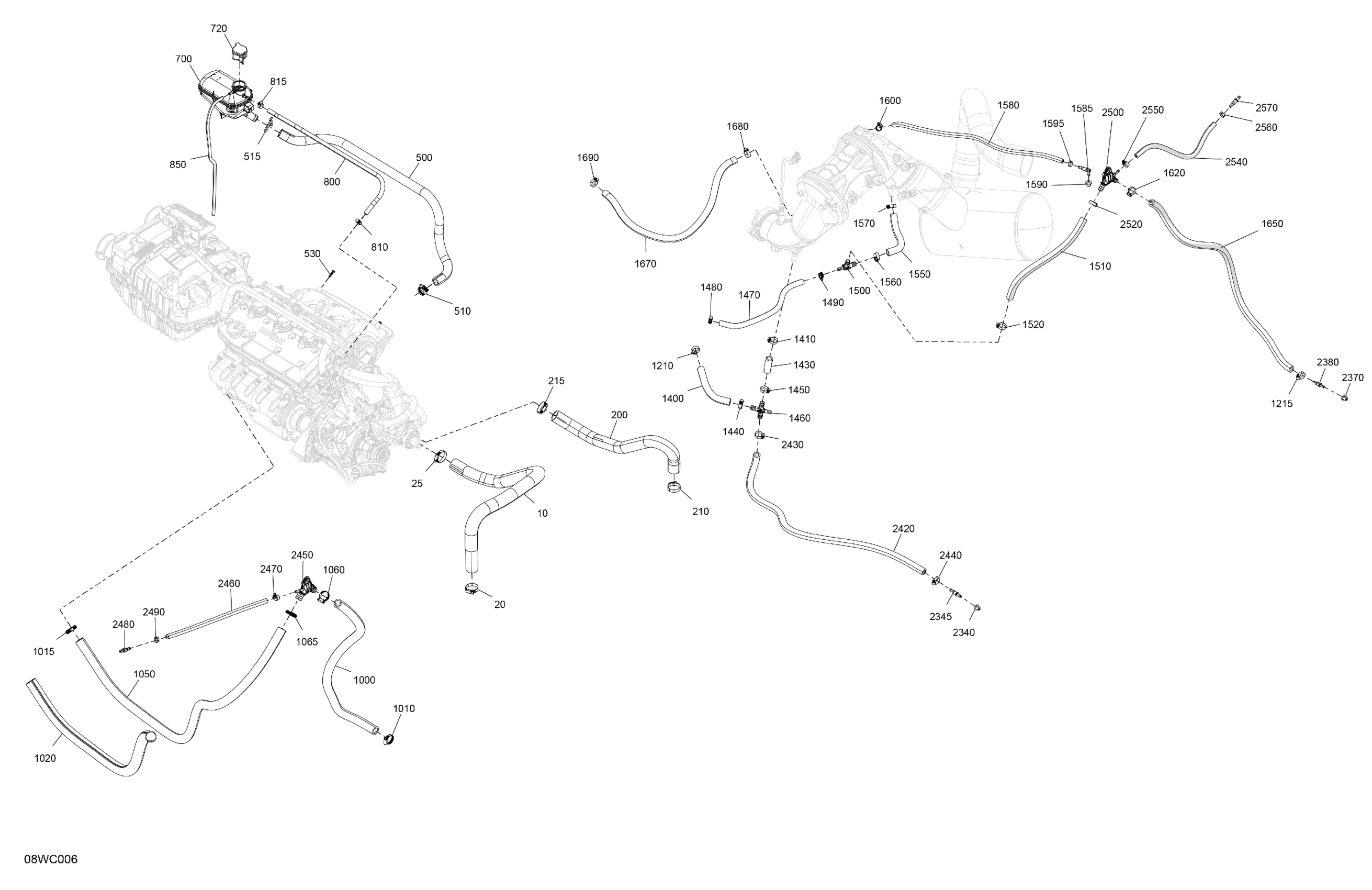

Sea-doo BASE 16 - 130 - 41PK - Blue - Trailer Paint - CAT2B, 2023 MECHANICS - Cooling Diagram

#

Description
Price

10

Hose

276000516

$51.97

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

200

Formed Hose

276000517

$45.47

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

500

Coolant Tank Hose

276000523

$31.17

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

530

Hex. Flange Screw K50 X 20

241152060

$1.57

700

Coolant Tank

276000419

$94.22

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

800

Hose 6,4 MM ID

276000425

$7.37

810

Gear Clamp

293650287

$1.74

815

Gear Clamp

293650287

$1.74

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

1000

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

1010

Gear Clamp

293650284

$3.61

1015

Gear Clamp

293650284

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1050

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

1060

Gear Clamp

293650284

$3.61

1065

Gear Clamp

293650284

$3.61

1210

Clamp Gear

293650285

$2.68

1215

Clamp Gear

293650285

$2.68

1400

Was 276000001 Hose 12.5 mm

219704394

$42.87

1410

Clamp Gear

293650285

$2.68

1430

Was 276000001 Hose 12.5 mm

219704394

$42.87

1440

Clamp Gear

293650285

$2.68

1450

Clamp Gear

293650285

$2.68

1460

Fitting

276000545

Unavailable

1470

Was 509000407 Hose 8 mm

219704420

$40.27

1480

Clamp Gear

293650285

$2.68

1490

Clamp Gear

293650285

$2.68

1500

T-Fitting

293710174

Unavailable

1510

Hose

276000212

$19.20

1520

Clamp Gear

293650285

$2.68

1550

Was 276000001 Hose 12.5 mm

219704394

$42.87

1560

Clamp Gear

293650285

$2.68

1570

Clamp Gear

293650285

$2.68

1580

Hose 6,4 MM ID

276000425

$7.37

1585

Elbow Male Connector

414580600

$3.50

1590

Grommet

293720029

$1.13

1595

Oetiker Gear Clamp

293650025

$2.46

1600

Clamp Gear

293650285

$2.68

1620

Clamp Gear

293650285

$2.68

1650

Was 276000001 Hose 12.5 mm

219704394

$42.87

1670

Was 276000001 Hose 12.5 mm

219704394

$42.87

1680

Clamp Gear

293650285

$2.68

1690

Clamp Gear

293650285

$2.68

2340

Grommet

293720029

$1.13

2345

Straight Fitting

293710133

$13.52

2370

Grommet

293720029

$1.13

2380

Straight Fitting

293710133

$13.52

2420

Was 276000001 Hose 12.5 mm

219704394

$42.87

2430

Clamp Gear

293650285

$2.68

2440

Clamp Gear

293650285

$2.68

2450

Fitting

276000547

$4.23

2460

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

2470

Gear Clamp

293650287

$1.74

2480

Male Connector

414518500

$3.50

2490

Oetiker Gear Clamp

293650025

$2.46

2500

Fitting

276000548

$5.52

2520

Clamp Gear

293650285

$2.68

2540

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

2550

Gear Clamp

293650287

$1.74

2560

Oetiker Gear Clamp

293650025

$2.46

2570

Male Connector

414518500

$3.50
