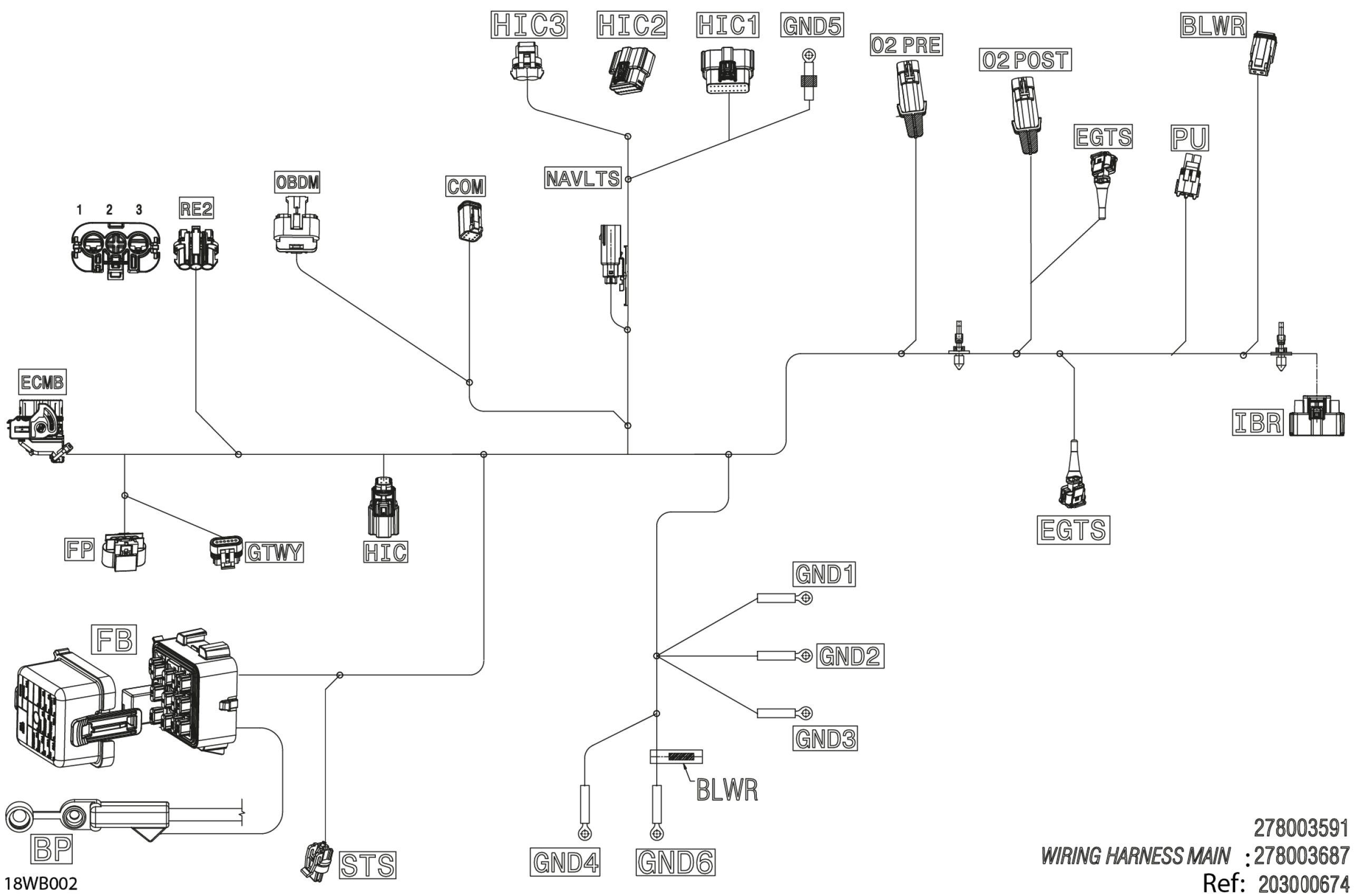

Sea-doo BASE 16 - 100 - 43NB - Blue - CAT 2A, 2022 ELECTRIC - Main Harness - 278003687 - Cat Diagram

#

Description
Price

1000

Main Wiring Harness

278003687

Unavailable

BLWR

Amphenol Female Connector 2 Cavities

515178579

$9.66

BLWR

Amphenol Lock Connector

515178580

$3.66

BLWR

Terminal

278003855

$12.22

BP

Positive Cable

278003888

Unavailable

COM

Female Housing 6 Circuits

710002706

$16.22

COM

Lock

710002705

$3.61

COM

Terminal

278003855

$12.22

COM

Female Terminal

710005438

$3.88

COM

Female Terminal

710005439

$4.15

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB

Plug

710001593

$2.06

ECMB

Plug

710001592

$2.06

ECMB

Female Terminal

710001590

$1.69

ECMB

Female Terminal

710001727

$2.55

ECMB

Female Terminal

710001589

$1.79

EGTS

Housing

710001136

$10.47

EGTS

Seal

415128501

$1.51

EGTS

Female Terminal

710001137

$3.73

FB

Fuse Box Cover

278003724

Unavailable

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Fuse Base Ass'y

278003448

$26.62

FB

Seal Plug

278002880

$5.43

FB

Relay 30 Amp

278003828

$9.78

FB

Wire Seal

278000218

$3.48

FB

Wire Seal

710000048

$5.10

FB

Wire Seal

278001065

$5.85

FB

Female Terminal

515177177

$4.96

FB

Female Terminal

710000918

$5.10

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Lock

710001222

$1.68

FP

Wire Seal

278002186

$4.51

FP

Female Terminal

278002187

$5.04

GND1

Open Barrel

278000992

$1.79

GND2 (ST)

Open Barrel Terminal

278001392

$4.00

GND3

Open Barrel Terminal

278001392

$4.00

GND4

Open Barrel Terminal

278001392

$4.00

GND5

Open Barrel Terminal

278001392

$4.00

GND6 (ST)

Open Barrel Terminal

278001392

$4.00

GTWY

Female Terminal Housing 6 Circuits

278002299

$8.58

GTWY

Female Terminal

278001114

$2.55

GTWY

Female Terminal

710001119

$4.32

HIC

Female Housing, 4 circuits

278003535

$24.60

HIC

Female Terminal

515178014

$1.92

HIC

Female Terminal

515178018

$0.78

HIC1

Female Housing 20 Circuits

278002858

$20.12

HIC1

Sealing Cap

278002860

$1.42

HIC1

Female Terminal

515178014

$1.92

HIC1

Female Terminal

515178018

$0.78

HIC2

Connector Molex Mx150 16 Pos

710005979

Unavailable

HIC2

Sealing Cap

278002860

$1.42

HIC2

Female Terminal

515178014

$1.92

HIC2

Female Terminal

515178018

$0.78

HIC3

Housing

710001157

$16.39

HIC3

Lock

710001323

$5.90

HIC3

Wire Seal

710001159

$5.90

HIC3

Female Terminal

710001160

$5.14

IBR

Female Housing ,16 Circuits

278003484

$14.27

IBR

Seal Plug

278002880

$5.43

IBR

Sealing Cap

278002860

$1.42

IBR

Seal

278003046

$0.74

IBR

Female Terminal

278003045

$2.34

IBR

Female Terminal

515178018

$0.78

NAVLTS

Clip

278003549

$2.01

NAVLTS

Housing 6 Circuits

278003866

$11.06

NAVLTS

Male Terminal

515178013

$2.55

NAVLTS

Male Terminal

515178293

$13.60

O2_POST

Housing

710002466

$2.90

O2_POST

Lock

710002469

$1.93

O2_POST

Seal

278001482

$2.55

O2_POST

Terminal

710000736

$5.19

O2_PRE

Housing

710002466

$2.90

O2_PRE

Lock

710002469

$1.93

O2_PRE

Seal

278001482

$2.55

O2_PRE

Terminal

710000736

$5.19

OBDM

Housing

515177151

$4.54

OBDM

Housing

278003746

$10.06

OBDM

Cap

710001225

$7.27

OBDM

Seal Wire

710001332

$2.72

OBDM

Seal

710001233

$2.55

OBDM

Terminal

710001228

$2.72

OBDM

Terminal

710001229

$2.93

PU

Male Connector, 2 Circuits

278000220

$11.02

PU

Wire Seal

278000218

$3.48

PU

Female Terminal

409007300

$0.36

RE2

Female Housing, 3 Circuits

710000879

$21.42

RE2

Seal

710000881

$14.27

RE2

Female Terminal

710000877

$6.32

STS

Female Housing, 2 Circuits

515177192

$6.32

STS

Lock

710001152

$3.48

STS

Seal Wire

710001153

$1.79

STS

Terminal

710000925

$2.55
