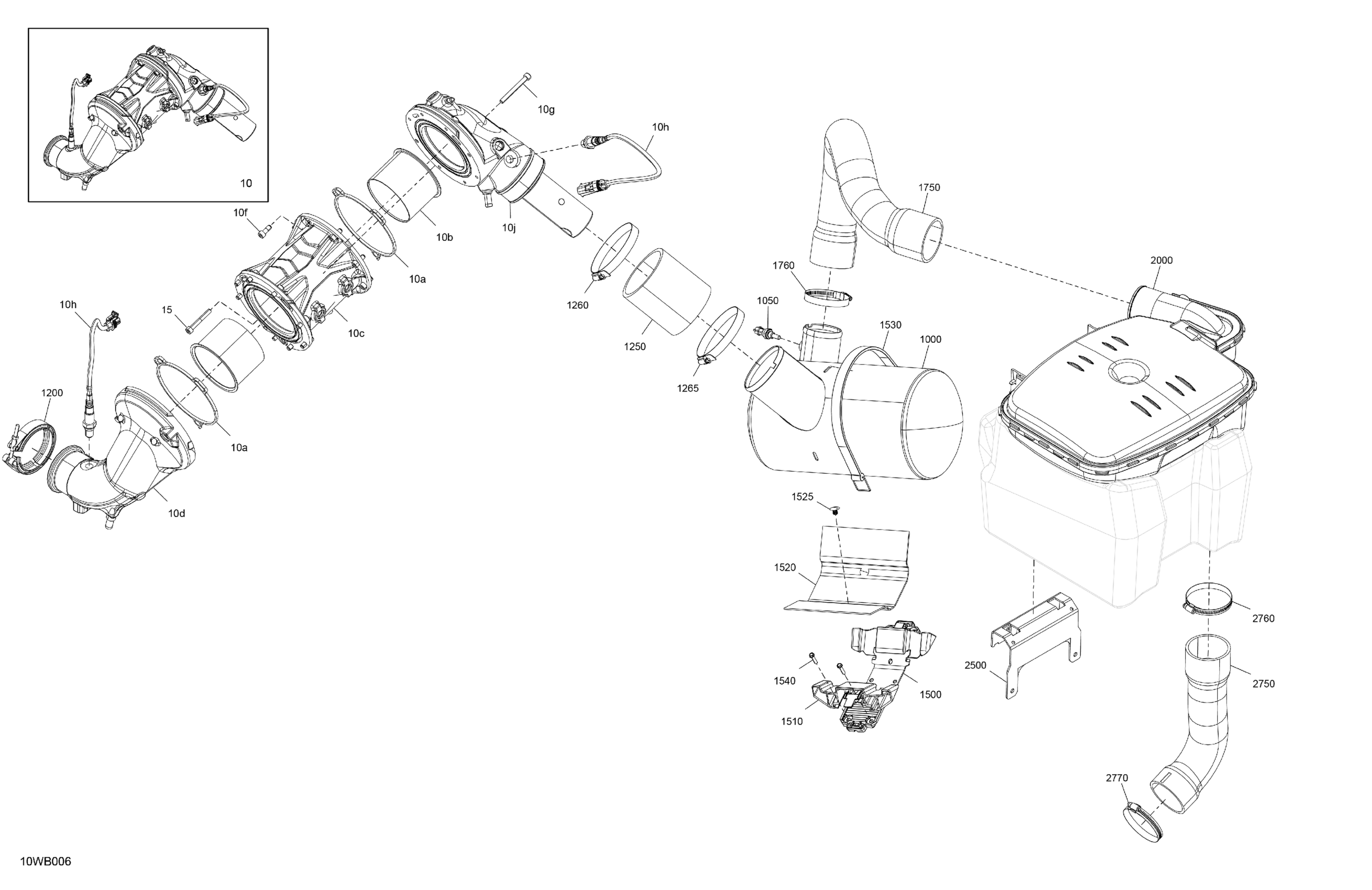

Sea-doo BASE 16 - 100 - 43NB - Blue - CAT 2A, 2022 MECHANICS - Exhaust Diagram

Description

Price

Catalyst Ass'y | Includes 10 to 10j

274001720

$3,779.99

10a

O-Ring

293300147

$13.62

10b

Catalyst

423462932

$1,867.13

10c

Center Housing Ass'y

423461944

$472.52

10d

Head Pipe

423463092

$308.72

10f

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

10g

Socket Screw M8 X 65, Scotch Grip

205586560

$14.91

10h

Oxygen Sensor

707600872

$115.67

10j

Exhaust Tail-Cone Ass'y

423463090

$905.94

Socket Head Screw M8 X 55

205085560

$3.61

1000

Muffler

274001660

Unavailable

1050

Temperature Sensor

278002895

$31.82

1200

Exhaust Clamp

274001417

$45.47

1250

Hose

274001724

Unavailable

1260

Gear Clamp This part replaces 293650281.

293650202

$12.73

1265

Gear Clamp This part replaces 293650281.

293650202

$12.73

1500

Muffler Support

293450390

$12.42

1510

Stopper

274001721

$14.27

1520

Rubber Pad

293830209

$11.38

1525

Christmas Tree Anchorage

293730113

$0.86

1530

Strap

293850120

$14.92

1540

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1750

Formed Exhaust Hose

274001734

$69.37

1760

Tridon Gear Clamp

293650244

$7.22

2000

Resonator

274001722

$126.72

2500

Bracket

292001831

$24.67

2750

Formed Exhaust Hose

274001735

Unavailable

2760

Tridon Gear Clamp

293650244

$7.22

2770

Tridon Gear Clamp

293650244

$7.22
