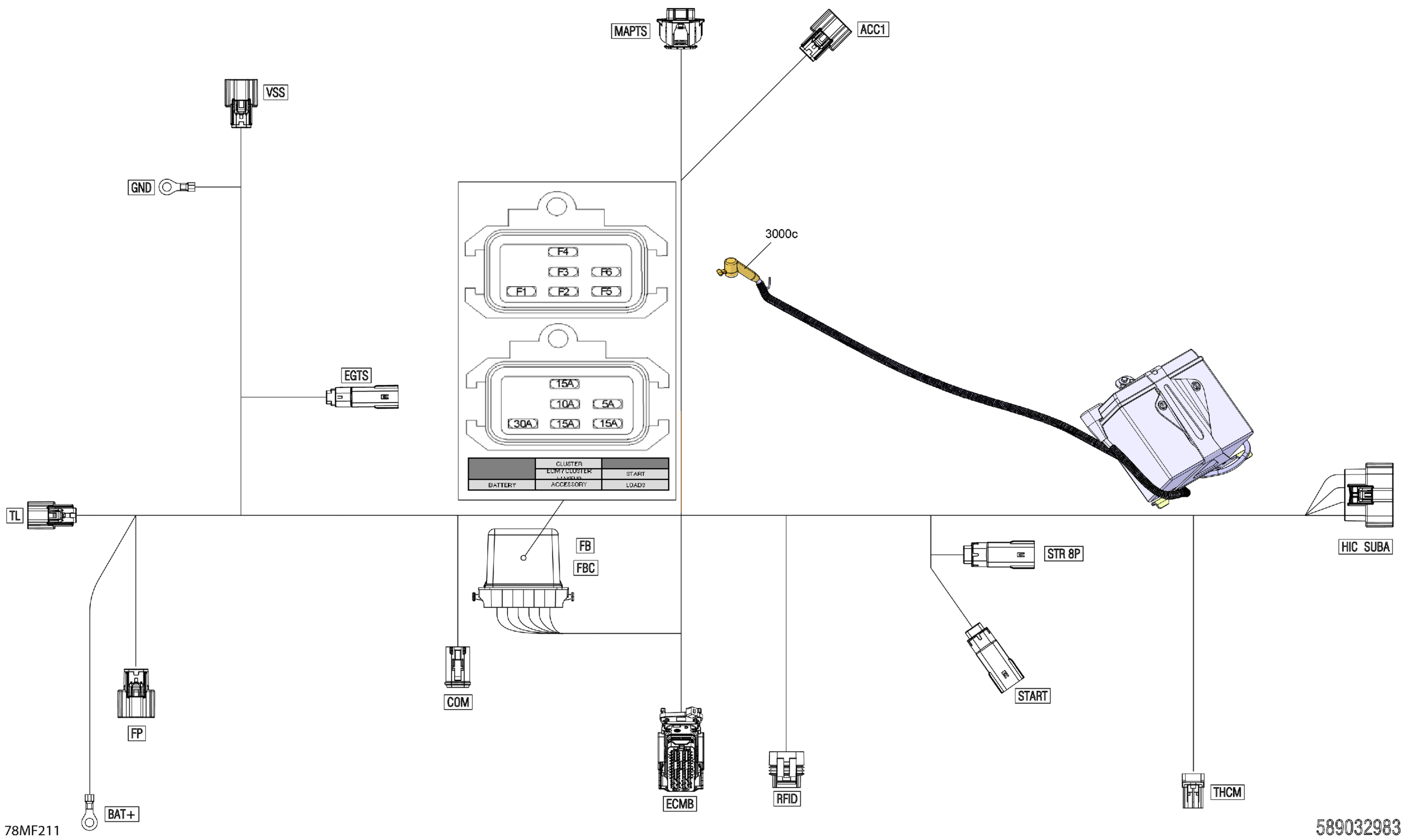

Ski-Doo North America - BACKCOUNTRY - X-RS - 850 E-TEC - UYTA - Scandi Blue - 16X146X2.0P Track - SHOT starter, 2026 08- Electric - Main Harness - 515179406 Diagram

Description

Price

3000

Chassis Wiring Harness

515179406

$309.99

3000c

Battery Cable Cap

710003583

$6.24

ACC1

Housing

515178954

$35.99

ACC1

Female Terminal

515178018

$1.19

BAT+

Shrink Tubing, 6 mm

515177246

$1.04

BAT+

Open Barrel Terminal

278001392

$4.79

COM

Female Housing 6 Circuits

710002706

$20.49

COM

Lock

710002705

$4.44

COM

Female Terminal

710005438

$4.29

COM

Female Terminal

710005439

$4.44

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

48 Circuits Female Housing

515178168

$46.49

ECMB

Plug

710001592

$2.21

ECMB

Female Terminal

710001727

$3.19

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001590

$2.09

EGTS

Clip Connector

515178223

$2.09

EGTS

2 Circuits Male Housing

515178020

$23.99

EGTS

Male Terminal

515178013

$3.19

Little Fuse, 30 Amperes

710000747

$8.49

Little Fuse, 15 Ampere

710000745

$8.49

Little Fuse, 10 Amperes

710000744

$8.79

Little Fuse, 20 Amperes

710000746

$8.49

Little Fuse, 15 Ampere

710000745

$8.49

Little Fuse, 5 Amperes

710000742

$8.79

Fuse Box Ass'y

278002285

$28.49

Seal Plug

278002880

$7.86

Wire Seal

278000218

$4.39

Wire Seal

278001065

$7.69

Wire Seal

710000048

$7.69

Female Terminal

515177177

$6.49

Female Terminal

710000918

$7.69

Female Terminal

278002578

$1.04

FBC

Fuse Box Cover

278002286

$27.49

FBC

Fuses Decal

516012025

Unavailable

Female Housing

515178474

$34.99

Female Terminal

515178018

$1.19

GND

Shrink Tubing, 6 mm

515177246

$1.04

GND

Open Barrel Terminal

278001392

$4.79

HIC SUBA

Female Molex Connector 20 Cavities

515179227

$16.49

HIC SUBA

Sealing Cap

278002860

$1.79

HIC SUBA

Female Terminal

515178018

$1.19

HIC SUBA

Female Terminal

515178014

$2.39

MAPTS

Male Connector

515176410

$51.49

MAPTS

Seal

415128501

$1.89

MAPTS

Female Terminal

710001137

$4.55

RFID

5 Circuits Male Housing Tab

278002330

$9.09

RFID

Female Terminal

710001119

$5.39

START

Clip Connector

515178223

$2.09

START

Housing

515178023

$14.74

START

Male Terminal

515178013

$3.19

STR8P

Clip Connector

515178223

$2.09

STR8P

Molex Male Connector 8 Cavities

515178907

$11.12

STR8P

Male Terminal

515178013

$3.19

THCM

Female Terminal Housing, 4 Circuit

515177048

$10.99

THCM

Lock, 4 Circuits

515177051

$10.49

THCM

Seal

515177050

$7.86

THCM

Female Terminal

515177049

$5.61

Female Housing Connector 4 Pins W/O CPA

515178346

$14.28

Female Terminal

515178018

$1.19

Female Terminal

515178014

$2.39

VSS

Housing

515178954

$35.99

VSS

Female Terminal

515178018

$1.19
