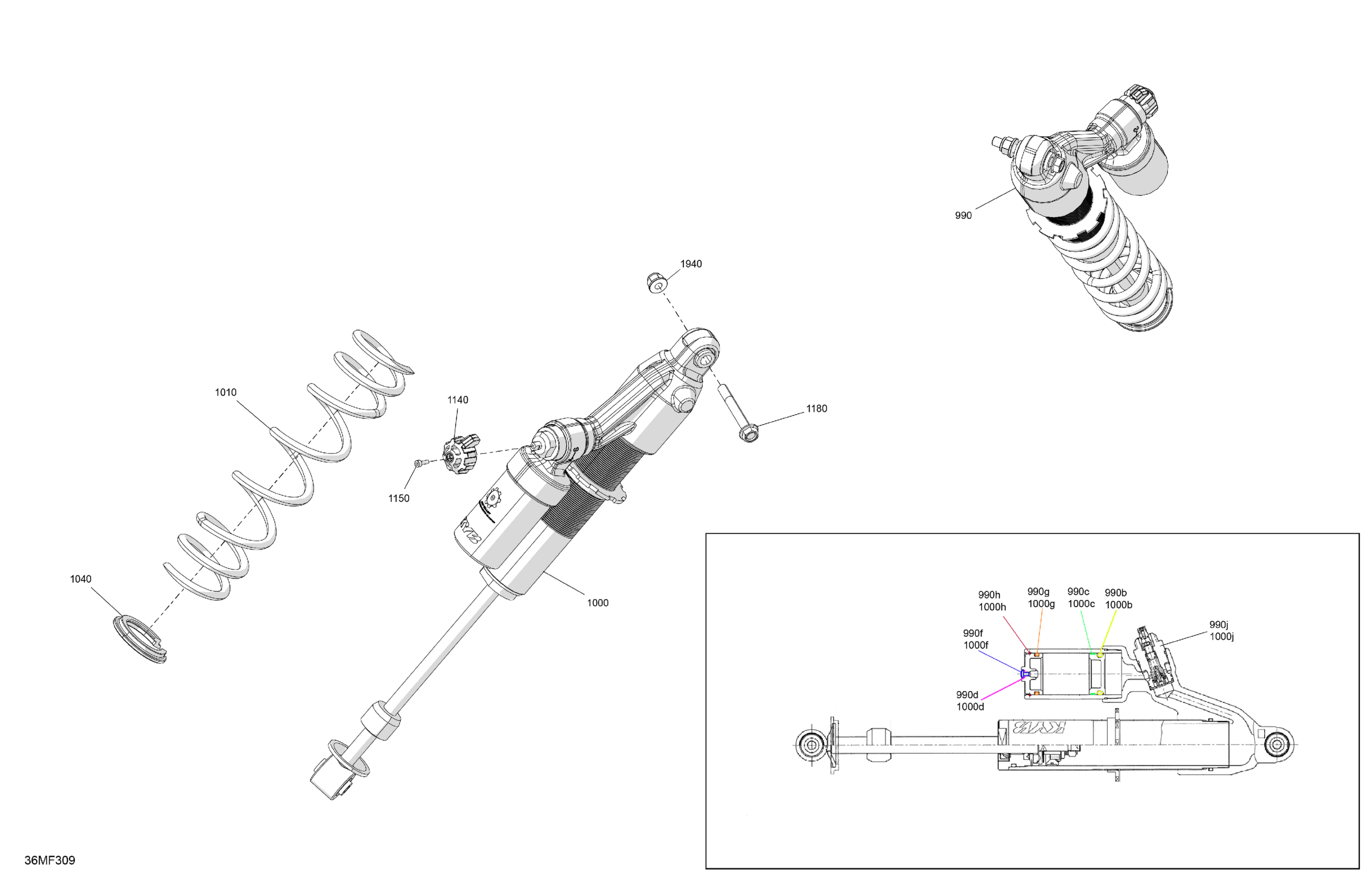

Ski-Doo North America - BACKCOUNTRY - X-RS - 850 E-TEC - UYTA - Scandi Blue - 16X146X2.0P Track - SHOT starter, 2026 05- Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock Absorber KYB PRO 36EA | Includes 990 to 990j

505075372

$812.99

990b

O-Ring

415093807

$35.99

990c

Piston Ring | Not Shown

415093806

$16.86

990d

O-Ring

505070400

$4.54

990f

Screw | Not Shown

505070399

$4.12

990g

O-Ring

415093804

$4.54

990h

Circlip - Call your local BRP dealership

715900076

$4.12

990j

Valve

503195958

$98.99

1000

LH Front Shock Absorber PRO 36EA | Includes 1000 to 1000j

505075373

$812.99

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

O-Ring

505070400

$4.54

1000f

Screw | Not Shown

505070399

$4.12

1000g

O-Ring

415093804

$4.54

1000h

Circlip - Call your local BRP dealership

715900076

$4.12

1000j

Valve

503195958

$98.99

1010

Deep Black, Spring

505074309

$67.99

1040

Spring Stopper

503194270

$19.99

1140

Adjustment Button

503196209

$2.79

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.11

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

1940

Elastic Flange Nut M8

233281466

$1.01
