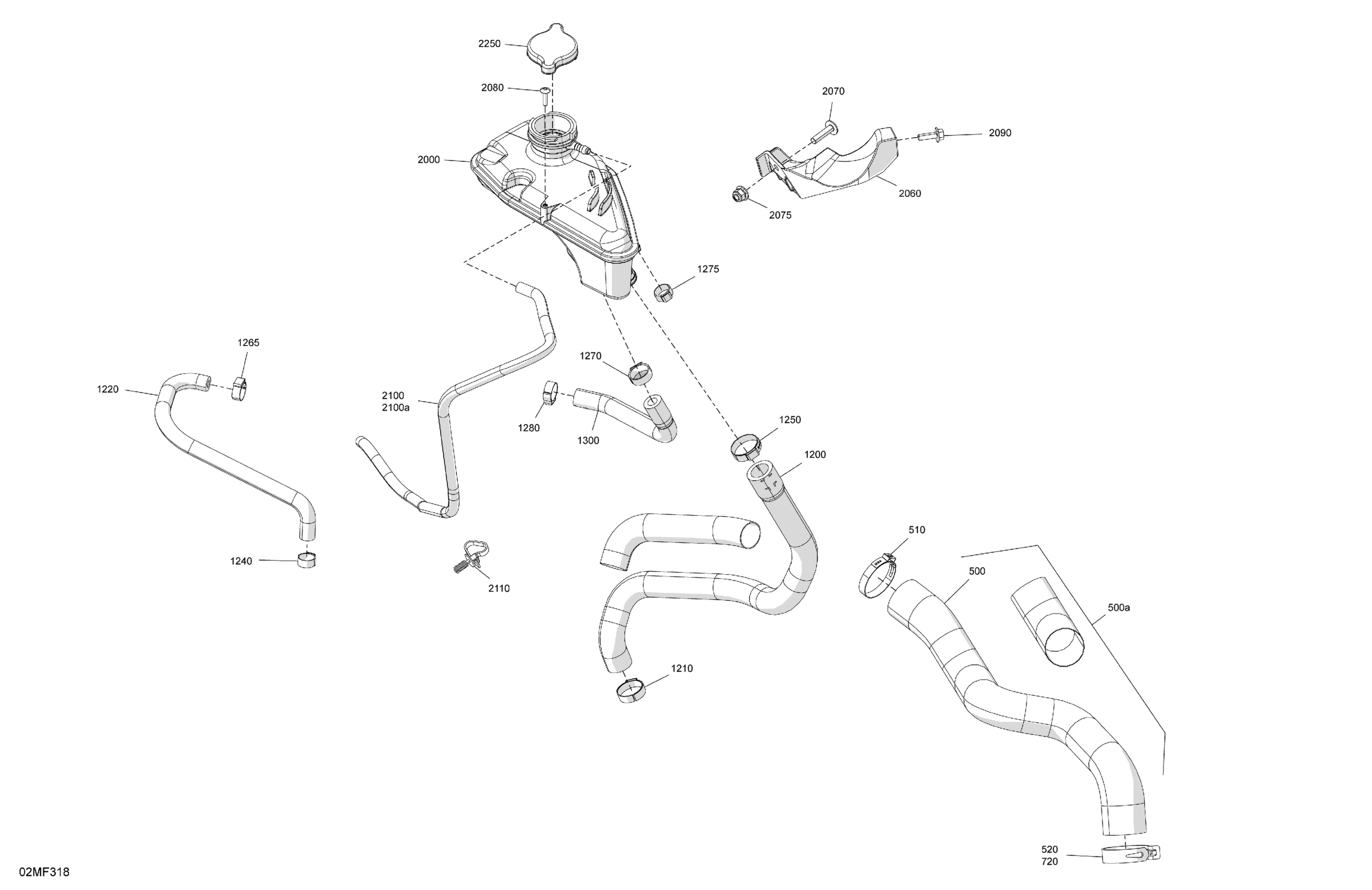

Ski-Doo BACKCOUNTRY - X-RS - 850 E-TEC Turbo R - UZT3 - Scandi Blue - 16X146X2.0P Track - SHOT starter, 2026 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$23.85

500a

Thermostat Hose | Includes 500 to 500a

509001413

$23.85

510

Oetiker Gear Clamp

293650254

$8.89

520

Norma Spring Clamp

293650264

$4.15

720

Norma Spring Clamp

293650264

$4.15

1200

Cooling Hose

509001429

$20.12

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

1220

Hose

509001438

$43.25

1240

Oetiker Clamp

293650046

$2.67

1250

Oetiker Clamp

509001041

$1.87

1265

Oetiker Clamp

293650125

$3.09

1270

Oetiker Clamp | Europe

293650030

$4.96

1275

Oetiker Clamp

293650046

$2.67

1280

Oetiker Clamp

293650125

$3.09

1300

Cooling Hose

509001422

$22.36

2000

Coolant Tank

509001314

$72.36

2060

Coolant Tank Support

509001318

Unavailable

2070

Torx Screw M6 X 25

250000758

$2.00

2075

Hex. Flange Elastic Nut M6

233261466

$1.91

2080

Torx-Truss Pt K40 X 16

250000759

$2.00

2090

Hex. Flange Screw M5 X 16

207651646

$2.00

2100

Hose Ass'y | Includes 2100 to 2100b

509001476

$43.25

2100a

Hose 6 Mm 15000Mm Long

219704360

$120.12

2100b

Heat Shield

515179201

$3.13

2110

Anchorage Tie Wrap Christmas Tree

293750099

$1.91

2250

Radiator Pressure Cap

509000180

$13.42
