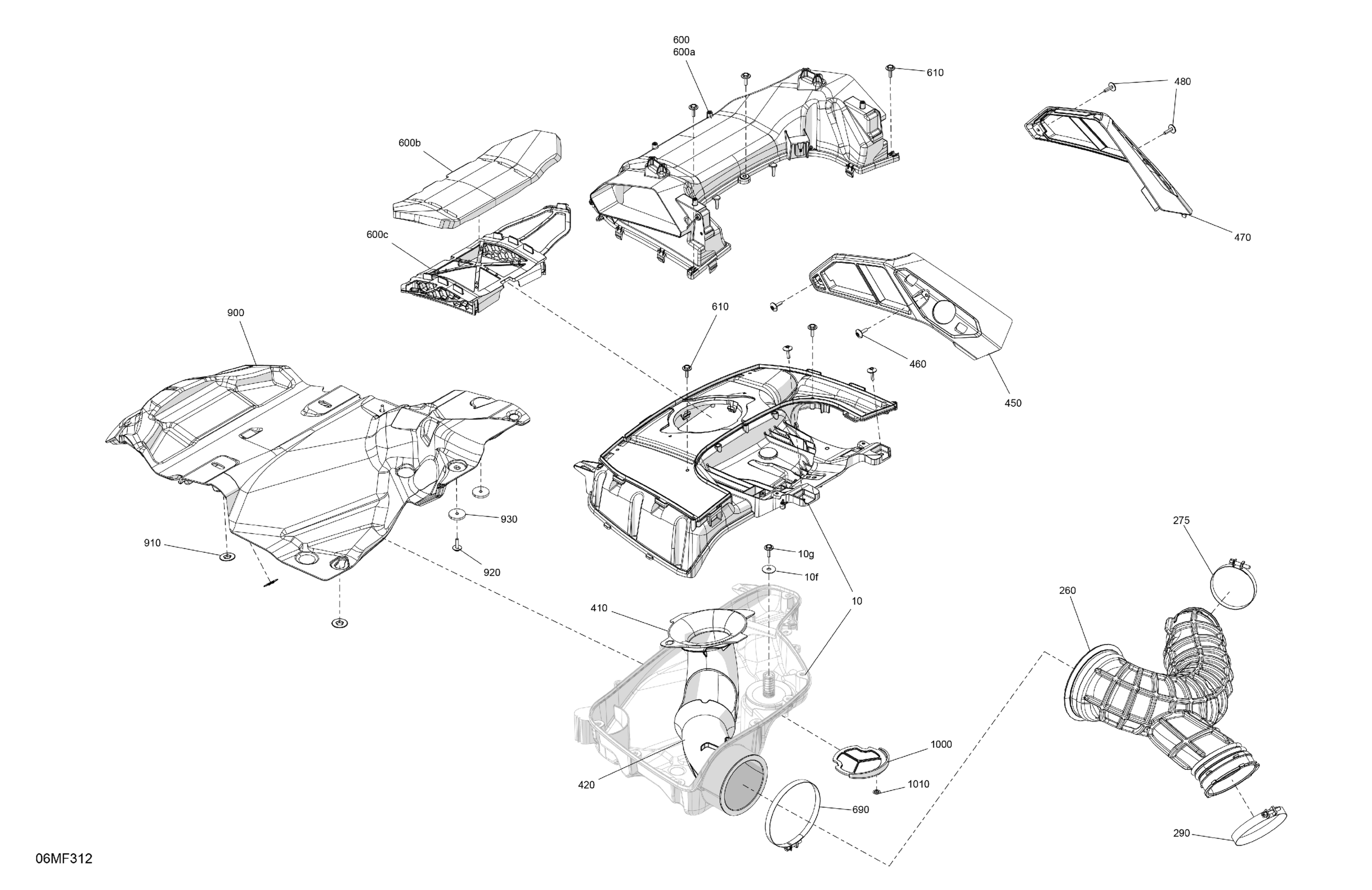

Ski-Doo BACKCOUNTRY - X-RS - 850 E-TEC Turbo R - UZT3 - Scandi Blue - 16X146X2.0P Track - SHOT starter, 2026 Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y | Includes 10 to 10g

508001363

$158.93

10f

Flat Washer

224060201

$1.12

10g

Screw M4 X 16

250000725

$3.30

260

Soft Manifold Hose

508001334

$80.57

275

Gemi Clamp

508000369

$11.18

290

Gemi Clamp

293650152

$14.13

410

Resonator Hose IN

508001132

$28.33

420

Resonator Hose OUT

508001131

$28.33

450

LH Air Filter

508001136

$31.31

460

Screw M4 X 16

250000889

$2.82

470

RH Air Filter

508001137

$39.52

480

Screw M4 X 16

250000889

$2.82

600

Upper Intake Silencer Duct Ass'y | Includes 600 to 600c

508001300

Unavailable

600a

Upper Intake Silencer Duct

508001289

$45.49

600b

Acoustic Insulation

508001224

$12.81

600c

Foam Support

508001222

$34.30

610

Screw M4 X 16

250000725

$3.30

690

Gemi Clamp

293650247

$6.07

900

Acoustic Panel

508001198

$41.01

910

Push Nut

508000853

$1.87

920

Screw M4 X 16

250000725

$3.30

930

Thermal Insulation

508001358

$1.76

1000

Pop Off Filter

508000815

$6.63

1010

Push Nut

250001189

$1.27
