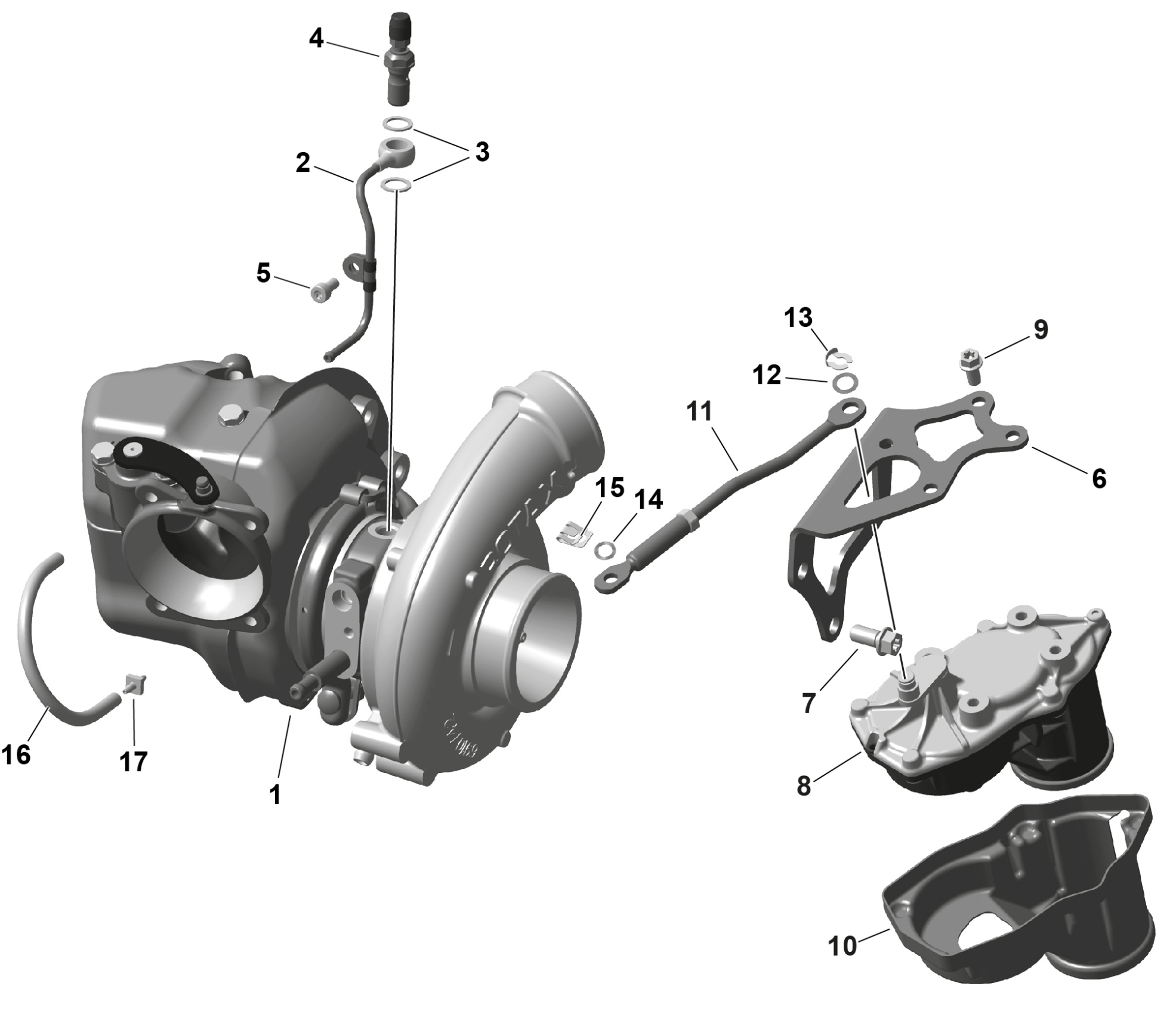

Ski-Doo North America - BACKCOUNTRY - X-RS - 850 E-TEC Turbo R - UZT3 - Scandi Blue - 16X146X2.0P Track - SHOT starter, 2026 01- ROTAX - Turbocharger Diagram

Description

Price

Turbocharger Ass'y

420893746

$1.00

Oil Line

420456453

$76.49

Oil Seal

420230154

$3.06

Bleeder Screw M10 X 1

420441630

$15.35

Allen Screw M5 X 10

420240692

$1.69

Support

420851735

$46.49

Torx Flange Screw M8 X 16

420440852

$4.12

Servo Motor Ass'y

420889432

$329.99

Hex. Flange Screw M6 X 12

420440149

$2.11

Heat Protection Mat

420975005

$14.99

Wastegate rod Ass'y

420971630

$24.99

Wave Shim 7.6/11.8/0.1

420945712

$3.17

Retaining Ring

420945710

$0.50

Wave Shim 6.4/9.8/0.1

420945713

$3.17

Circlip

420845000

$1.01

Oil Line 673MM

420201924

$9.19

Tube Connector

420922164

$7.09
