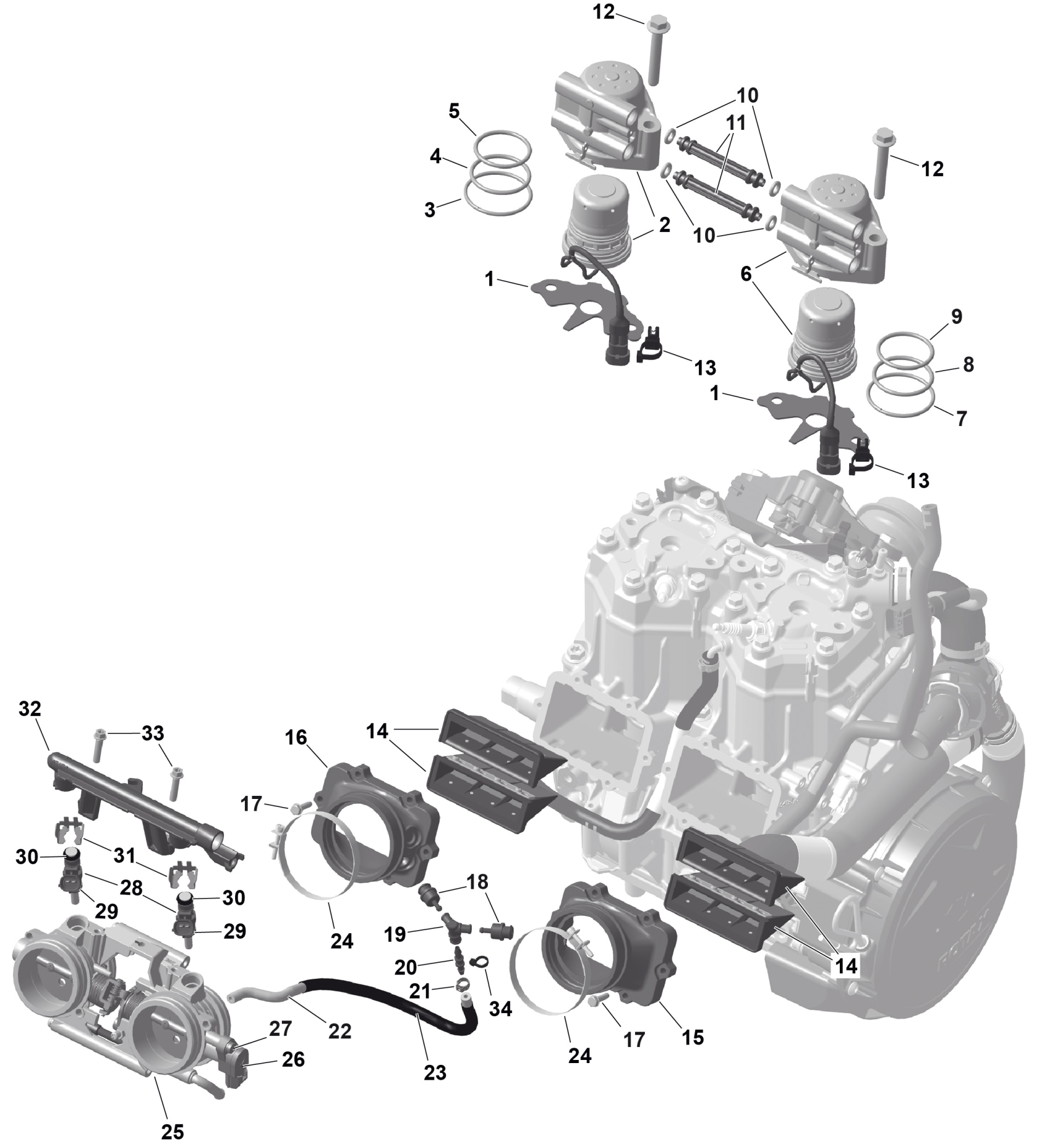

Ski-Doo BACKCOUNTRY - X-RS - 850 E-TEC Turbo R - UZT3 - Scandi Blue - 16X146X2.0P Track - SHOT starter, 2026 ROTAX - Electronic Fuel Injection Diagram

#

Description
Price

1

Isolating Plate | Included in gasket kit

420430057

$4.46

2

Fuel Injector PTO

420874876

$330.57

3

Crush Ring

415129497

$7.16

4

O-Ring

415129498

$12.13

5

O-Ring

415129499

$6.61

6

Fuel Injector MAG | Includes no. 6-9

420874878

$330.57

7

Crush Ring

415129497

$7.16

8

O-Ring

415129498

$12.13

9

O-Ring

415129499

$6.61

10

O-Ring

420430775

$3.88

11

Tube

420874190

$5.06

12

Hex Screw M9 X 60

420840097

$1.99

13

Tie Rap 200 X 4.6

420951652

$6.07

14

Reed Valve Ass'y

420924797

$38.03

15

Intake Socket Mag

420867398

$79.07

16

Intake Socket Pto

420867397

$79.07

17

Tapping Screw M5 X 20

420841556

$1.61

18

Fog Nozzle Ass'y

420262062

$28.33

19

Y-Connecting Part

420262080

$14.90

20

Tube Connector 3/16

420922169

$6.69

21

Clamp

420853653

$7.01

22

Water Hose 315

420201585

$14.90

23

Heat Protection Hose 295 +/-5 mm

420860997

$10.21

24

Clamp

420251208

$13.10

25

Throttle Body Socket | Includes no. 25-27

420685791

$317.13

26

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$64.90

27

Not Available As Spare Parts

XXX

Unavailable

28

Injection Valve | Includes no. 10-12

420874858

$155.94

29

O-Ring

420831050

$5.18

30

O-Ring

420430775

$3.88

31

Clip

420853031

$3.00

32

Fuel Rail

420874158

$22.36

33

Torx Flange Screw M6 X 25

420440234

$2.91

34

Tie Wrap 94 mm | 4X4

293750001

$0.96
