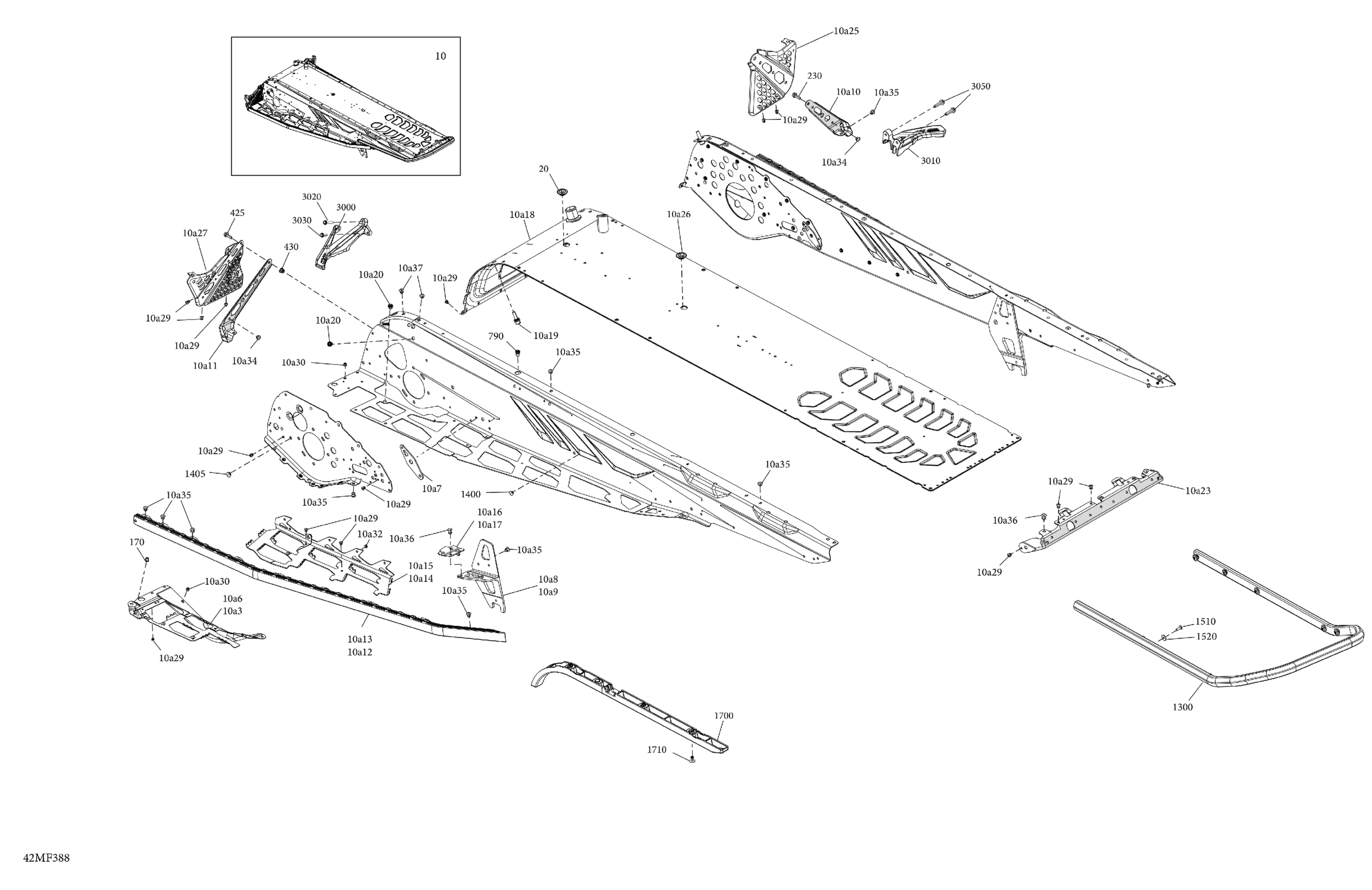

Ski-Doo BACKCOUNTRY - X - 850 E-TEC - UXTK - Tundra Green - 15X146X1.5S Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Tundra Green, Chassis Tunnel Moduel 146

415130984

$3.00

10a3

RH Footrest Reinforcement

518332578

$88.99

10a6

LH Footrest Reinforcement

518332577

$88.99

10a7

Front Suspension Arm Reinforcement

518335959

$4.19

10a8

LH Suspension Support

518336663

$45.99

10a9

RH Suspension Support

518336664

$45.99

10a10

Stirrup Reinforcement

518334507

$21.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

RH Roller

518328451

$194.99

10a13

LH Roller

518328452

$194.99

10a14

RH Footrest Reinforcement

518336064

$35.99

10a15

LH Footrest Reinforcement

518336063

$35.99

10a16

LH Reinforcement Plate

518329088

$3.39

10a17

RH Reinforcement Plate

518329089

$4.59

10a18

Radiator Tunnel 146

518335127

$739.99

10a19

Protruding Stud M8 x 22

250300652

$4.44

10a20

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a23

Rear Cap

518328990

$22.49

10a25

RH Footrest

518333006

$40.99

10a26

Black, Plug

293730052

$9.19

10a27

LH Footrest

518333858

$40.99

10a29

Rivet Avibulb 3/16

293150203

$2.09

10a30

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a32

Henrob Rivet

293150245

$1.69

10a34

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a35

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a36

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a37

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper 146

518329553

$169.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3000

LH Front Stirup

518334924

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 30

250001211

$3.91

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
