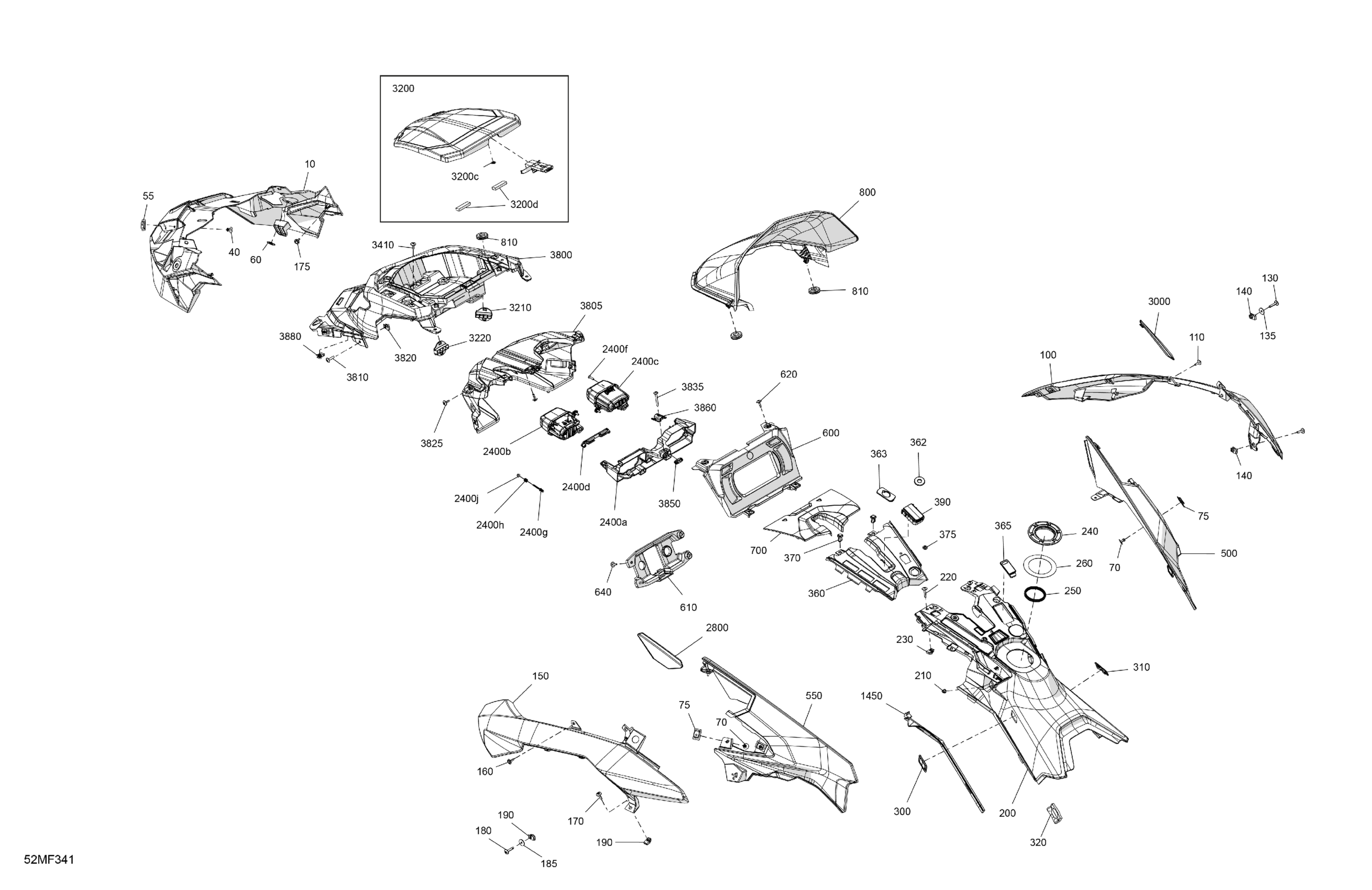

Ski-Doo North America - BACKCOUNTRY - SPORT - 600 EFI - UBTA - Neo Yellow - 16X146X2.0P Track, 2026 07- Body - Hood Diagram

#

Description
Price

10

Center Hood

517307755

$214.99

40

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

70

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

75

Rivet Plate

517305109

$4.99

100

RH Front Hood

517308642

$214.99

110

Screw M4 X 16

250000725

$3.49

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$4.23

150

LH Front Hood

517308643

$214.99

160

Screw M4 X 16

250000725

$3.49

170

Torx Screw M5 X 20

250000528

$2.11

175

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$4.23

200

Rear Console

517308760

$179.99

210

Hex. Flange Elastic Nut M5

233251414

$1.04

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

Gasket

517309450

$1.01

260

Joint

517309451

$2.49

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517309795

$31.99

362

Brake Switch Adapter

517307261

$9.19

363

Ignition Switch Adapter

517307262

$9.19

365

Cap

517308261

$1.39

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

390

Connecting Plate

517308759

$5.79

500

RH Hood

517308227

$209.99

550

LH Hood

517308228

$209.99

600

Gauge Support

517307734

$35.99

610

Gauge Support

515179104

$39.99

620

Screw M4 X 16

250000889

$3.09

640

Screw M4 X 16

250000725

$3.49

700

Access Cover

517308111

$38.99

800

Windshield 400 Mm

517309525

$23.99

810

Grommet

517303756

$4.09

1450

Molded Gasket

517308987

$5.49

2400a

Headlight Support

517309051

$14.99

2400b

Low Beam Light

710008089

$129.99

2400c

HIgh Beam Light

710006910

$129.99

2400d

Support Pivot | Not Shown

517309049

$2.79

2400f

Torx-Truss Pt K40 X 16

250000759

$2.11

2400g

Threaded Rod | Not Shown

517309133

$7.55

2400h

Compression Spring | Not Shown

517309058

$7.41

2400j

Specialized Nut | Not Shown

517309134

$1.01

2800

RH Rear Cap

517309208

$14.99

3000

LH Rear Cap

517309209

$13.49

3200

Box Cover Ass'y | Includes 3200 to 3200d

517307754

$30.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3210

Box Cap

517308260

$13.49

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Upper Fairing

517308231

$64.99

3805

Headlight Trim

517308714

$47.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3825

Screw M4 X 16

250000889

$3.09

3835

Torx Screw M5 X 40

250001286

$18.49

3850

Molded Housing Nut

517308229

$2.32

3860

Clip

517309293

$9.59

3880

Panel Nut M5 X 0.8

250000958

$4.23
