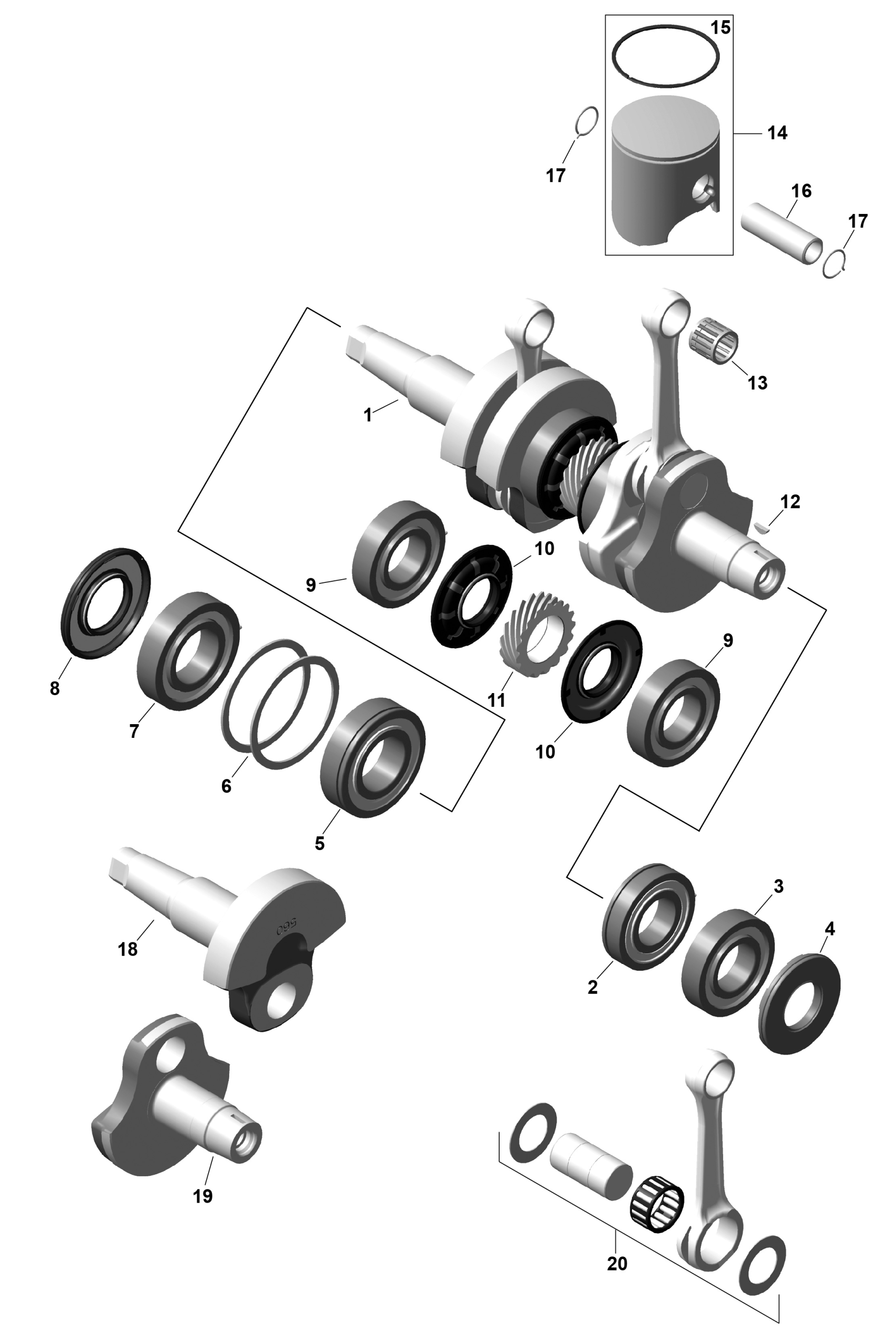

Ski-Doo North America - BACKCOUNTRY - SPORT - 600 EFI - UBTA - Neo Yellow - 16X146X2.0P Track, 2026 01- ROTAX - Crankshaft and Pistons Diagram

Crankshaft Ass'y | Includes no. 1-7; 9-12

420686890

$1.00

Ball Bearing Sealed, 6207

420832673

$101.49

Ball Bearing 6207 | With drive pin

420832575

$52.99

Oil Seal

420831955

$27.49

Ball Bearing Sealed, 6208 | With drive pin

420832672

$101.49

Washer

420926190

$11.63

Ball Bearing 6208 | With drive pin

420832600

$79.49

Oil Seal | Included in gasket kit

420931284

$23.49

Ball Bearing 6207 | With drive pin

420832575

$52.99

Oil Seal

420931455

$35.99

Central Gear

420834566

$195.99

Woodruff Key

420246015

$3.17

Needle Bearing

420832445

$27.49

Piston Ass'y | Includes no. 14-15 With ring

420893895

$228.99

Semi Trapez Ring

420815470

$68.99

Piston Pin

420916412

$30.99

Piston Circlip

420845106

$3.93

Crankshaft PTO Side

420819560

Unavailable

Crankshaft MAG Side

420819570

Unavailable

Rod Repair Kit PTO

420890738

Unavailable

Rod Repair Kit MAG

420890737

Unavailable
