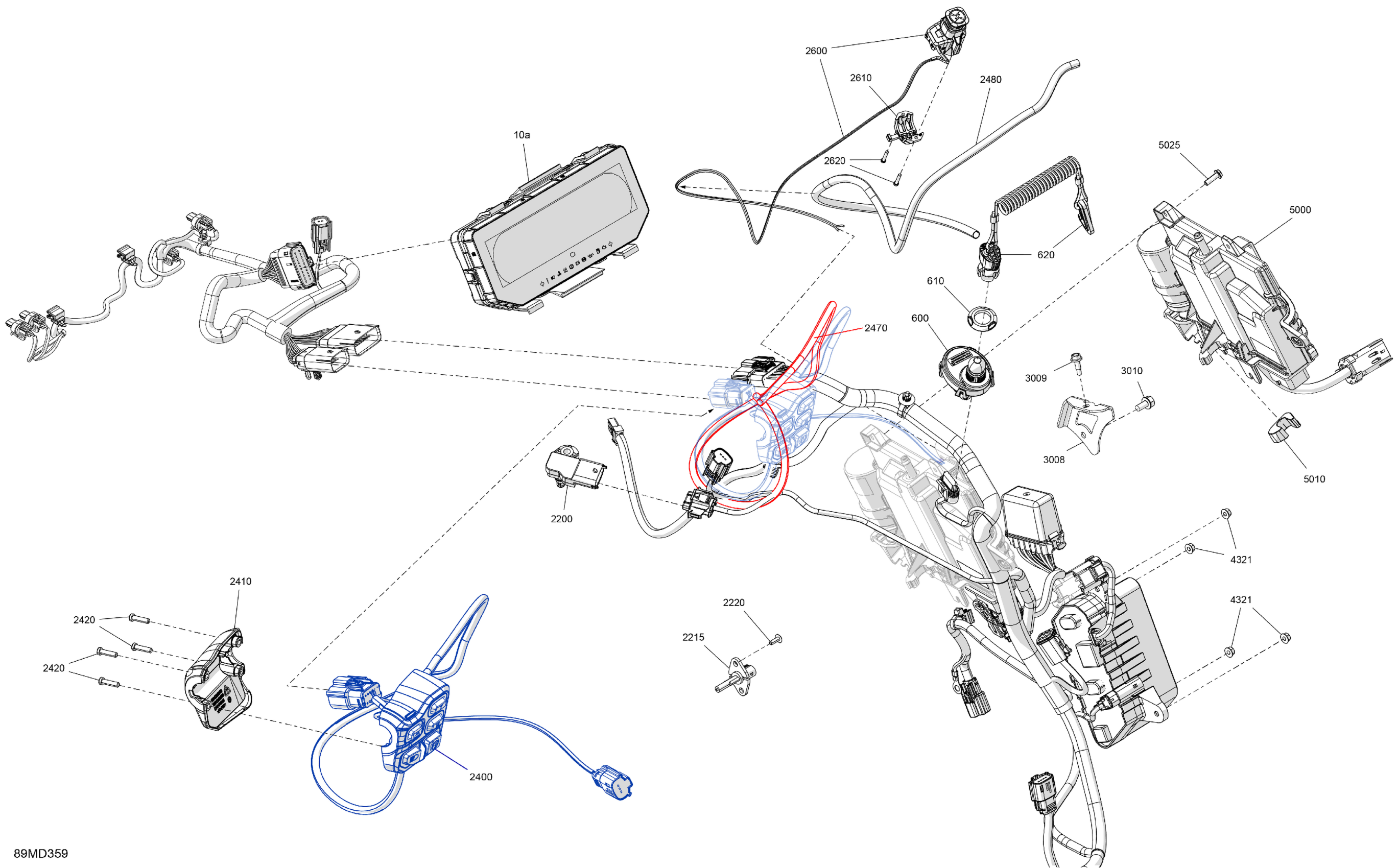

Ski-Doo North America - BACKCOUNTRY 850 E-TEC - X - UKRG - Northern Lichen - 146X15X1.6C Track, 2024 08- Electric - Upper Section Diagram

Description

Price

10a

Multifunction Gauge Full Size Mono

515178227

$559.99

600

Terminal DESS CAN | CARB Vehicle

710008832

$72.99

610

Specialized Nut

278004274

$3.28

620

Grey, Ski-Doo DESS Key

515179475

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2215

Air Temperature Sensor

515176366

$19.99

2220

Torx Truss PT K40 x 12

250001131

$2.11

2400

LH Front Multifunction Switch

515179434

$284.99

2410

Switch Cover

515179437

$13.68

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515179472

$78.49

2610

Clamp

515179182

$9.19

2620

Screw PT. Socket T10 K30 X 16

250001201

$3.39

3008

Fuse Box Support

515179281

$33.99

3009

Hex. Flange Screw M5 X 16

250000911

$0.85

3010

Hex. Flange Screw M6 X 16

250001062

$1.57

4321

Hex. Flange Nut M5

233151414

$0.55

5000

ECM Module | Includes 5000a to 5000a2

515179354

$589.99

5010

Rubber Stopper

515178430

$2.11

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00
