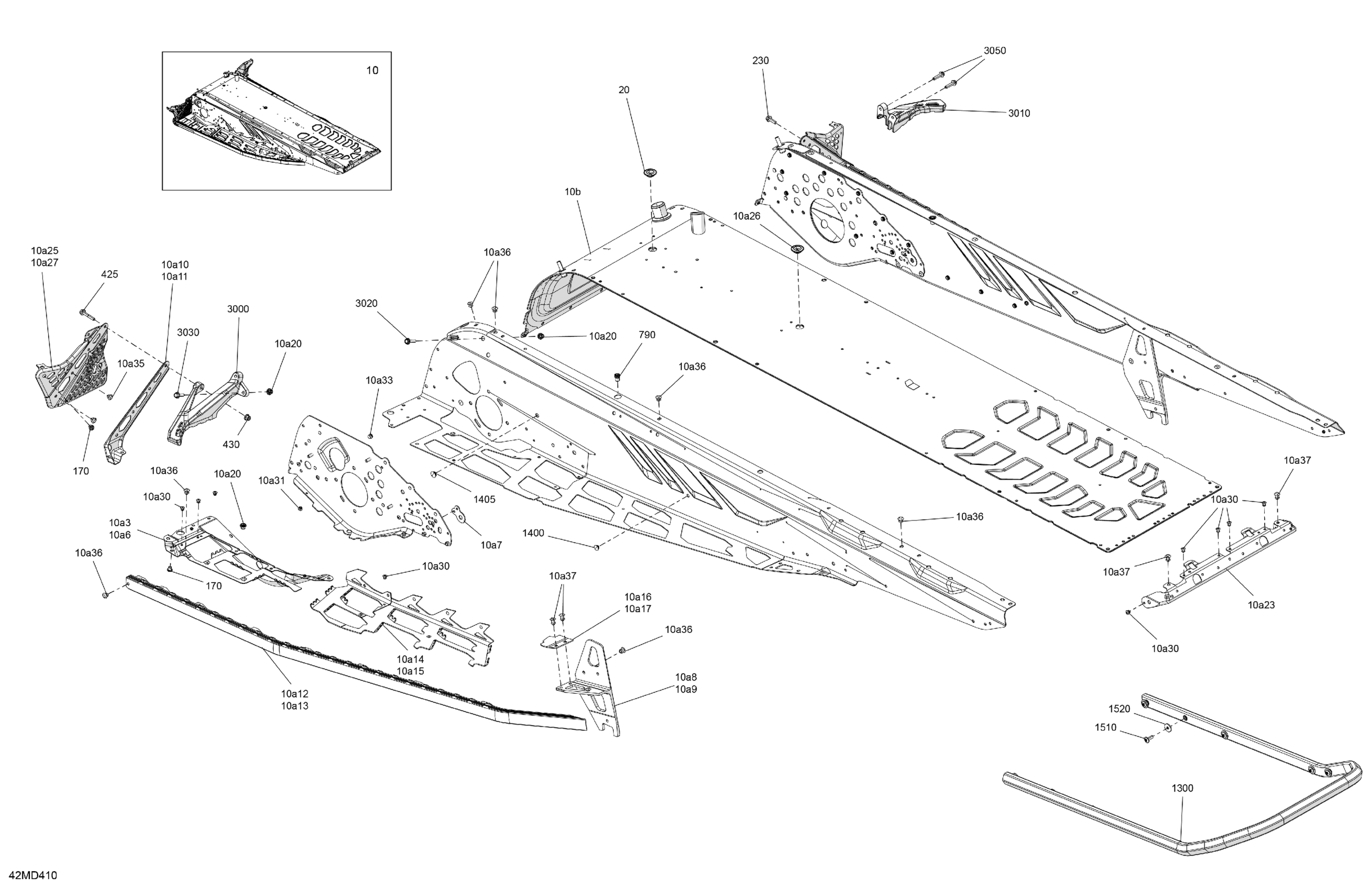

Ski-Doo BACKCOUNTRY 850 E-TEC - X - UKRC - Northern Lichen - 146X16X2.0P Track, 2024 Frame - System - Rear Section Diagram

Northern Lichen, Chassis Tunnel Module 146 | Includes 10 to 10b

415130672

$3.00

RH Footrest Reinforcement

518332578

$88.99

LH Footrest Reinforcement

518332577

$88.99

Front Suspension Arm Reinforcement

518335959

$4.19

LH Suspension Support

518334900

$45.99

RH Suspension Support

518334901

$45.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

Central Rear Tunnel Reinforcement

518334842

$35.99

LH Central Reinforcement Tunnel

518334843

$35.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Threaded Insert M6 X 1.0

250100242

Unavailable

Rear Cap

518328990

$22.49

RH Footrest

518333006

$40.99

Black, Plug

293730052

$9.19

LH Footrest

518333858

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Radiator Tunnel 146

518334489

$739.99

Black, Plug

293730052

$9.19

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 x 35

207663546

$1.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert

293450278

$4.49

Rear Bumper 146

518329553

$169.49

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

LH Front Stirup

518334924

$24.99

Toe Hold

518329134

$18.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex Screw Forming M6 x 25

250001124

$2.40
