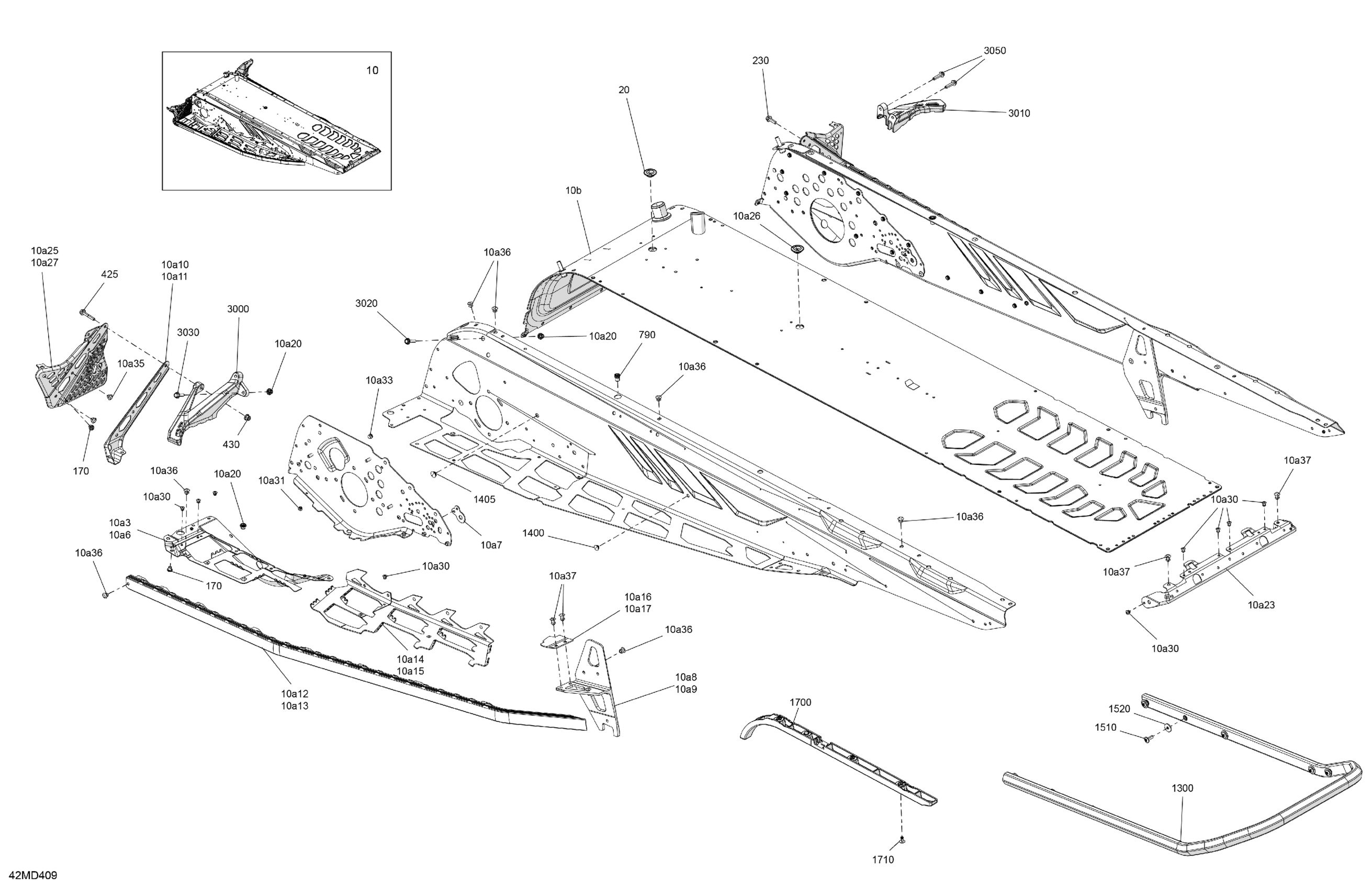

Ski-Doo BACKCOUNTRY 850 E-TEC - X-RS - UYRA - Neo Mint - 146X15X1.6C Track, 2024 Frame - System - Rear Section Diagram

Description

Price

Neo Mint, Chassis Tunnel Module 146 | Includes 10 to 10b

415130673

$2,911.16

10a3

RH Footrest Reinforcement

518332578

$79.07

10a6

LH Footrest Reinforcement

518332577

$79.07

10a7

Front Suspension Arm Reinforcement

518335959

$3.73

10a8

LH Suspension Support

518334900

$41.01

10a9

RH Suspension Support

518334901

$41.01

10a10

Stirrup Reinforcement

518334507

$17.88

10a11

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10a12

RH Roller

518328451

$175.34

10a13

LH Roller

518328452

$175.34

10a14

Central Rear Tunnel Reinforcement

518334842

$32.06

10a15

LH Central Reinforcement Tunnel

518334843

$32.06

10a16

LH Reinforcement Plate

518329088

$2.99

10a17

RH Reinforcement Plate

518329089

$4.09

10a20

Threaded Insert M6 X 1.0

250100242

Unavailable

10a23

Rear Cap

518328990

$20.12

10a25

RH Footrest

518333006

$37.28

10a26

Black, Plug

293730052

$6.18

10a27

LH Footrest

518333858

$37.28

10a30

Rivet Avibulb 3/16

293150203

$0.28

10a31

Avibulb Rivet 4.8 X 12.1

293150237

$0.28

10a33

Henrob Rivet

293150245

$1.60

10a35

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10a36

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10a37

Rivet Ornit 6,5 X 16.5

293150267

$1.88

10a38

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10b

Radiator Tunnel 146

518334489

$658.93

Black, Plug

293730052

$6.18

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

790

Insert

293450278

$3.97

1300

Rear Bumper 146

518329553

$160.42

1400

Black, Dart 8 mm

293730047

$2.07

1405

Black, Dart 10 mm

293730060

$4.28

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

3000

LH Front Stirup

518334924

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
