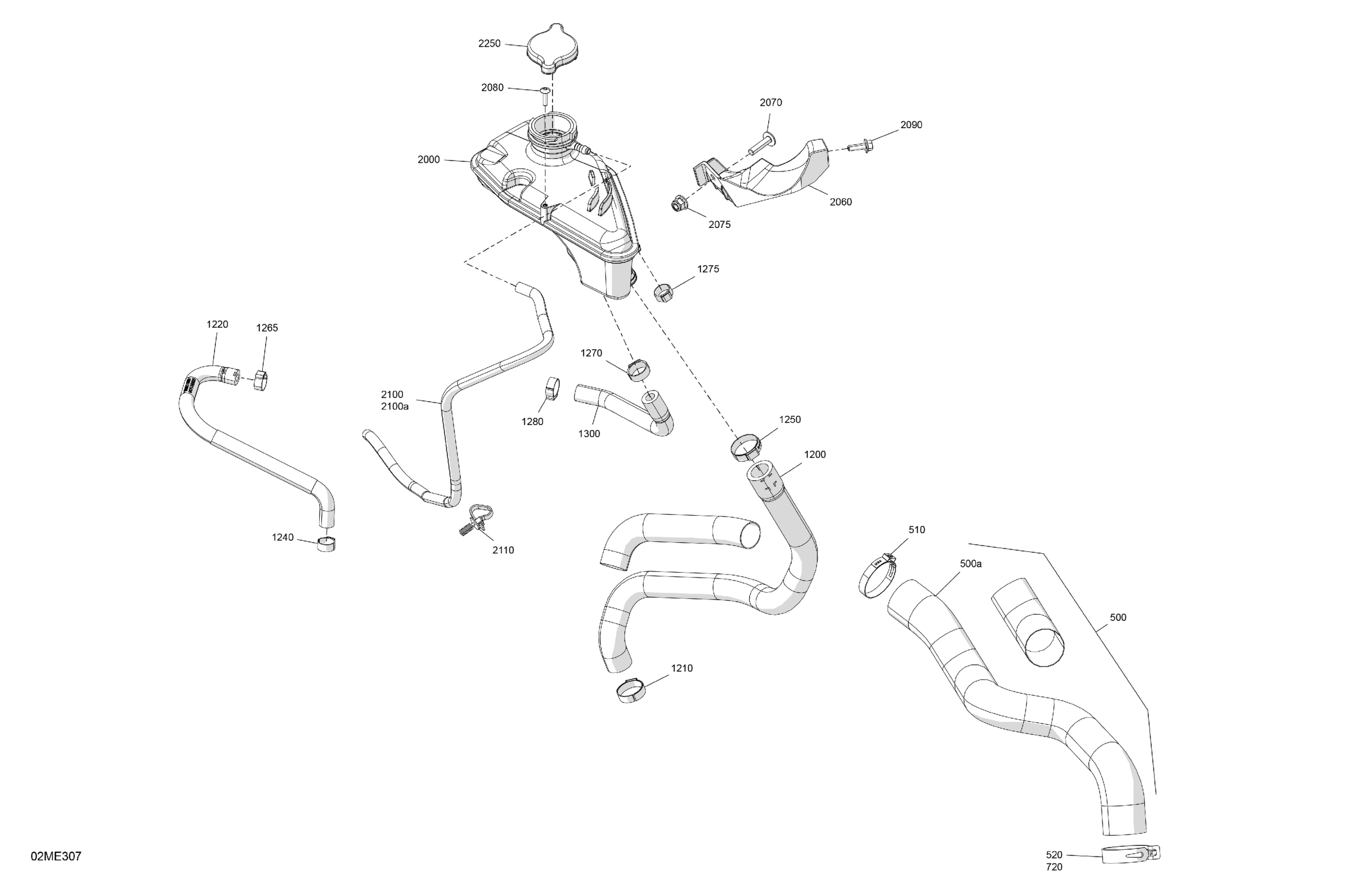

Ski-Doo BACKCOUNTRY - 850 E-TEC Turbo R - X-RS - UZS4 - Deep Black - 146X15X1.5S Track - 2025 Engine - Cooling Diagram

Description

Price

500

Thermostat Hose | Includes 500 to 500a

509001413

$24.58

500a

Not Available As Spare Parts

XXX

Unavailable

510

Oetiker Gear Clamp

293650254

$7.16

520

Norma Spring Clamp

293650264

$4.28

720

Norma Spring Clamp

293650264

$4.28

1200

Cooling Hose

509001429

$20.74

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

1220

Hose

509001438

$44.58

1240

Oetiker Clamp

293650046

$2.33

1250

Oetiker Clamp

509001041

$2.75

1265

Oetiker Clamp

293650125

$2.69

1270

Oetiker Clamp | Europe

293650030

$4.32

1275

Oetiker Clamp

293650046

$2.33

1280

Oetiker Clamp

293650125

$2.69

1300

Cooling Hose

509001422

$23.05

2000

Coolant Tank

509001314

$74.58

2060

Coolant Tank Support

509001318

Unavailable

2070

Torx Screw M6 X 25

250000758

$1.74

2075

Hex. Flange Elastic Nut M6

233261466

$1.66

2080

Torx-Truss Pt K40 X 16

250000759

$1.74

2090

Hex. Flange Screw M5 X 16

207651646

$1.74

2100

Hose Ass'y | Includes 2100 to 2100b

509001476

$44.58

2100a

Hose 6 Mm 15000Mm Long

219704360

$104.62

2100b

Heat Shield

515179201

$3.23

2110

Anchorage Tie Wrap Christmas Tree

293750099

$1.83

2250

Radiator Pressure Cap

509000180

$11.69
