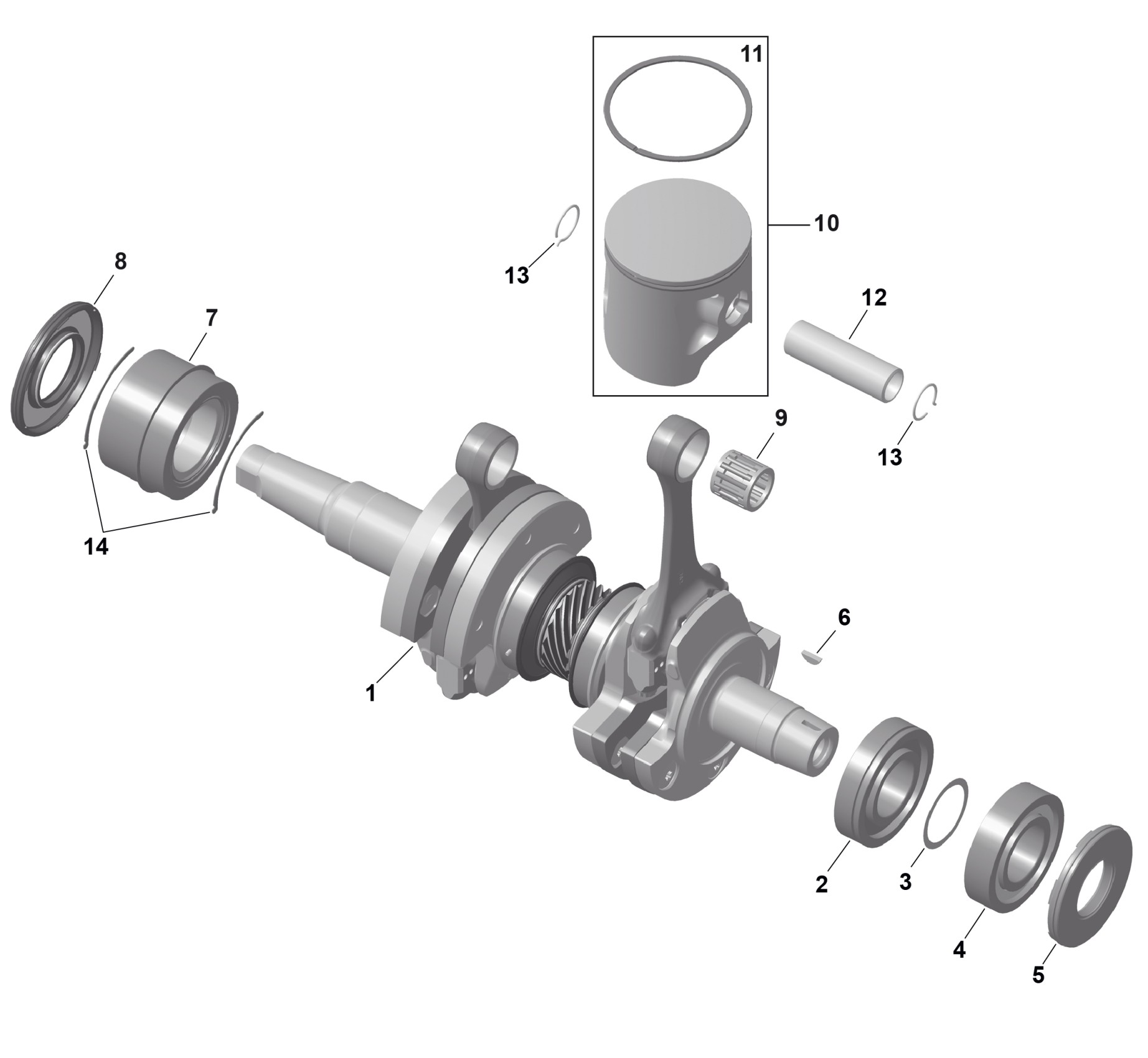

Ski-Doo North America - BACKCOUNTRY - 850 E-TEC - Adrenaline - UGSA - Catalyst Gray - 146X16X2.0P Track - 2025 01- ROTAX - Crankshaft and Pistons Diagram

Crankshaft Ass'y This part replaces 420893787.

420893982

$2.00

Bearing

420832178

$121.49

Shim 35.4/43/0.3

420927401

$3.17

Ball Bearing 6207 | With drive pin

420832575

$52.99

Oil Seal

420831955

$27.49

Woodruff Key

420246015

$3.17

Roller Bearing

420832130

$104.99

Oil Seal | Included in gasket kit

420931284

$23.49

Needle Bearing

420832030

$30.49

Piston Ass'y | Includes no. 10-11

420893797

$265.99

Semi-Trapez Ring

420815416

$75.49

Piston Pin

420916480

$35.99

Piston Circlip | Included in gasket kit

420845467

$4.25

Shim 0.5

420953130

Unavailable

Shim 0.8

420953131

Unavailable

Shim 1.0

420953132

Unavailable

Shim 1.2

420953133

Unavailable

Shim 1,4

420953134

Unavailable

Shim Kit

420481410

$23.49
