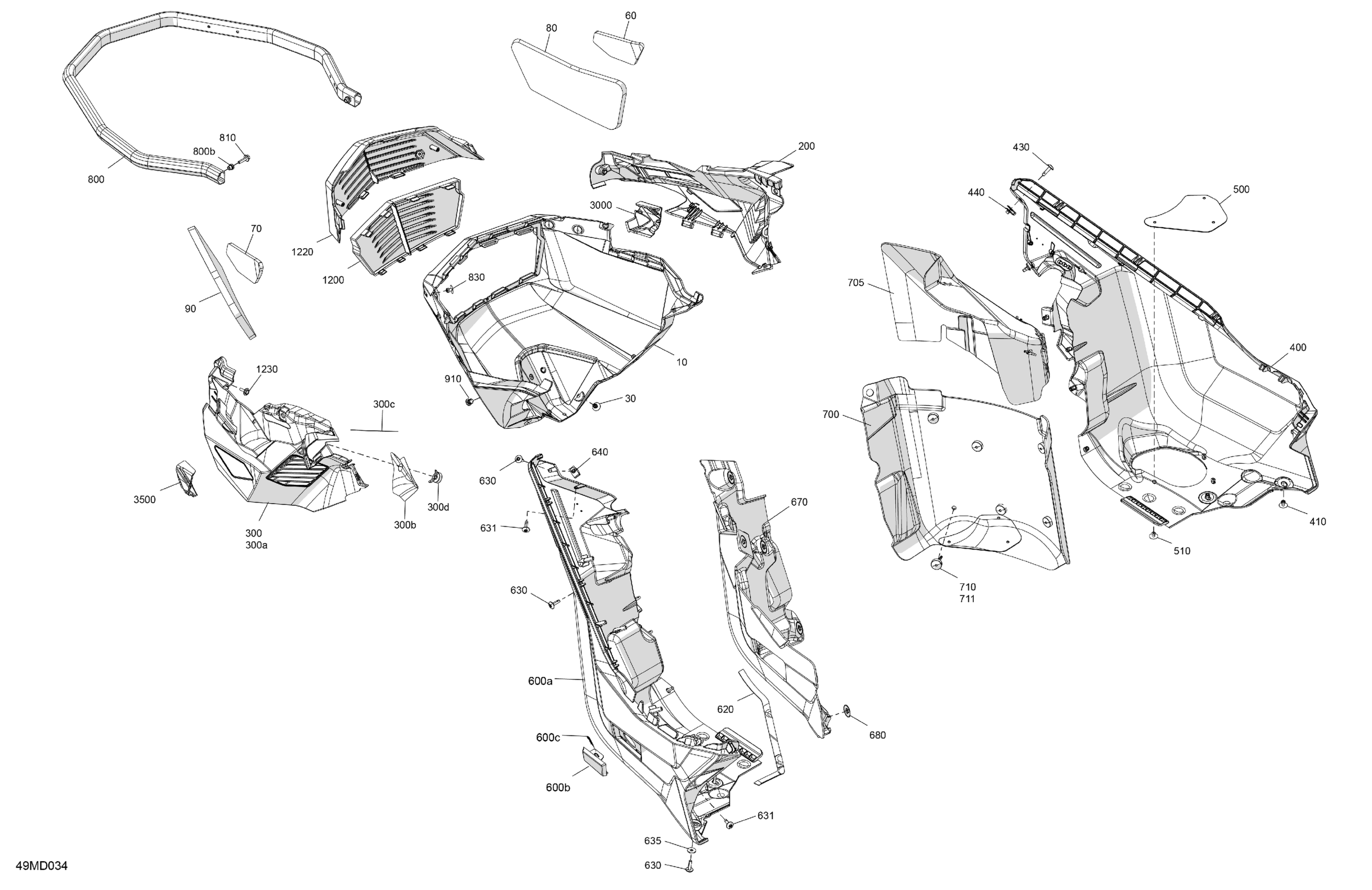

Ski-Doo BACKCOUNTRY 600R E-TEC - Adrenaline - UJRA - Deep Black - 146X15X1.6C Track, 2024 Body - Bottom Pan Diagram

#

Description
Price

10

Deep Black, Front Bottom Pan

502008525

$176.84

30

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

60

RH Front Central Bottom Pan Foam

502008308

$7.31

70

LH Front Central Bottom Pan Foam

502008309

$11.55

80

Bonded Foam

502008355

$17.13

90

Bonded Foam

502008356

$6.57

200

Deep Black, RH Bottom Pan Cap

502008264

$55.19

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008529

$111.16

300a

Deep Black, LH Bottom Pan Cap

502008265

$55.19

300b

LH Front Heat Shield

502008487

$4.40

300c

LH Front Heat Shield

502008575

$4.03

300d

Stopper

502008610

$1.88

400

Deep Black, RH Bottom Pan

502008223

$85.79

410

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

430

Torx Truss M5 X 20

250000586

$3.61

440

Panel Nut M5 X 0.8

250000958

$3.48

500

Plate

502008690

$6.07

510

Pop Rivet 3/16"

293150103

$0.52

600a

Deep Black, LH Bottom Pan

502008222

$84.30

600b

Bottom Pan Door

502008267

$44.75

600c

Hairpin Cotter

269800431

$0.97

620

Gasket, Neoprene 2000Mm Long

219704476

$12.64

630

Screw Torx M5 X 20

250001232

$1.14

631

Torx Truss M5 X 20

250000586

$3.61

635

Washer M5

250200025

$0.61

640

Panel Nut M5 X 0.8

250000958

$3.48

670

LH Lower Acoustic Panel

502008240

$41.01

680

Push Nut

508000853

$1.87

700

Acoustic Panel

502008754

$41.01

705

Acoustic Panel

502008254

$41.01

710

Stopper

502008610

$1.88

711

Stopper

502008610

$1.88

800

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$110.42

800b

Insert M5 X 0.8

293450268

$1.90

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

830

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

910

Panel Fastener

518321954

$5.85

1200

Lower Prefilter Grille

502008245

$26.84

1220

Upper Grille Prefilter

502008736

$26.84

1230

Screw M4 X 16

250000725

$2.87

3000

Deep Black, LH Front Cap

502008363

$1.24

3500

Deep Black, RH Front Cap

502008364

$1.24
