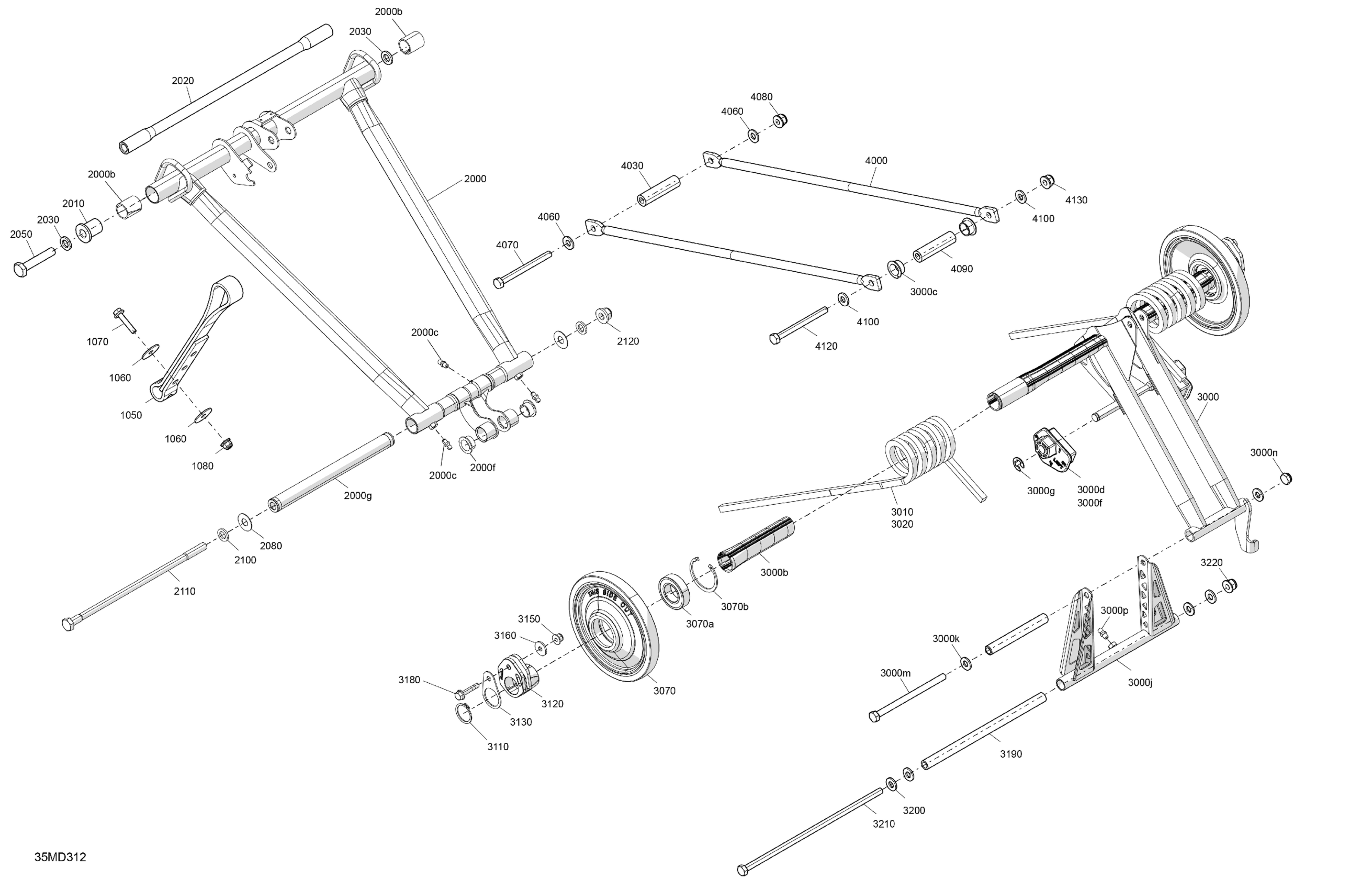

Ski-Doo BACKCOUNTRY 600R E-TEC - Adrenaline - UJRA - Deep Black - 146X15X1.6C Track, 2024 Suspension - Rear - Upper Section Diagram

Description

Price

1050

Stopper Strap

503195313

$27.66

1060

Washer | Not Shown

503193995

$4.38

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

1080

Hex. Flange Elastic Nut M6

233261466

$1.66

2000

Front Suspension Arm Ass'y | Includes 2000 to 2000g

503196240

$249.20

2000b

Extended Bushing

503191556

$5.71

2000c

Grease Fitting

408200700

$2.80

2000f

Swivel Bushing

503191555

$5.71

2000g

Lower Shaft

503196972

$69.97

2010

Bushing

503194970

$13.60

2020

Upper Shaft

503193441

$36.12

2030

Flat Washer

250200143

$2.63

2050

Hex. Screw S.Grip M10 X 55

250000605

$6.18

2080

Washer

250200032

$4.98

2100

Washer

503192496

$0.75

2110

Bolt M10 X 251MM

503193227

$16.12

2120

Flange Elastic Nut M10

233201466

$2.63

3000

Rear Suspension Arm Ass'y | Includes 3000 to 3000p

503196515

$129.20

3000b

Bushing

503193218

$9.98

3000c

Swivel Bushing

503191555

$5.71

3000d

LH Cam Adjuster

503191565

$13.95

3000f

RH Cam Adjuster

503191566

$13.95

3000g

E-Circlip

293370013

$0.62

3000j

Shackle | Includes 3000j to 3000j3

503196517

$115.35

3000k

Washer

503192494

$3.11

3000m

Hex Screw M8 X 125

250001236

$0.83

3000n

Hex. Elastic Stop Nut M8

232581414

$0.47

3000p

Grease Fitting

408200700

$2.80

3010

LH Torsion Spring

503196941

$77.66

3020

RH Torsion Spring

503196942

$77.66

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$46.12

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3110

Retaining Ring

293370080

$2.12

3120

Suspension Support

503196322

$5.06

3130

Washer

503196335

$2.18

3150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

3160

Flat Washer

224061201

$1.11

3180

Hex Flange Screw M6 X 31

250001219

$2.06

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Acceleration Link Rod

503196245

$27.66

4030

Axle

503193993

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle

503193993

$15.35

4100

Washer

503192494

$3.11

4120

Screw M8 X 90

503193372

$4.28

4130

Elastic Flange Nut M8

233281466

$0.83
