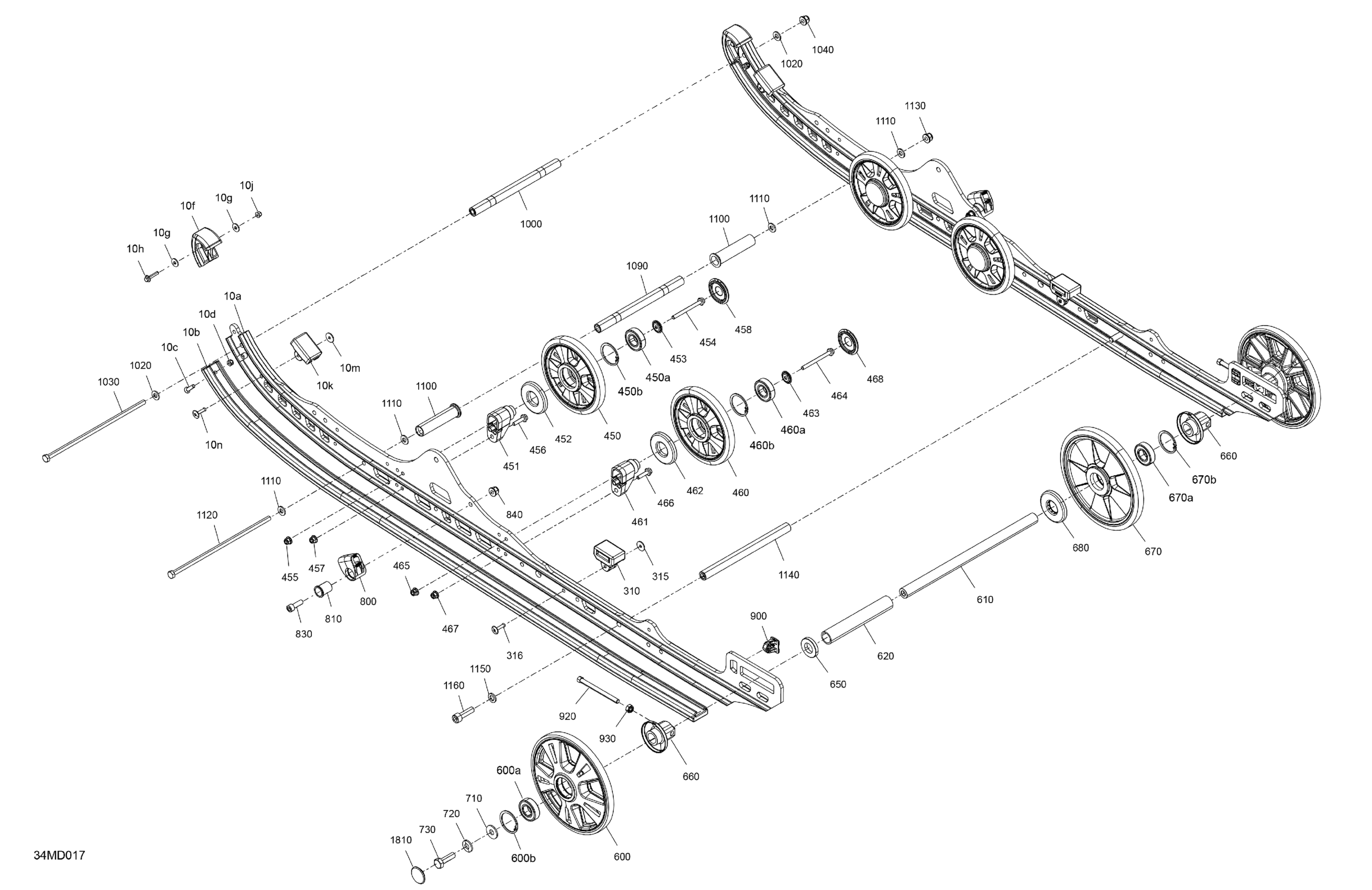

Ski-Doo BACKCOUNTRY 600 EFI - SPORT - UBRA - Neo Yellow - 146X15X1.6C Track, 2024 Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Rail Suspension 146

503196114

$216.39

10b

Black, Slider 146

503191499

$32.06

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561434

$1.78

10f

Rail Protector

503196872

$23.10

10g

Washer

250200140

$0.96

10h

Hex. Flange Screw M5 X 25

207652544

$0.48

10j

Flange Elastic Nut M5

233251434

$1.91

10k

Rubber Stopper

503190576

$9.93

10m

Washer

503191273

$1.03

10n

Rivet Ornit 4.8 X 27.5

293150256

$1.88

310

Rubber Stopper

503193504

$12.31

315

Washer

503191273

$1.03

316

Rivet Ornit 4.8 X 27.5

293150256

$1.88

450

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$44.75

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

451

Casted Support

503193894

$12.37

452

Labyrinth Seal

503190434

$4.16

453

Wheel Cup M6

503191820

$4.52

454

Hex. Flange Screw M6 X 70

250000944

$4.15

455

Hex. Flange Elastic Nut M6

233261466

$1.91

456

Hex. Flange Screw M6 X 25

250000945

$4.15

457

Hex. Flange Elastic Nut M6

233261466

$1.91

458

Black, Wheel Cap

503192771

$2.21

460

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$44.75

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

461

Casted Support

503193894

$12.37

462

Labyrinth Seal

503190434

$4.16

463

Wheel Cup M6

503191820

$4.52

464

Hex. Flange Screw M6 X 70

250000944

$4.15

465

Hex. Flange Elastic Nut M6

233261466

$1.91

466

Hex. Flange Screw M6 X 25

250000945

$4.15

467

Hex. Flange Elastic Nut M6

233261466

$1.91

468

Black, Wheel Cap

503192771

$2.21

600

Wheel 200, Black | Includes 600 to 600b

503191741

$48.48

600a

Ball Bearing | Package-STD

503190396

$8.18

600b

Retaining Ring

415129371

$8.66

610

Rear Axle

503196754

$73.85

620

Spacer

503196317

$14.90

650

Washer

503190432

$12.15

660

Rear Wheel Support

503196246

$4.69

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$48.48

670a

Ball Bearing | Package-STD

503190396

$8.18

670b

Retaining Ring

415129371

$8.66

680

Labyrinth Seal

503190682

$5.67

710

Washer

503191910

$2.18

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

800

Spring Support Kit

861805547

$7.90

810

Bushing

503196210

$10.72

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503194266

$6.39

920

Hex. Cap Screw M8 X 95

503194267

$6.21

930

Hex. Elastic Stop Nut M8

232581414

$0.54

1000

Axle

503196663

$23.10

1020

Washer

503192494

$3.01

1030

Bolt M8 X 248mm

503192440

$29.07

1040

Elastic Flange Nut M8

233281466

$0.96

1090

Pivot Axle

503195954

$9.18

1100

Spacer

503195825

$1.54

1110

Washer

503192494

$3.01

1120

Bolt M8 X 248mm

503192440

$29.07

1130

Elastic Flange Nut M8

233281466

$0.96

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1810

Black, Wheel Cap

503192771

$2.21
