- NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212
WIRE HARNESS

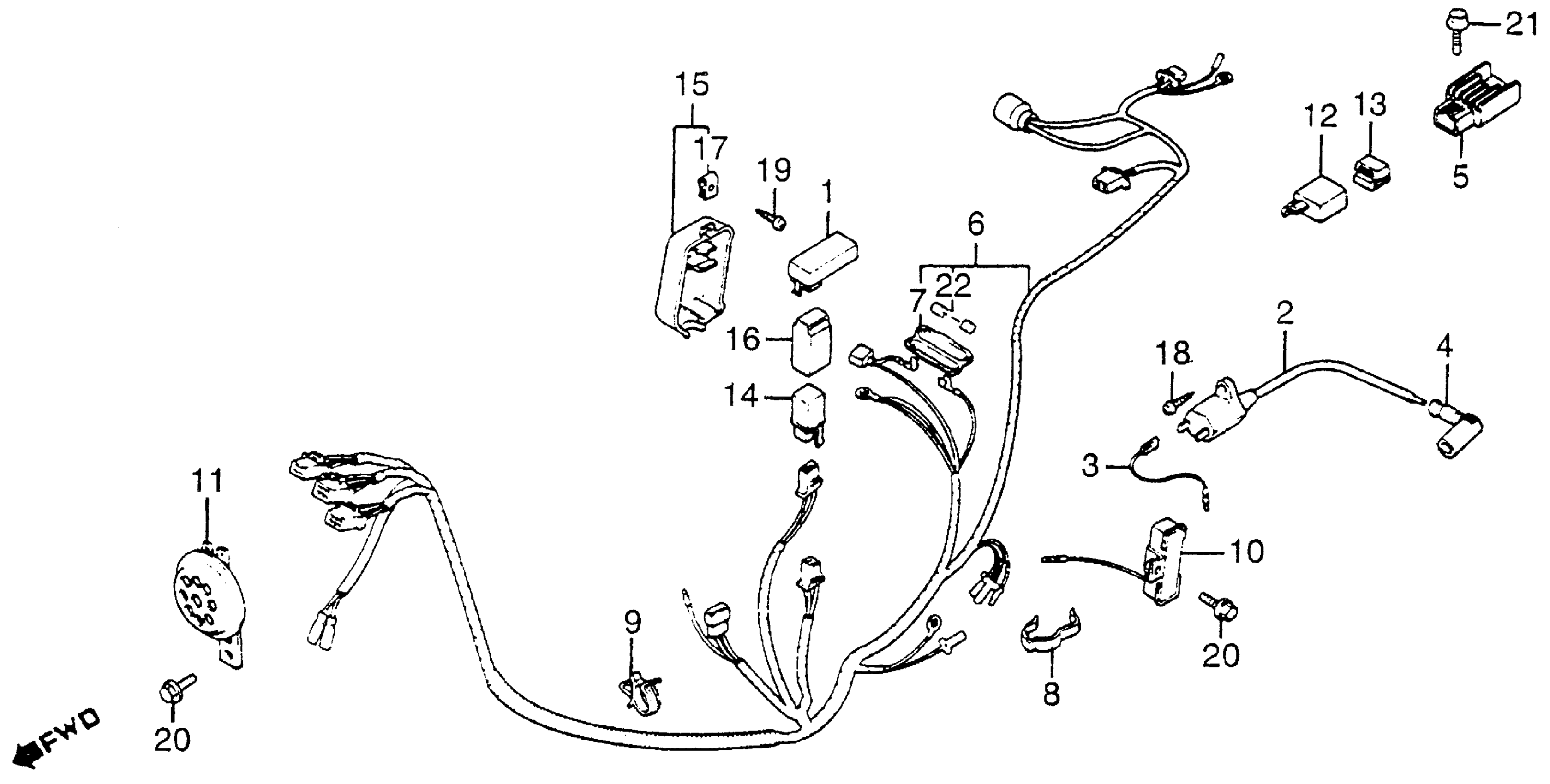

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 WIRE HARNESS Diagram
#
Description
Price
1
MODULE, IGNITION CONTROL (CDI)
30410-187-008
Unavailable
2
COIL, IGNITION This part replaces 30500-GJ5-010.
30510-GJ1-405
Unavailable
2
COIL, IGNITION
30510-GJ1-405
Unavailable
2
COIL, IGNITION This part replaces 30510-GJ5-000.
30510-GJ1-405
Unavailable
3
SUB-HARNESS, IGNITION
30520-GJ5-010
Unavailable
4
CAP ASSY., NOISE SUPPRESSOR
30700-GM8-670
Unavailable
4
CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-196-600.
30700-GM8-670
Unavailable
6
WIRE HARNESS (NOT AVAILABLE)
32100-GK0-670
Unavailable
7
CASE, FUSE (7A)
32120-155-000
Unavailable
8
CLIP, WIRE HARNESS
32161-GK0-000
Unavailable
10
RESISTOR This part replaces 35400-GK0-000.
35400-196-000
Unavailable
10
RESISTOR
35400-196-000
Unavailable
11
HORN
38110-GK0-004
Unavailable
11
HORN This part replaces 38110-GK0-005.
38110-GK0-004
Unavailable
12
RELAY, TURN SIGNAL (DENSO)
38301-MG2-008
Unavailable
14
RELAY, STARTER
38501-GF4-701
Unavailable
14
RELAY, STARTER This part replaces 38501-GJ2-004.
38501-GF4-701
Unavailable
14
RELAY, STARTER This part replaces 38501-GJ5-004.
38501-GF4-701
Unavailable
15
BOX, ELECTRIC
38505-GJ5-000
Unavailable
16
SUSPENSION, STARTER RELAY This part replaces 38506-GJ5-000.
38506-GJ5-004
Unavailable
16
SUSPENSION, STARTER RELAY
38506-GJ5-004
Unavailable
18
SCREW, TAPPING (5X30)
93901-25610
Unavailable
19
SCREW, TAPPING (4X12)
93904-24380
Unavailable
