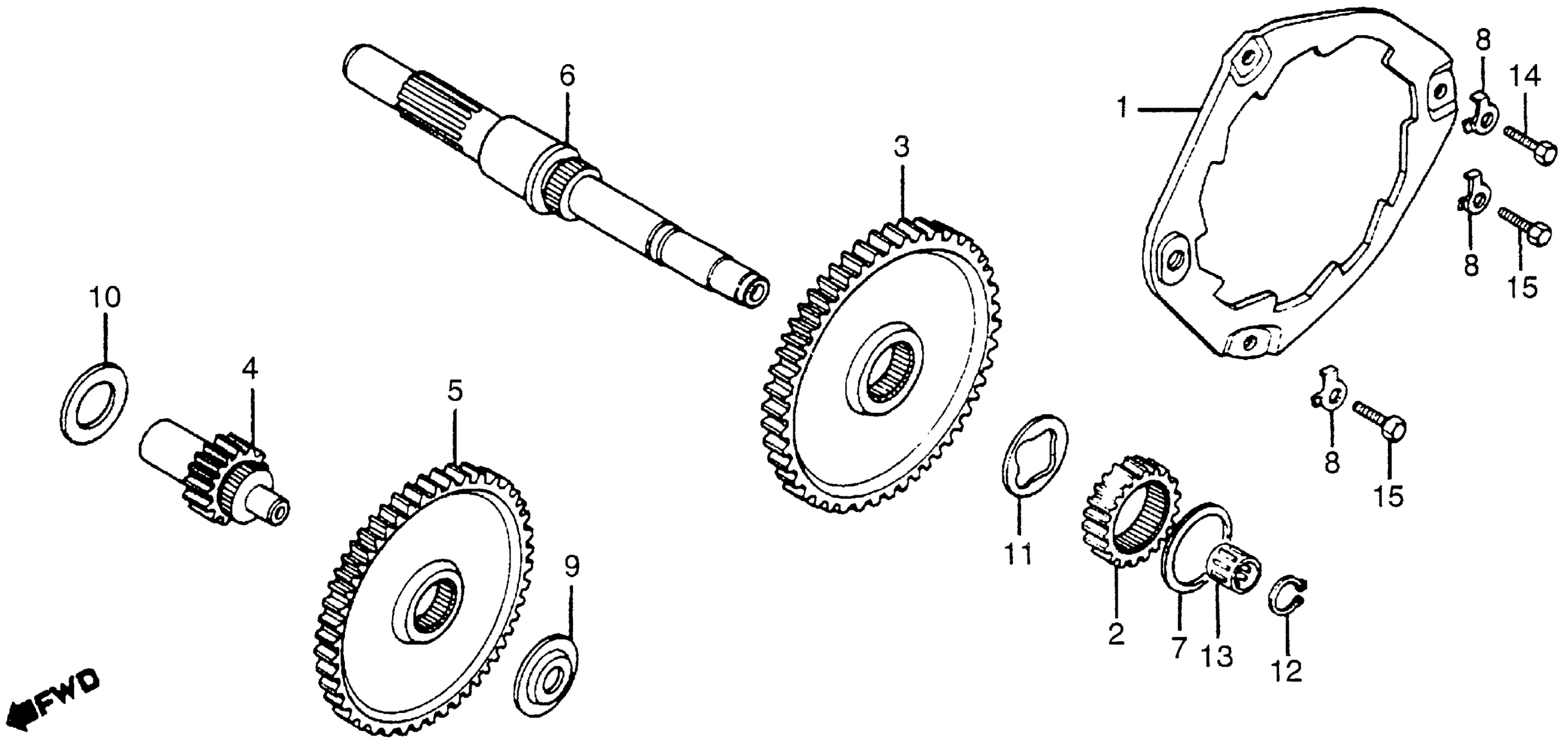

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 TRANSMISSION Diagram

#

Description

Price

1

PLATE, RATCHET (NOT AVAILABLE)

22671-GK0-000

Unavailable

2

GEAR, PRIMARY DRIVE This part replaces 23121-GJ5-000.

23121-GJ5-010

Unavailable

2

GEAR, PRIMARY DRIVE

23121-GJ5-010

Unavailable

3

GEAR, PRIMARY DRIVEN (58T)

23131-GJ5-000

Unavailable

4

GEAR, FINAL DRIVE (14T)

23211-GJ5-000

Unavailable

5

GEAR, FINAL DRIVEN (55T)

23221-GJ5-000

Unavailable

6

SHAFT, R. FINAL This part replaces 23431-GJ5-000.

23431-GJ5-010

Unavailable

6

SHAFT, R. FINAL

23431-GJ5-010

Unavailable

7

WASHER, THRUST (21MM)

90411-GK0-000

Unavailable

8

WASHER, LOCK (6MM)

90439-GJ5-000

Unavailable

9

WASHER, THRUST (8MM)

90451-GJ5-000

Unavailable

10

WASHER, THRUST (14MM)

90454-350-000

$3.74

11

WASHER (12.1MM)

90458-GJ5-000

Unavailable

12

CIRCLIP (OUTER) (9MM)

90601-GJ5-003

Unavailable

13

BEARING, NEEDLE (9X12X10)

91023-GJ5-003

Unavailable

13

BEARING, NEEDLE (9X12X10) This part replaces 91023-GJ5-004.

91023-GJ5-003

Unavailable

14

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

14

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92210-06014-0A.

92101-06014-0A

$1.49

15

BOLT, HEX. (6X25)

92220-06025-0A

Unavailable
