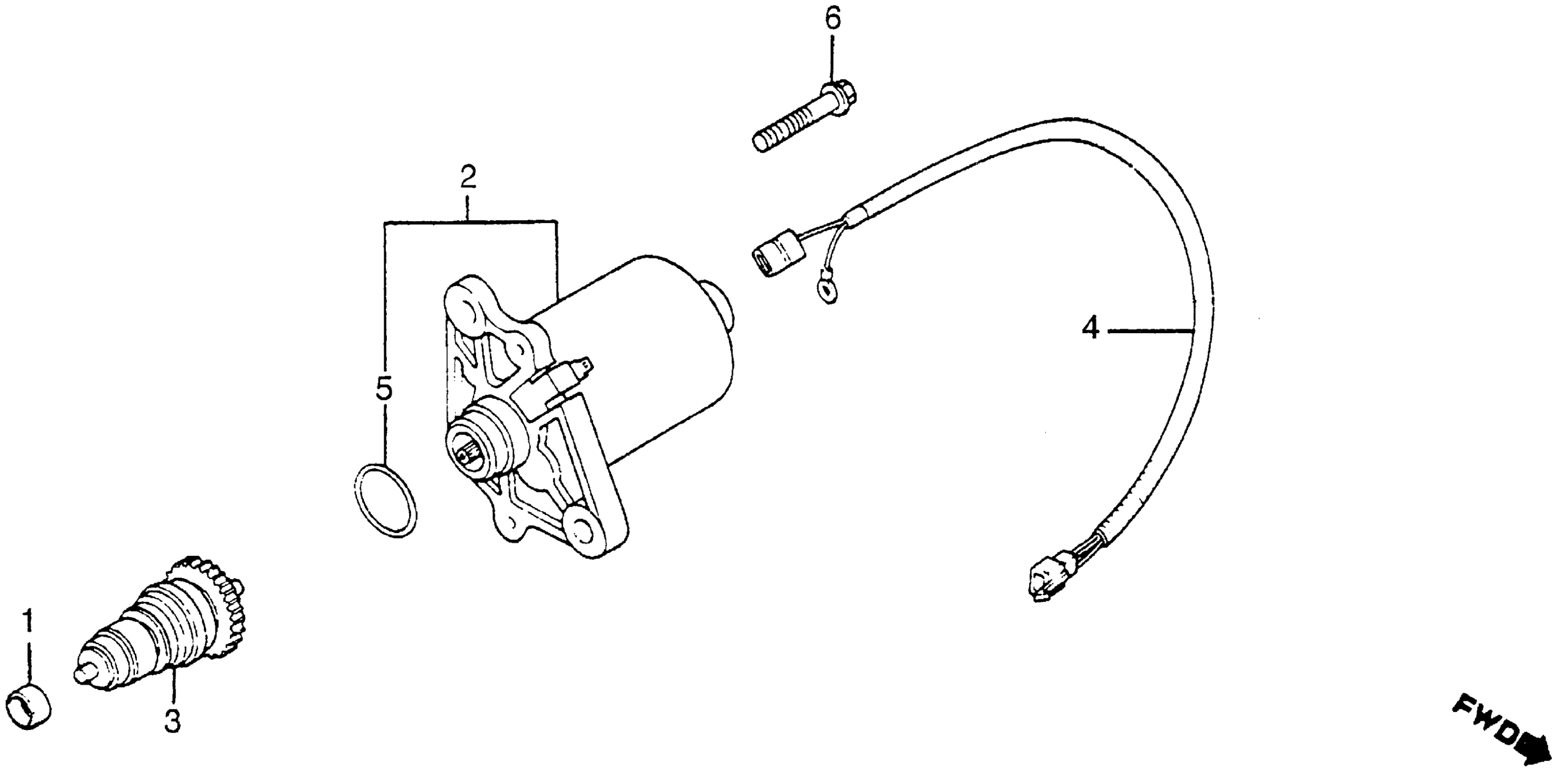

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 STARTER MOTOR Diagram

#

Description

Price

1

BUSH (8X12X8)

11205-GAH-003

$8.90

1

BUSH (8X12X8) This part replaces 11205-GF0-761.

11205-GAH-003

$8.90

2

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-GJ5-003

Unavailable

2

MOTOR ASSY., STARTER This part replaces 31200-GJ5-004.

31200-GJ5-014

Unavailable

2

MOTOR ASSY., STARTER

31200-GJ5-014

Unavailable

3

PINION ASSY., STARTER

31209-GJ5-008

Unavailable

4

SUB-HARNESS | (Optional).

32105-GJ5-810

Unavailable

5

O-RING, STARTER (19.3X2.4)

91309-GF0-760

Unavailable

6

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.13

6

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
