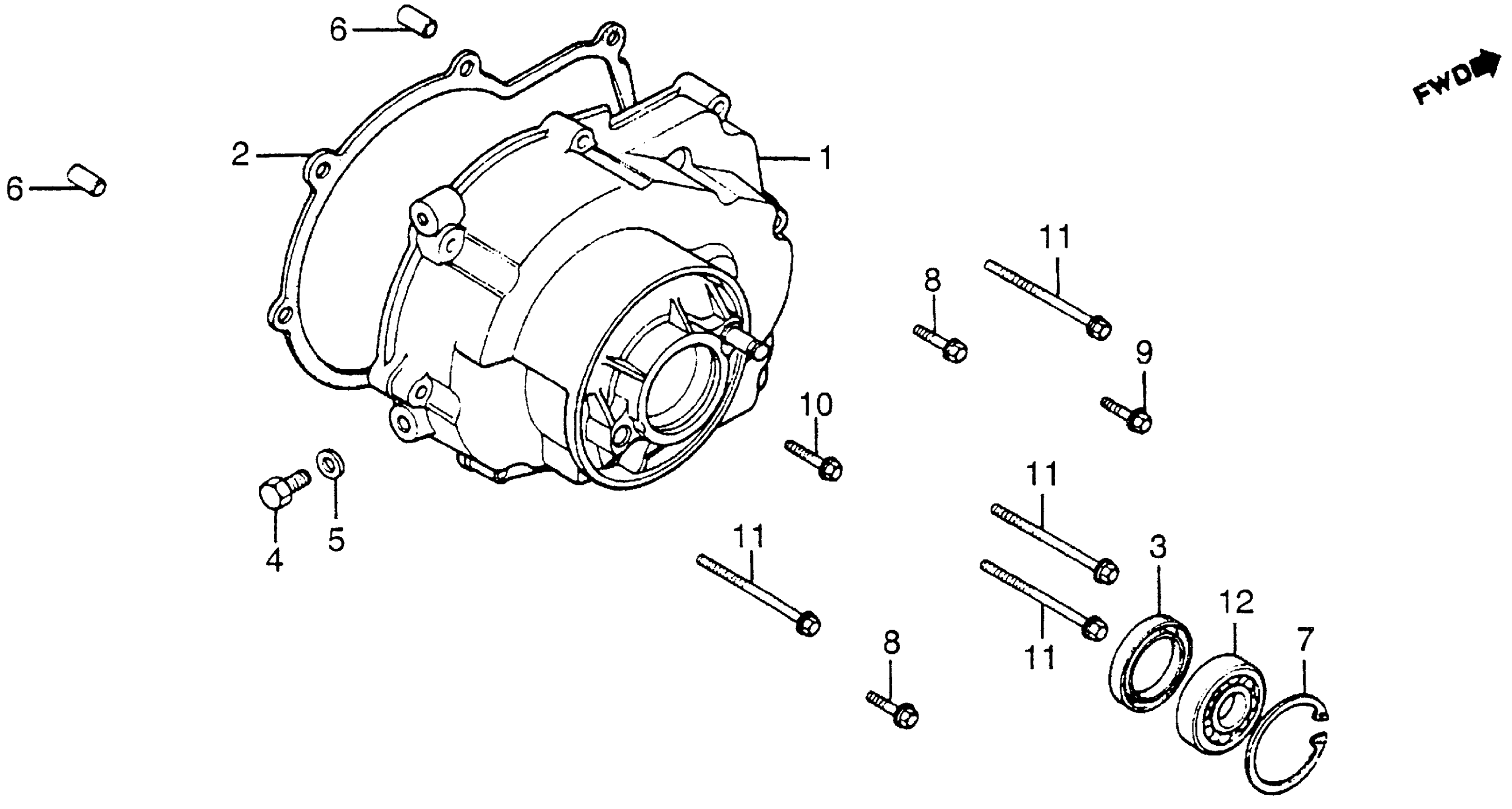

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-GJ5-000

Unavailable

GASKET, R. SIDE COVER This part replaces 11393-GJ5-000.

11393-GJ5-405

Unavailable

GASKET, R. SIDE COVER

11393-GJ5-405

Unavailable

OIL SEAL (20X28X5) This part replaces 91203-GJ5-003.

91203-GJ5-004

Unavailable

OIL SEAL (20X28X5)

91203-GJ5-004

Unavailable

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN A, DOWEL (8X14)

94301-08140

$2.04

CIRCLIP (INNER) (35MM)

94520-35000

$1.77

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.28

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$1.97

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

BOLT, FLANGE (6X80) This part replaces 96000-06080-00.

96001-06080-07

Unavailable

BOLT, FLANGE (6X80) This part replaces 96000-06080-07.

96001-06080-07

Unavailable

BOLT, FLANGE (6X80)

96001-06080-00

$2.01

BOLT, FLANGE (6X80)

96001-06080-07

Unavailable

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$8.32
