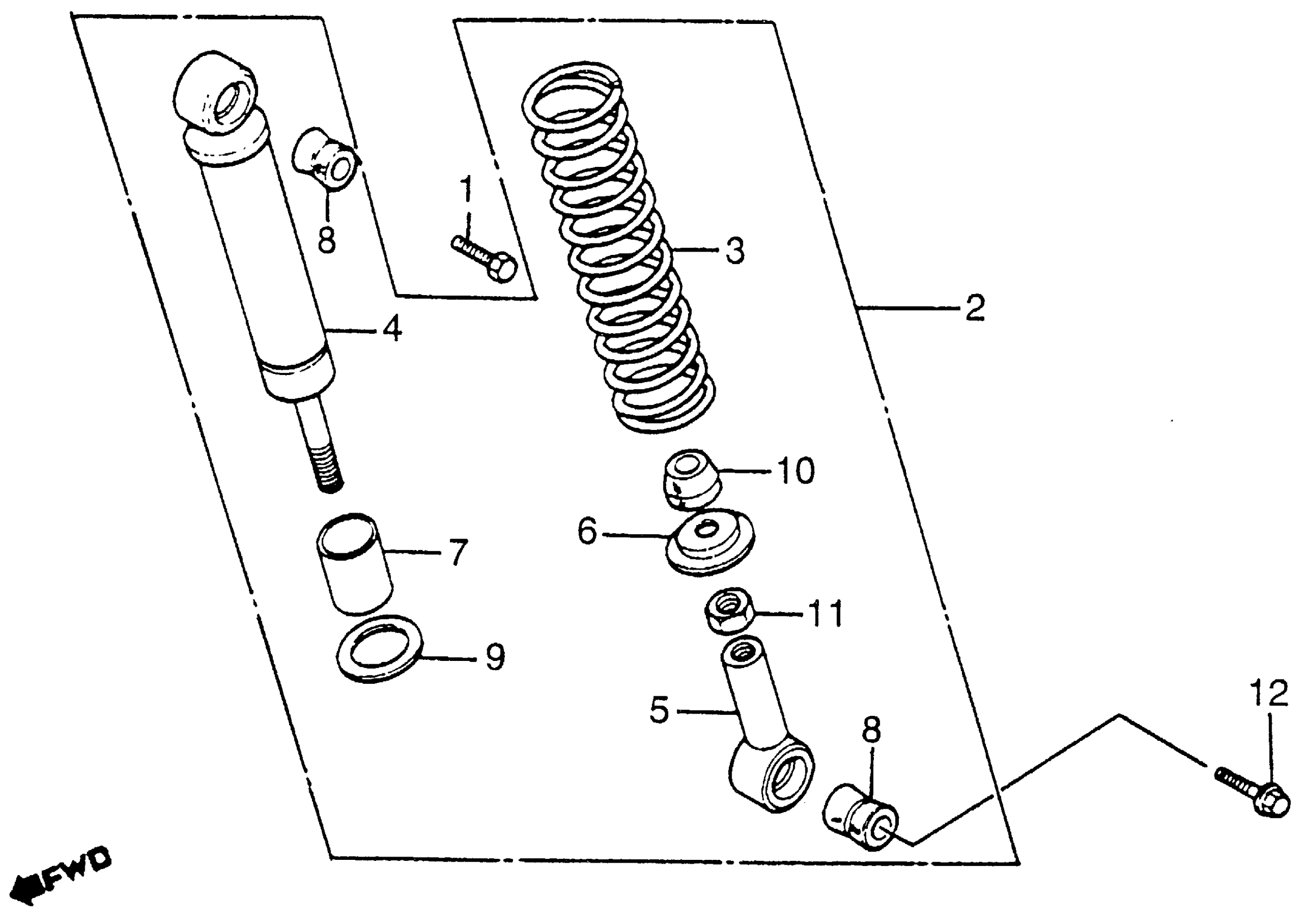

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

BOLT, HEX. (10X35)

N949040-4731

Unavailable

1

BOLT, HEX. (10X35) This part replaces 38937-671-000.

N949040-4731

Unavailable

2

CUSHION ASSY., RR. (NOT AVAILABLE)

52400-GK0-671

Unavailable

3

SPRING, RR. SHOCK ABSORBER

52401-GK0-671

Unavailable

4

DAMPER, RR. SHOCK ABSORBER

52410-GK0-671

Unavailable

5

METAL, RR. SHOCK ABSORBER (LOWER)

52411-GK0-003

Unavailable

6

SEAT, SPRING (LOWER)

52458-GJ5-003

Unavailable

7

COLLAR (OUTER)

52487-GK0-671

Unavailable

8

BUSH, SHOCK ABSORBER

52489-473-003

$7.41

9

SEAT, SPRING (UPPER)

52515-GJ5-003

Unavailable

10

RUBBER, STOPPER

52517-GJ5-003

$4.70

11

NUT, HEX. (10MM)

94002-10000-0S

$4.06

12

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.31

12

BOLT, FLANGE (10X32)

95801-10032-00

$2.31
