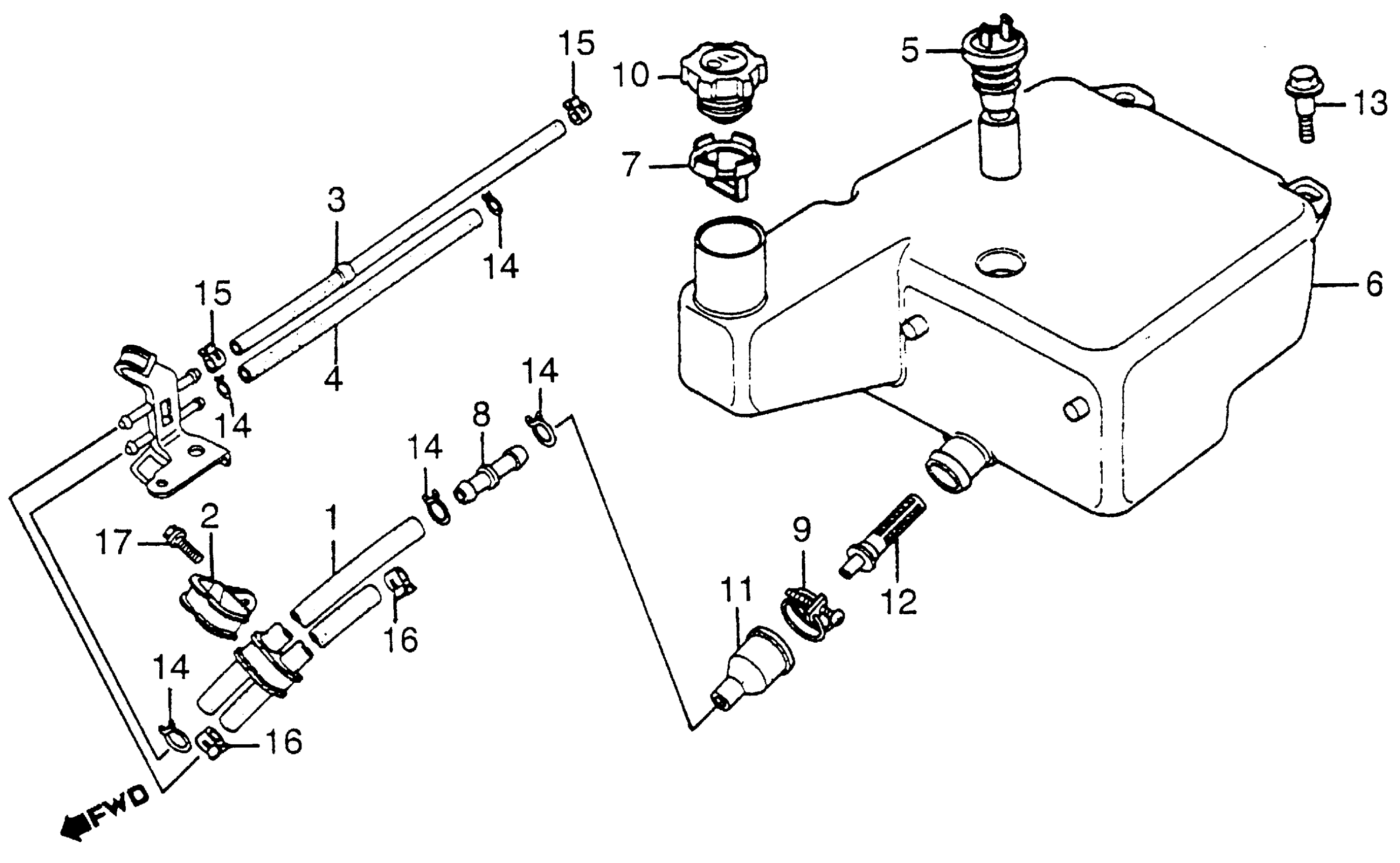

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 OIL TANK Diagram

TUBE SUB-ASSY.

17715-GK0-000

Unavailable

CLAMP, TUBE

17717-GK0-000

Unavailable

HOSE, FUEL (4.5X390)

17718-GK0-000

Unavailable

TUBE, OIL

17720-GK0-000

Unavailable

SWITCH ASSY., OIL LEVEL (MITSUBA) This part replaces 35410-GF0-003.

35410-GF0-014

$58.25

SWITCH ASSY., OIL LEVEL (MITSUBA) This part replaces 35410-GF0-004.

35410-GF0-014

$58.25

SWITCH ASSY., OIL LEVEL (MITSUBA) This part replaces 35410-GF0-013.

35410-GF0-014

$58.25

SWITCH ASSY., OIL LEVEL (MITSUBA)

35410-GF0-014

$58.25

TANK, OIL (NOT AVAILABLE)

55100-GK0-000

Unavailable

PLATE, LEVEL (UPPER)

55101-GA7-000

Unavailable

JOINT, OIL TUBE

55102-166-000

$4.08

CLIP, OIL TUBE

55104-GC6-000

Unavailable

CAP, OIL

55105-147-000

Unavailable

JOINT, OIL STRAINER (NOT AVAILABLE)

55107-166-010

Unavailable

SCREEN, OIL STRAINER

55121-196-000

Unavailable

BOLT, FLANGE (6MM)

90111-162-000

$2.89

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (D8.5)

95002-40850-08

$2.34

CLIP, TUBE (D10.5)

95002-41050-08

$2.34

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49
