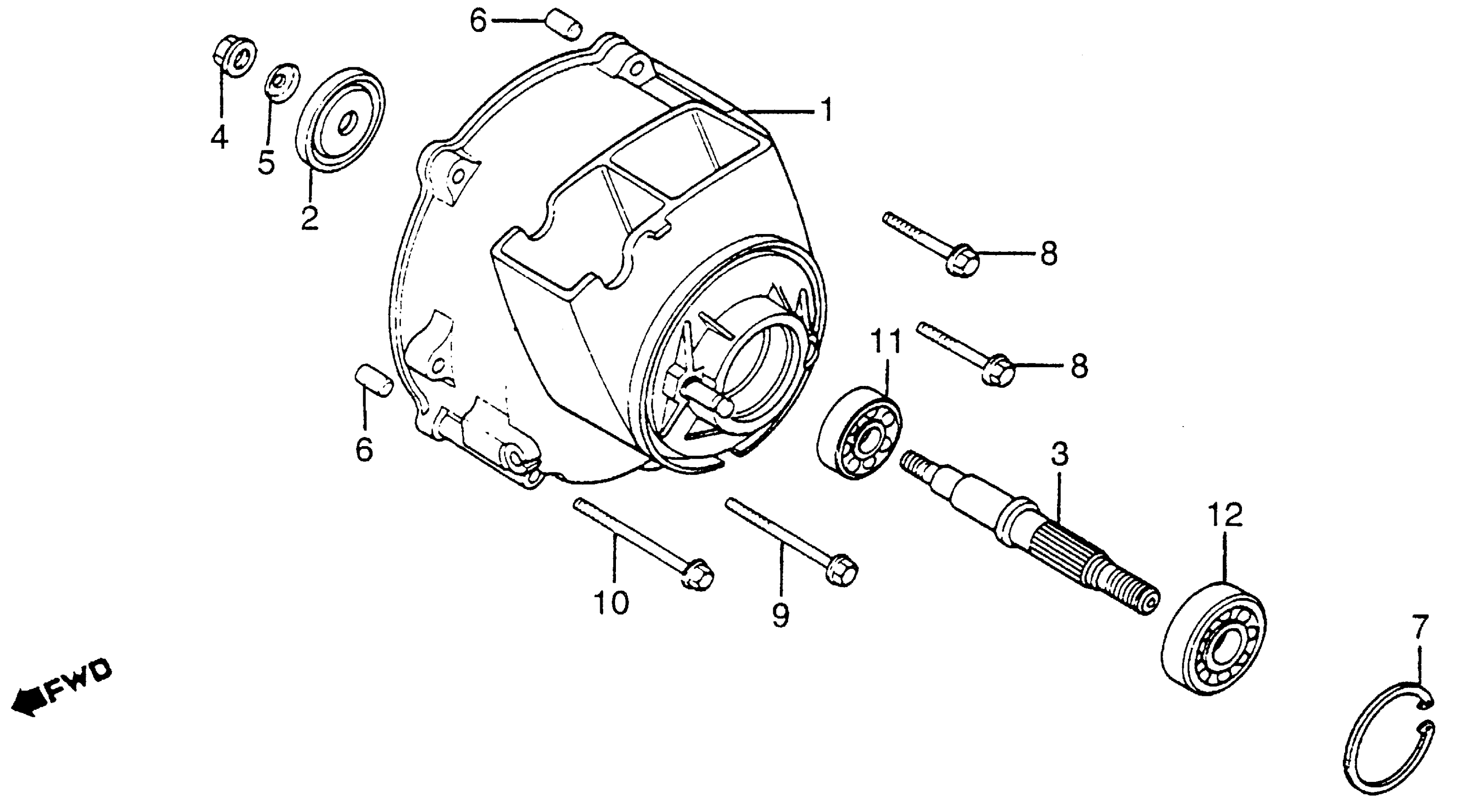

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 LEFT SIDE COVER Diagram

COVER, L. SIDE

11341-GJ5-000

Unavailable

CAP, BEARING

11343-GJ5-000

Unavailable

SHAFT, L. FINAL (NOT AVAILABLE) This part replaces 23441-GJ5-000.

23441-GJ5-010

Unavailable

SHAFT, L. FINAL (NOT AVAILABLE)

23441-GJ5-010

Unavailable

NUT, FLANGE (6MM)

90202-GJ5-000

Unavailable

WASHER, SPECIAL (6MM)

90459-GJ5-000

Unavailable

PIN A, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

BEARING, RADIAL BALL (6000UU)

96150-60000-10

Unavailable

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
