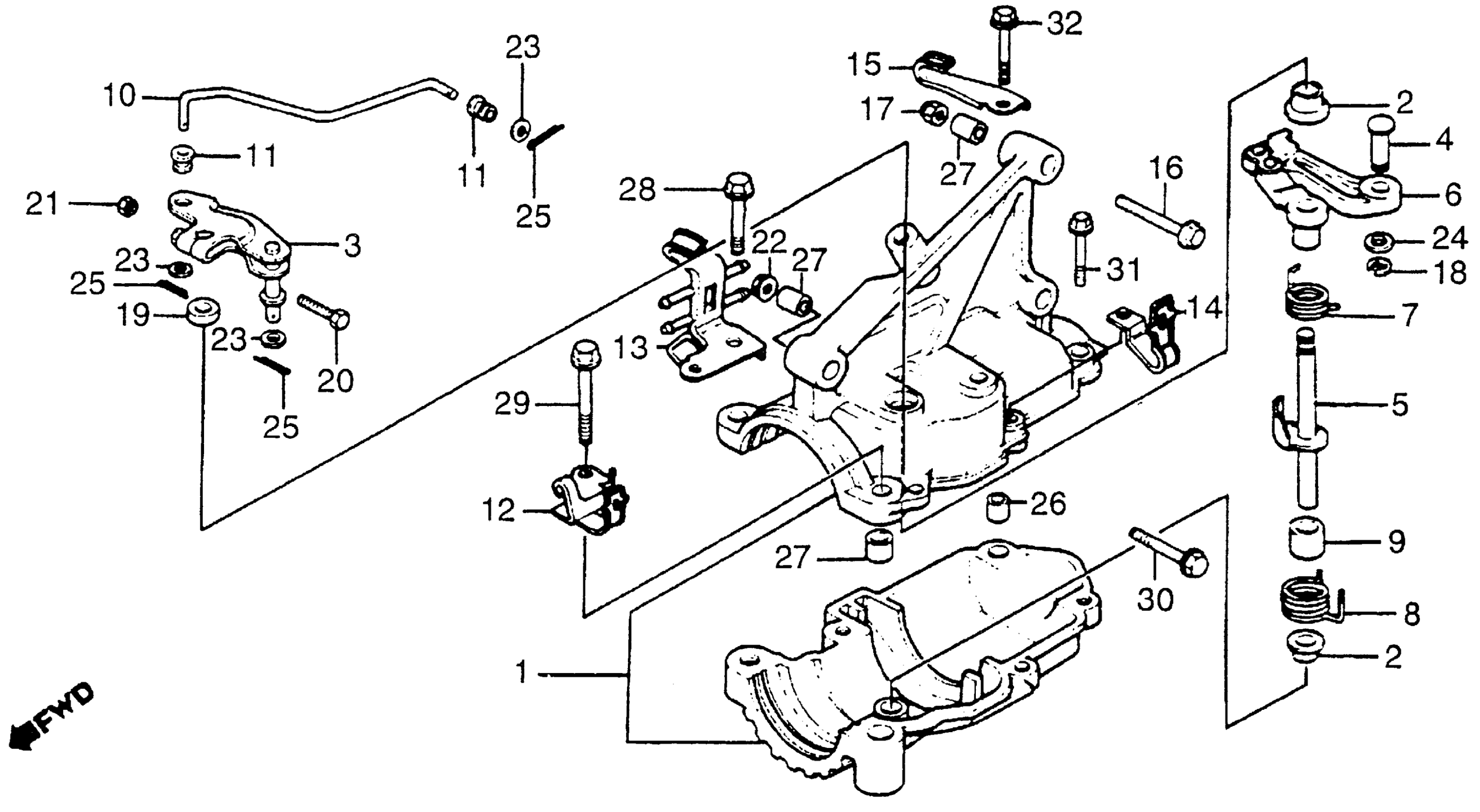

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 JOINT CASE Diagram

#

Description
Price

1

CASE SET, JOINT This part replaces 52210-GJ5-305.

52210-GM8-670

Unavailable

1

CASE SET, JOINT This part replaces 52210-GJ5-315.

52210-GM8-670

Unavailable

1

CASE SET, JOINT

52210-GM8-670

Unavailable

2

BUSH, SWING LOCK SHAFT

52217-196-003

Unavailable

3

SWINGARM A, LOCK

52220-GJ5-000

Unavailable

4

PIN, STOPPER PAWL

52223-GJ5-300

Unavailable

5

SHAFT, SWING LOCK

52229-GJ5-000

Unavailable

6

PAWL, SWING LOCK

52230-GJ5-003

Unavailable

6

PAWL, SWING LOCK This part replaces 52230-GJ5-005.

52230-GJ5-003

Unavailable

7

SPRING, DETAINING

52231-GJ5-000

Unavailable

8

SPRING, PARKING CABLE RETURN

52232-GJ5-000

Unavailable

9

GUIDE, RETURN SPRING

52233-GJ5-000

Unavailable

10

ROD, PARKING LOCK

52236-GJ5-000

Unavailable

11

BUSH, ARM

52237-GJ5-003

Unavailable

12

PLATE, PARKING CABLE STOPPER

52238-GK0-000

Unavailable

13

CLAMP C, CABLE

52243-GK0-000

Unavailable

14

GUIDE, RR. CABLE

52244-GK0-000

Unavailable

15

GUIDE, RR. BRAKE CABLE

52247-GK0-000

Unavailable

16

BOLT, FLANGE (8X75)

90017-KE8-000

Unavailable

17

NUT, CAP (8MM)

90443-107-000

$2.89

18

E-RING (6MM) (NOT AVAILABLE)

90605-355-000

Unavailable

19

OIL SEAL (8X16X5) (NOT AVAILABLE)

91262-GJ5-003

Unavailable

19

OIL SEAL (8X16X5) (NOT AVAILABLE) This part replaces 91262-GJ5-005.

91262-GJ5-003

Unavailable

20

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

20

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

20

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

21

NUT, HEX. (5MM)

94001-05000-0S

$2.74

21

NUT, HEX. (5MM) This part replaces 94001-05090-0S.

94001-05000-0S

$2.74

22

NUT, FLANGE (8MM)

94050-08080

$1.49

23

WASHER, PLAIN (5MM)

94101-05800

$1.49

24

WASHER, PLAIN (8MM)

94102-08800

$1.49

25

PIN, COTTER (1.6X10)

94201-16100

$1.49

26

PIN A, DOWEL (8X14)

94301-08140

$2.25

27

PIN A, DOWEL (10X16)

94301-10160

$2.28

28

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

28

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

29

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

29

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

30

BOLT, FLANGE (8X65) This part replaces 95700-08065-08.

95701-08065-08

$2.75

30

BOLT, FLANGE (8X65)

95701-08065-08

$2.75

31

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

31

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

32

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

32

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
