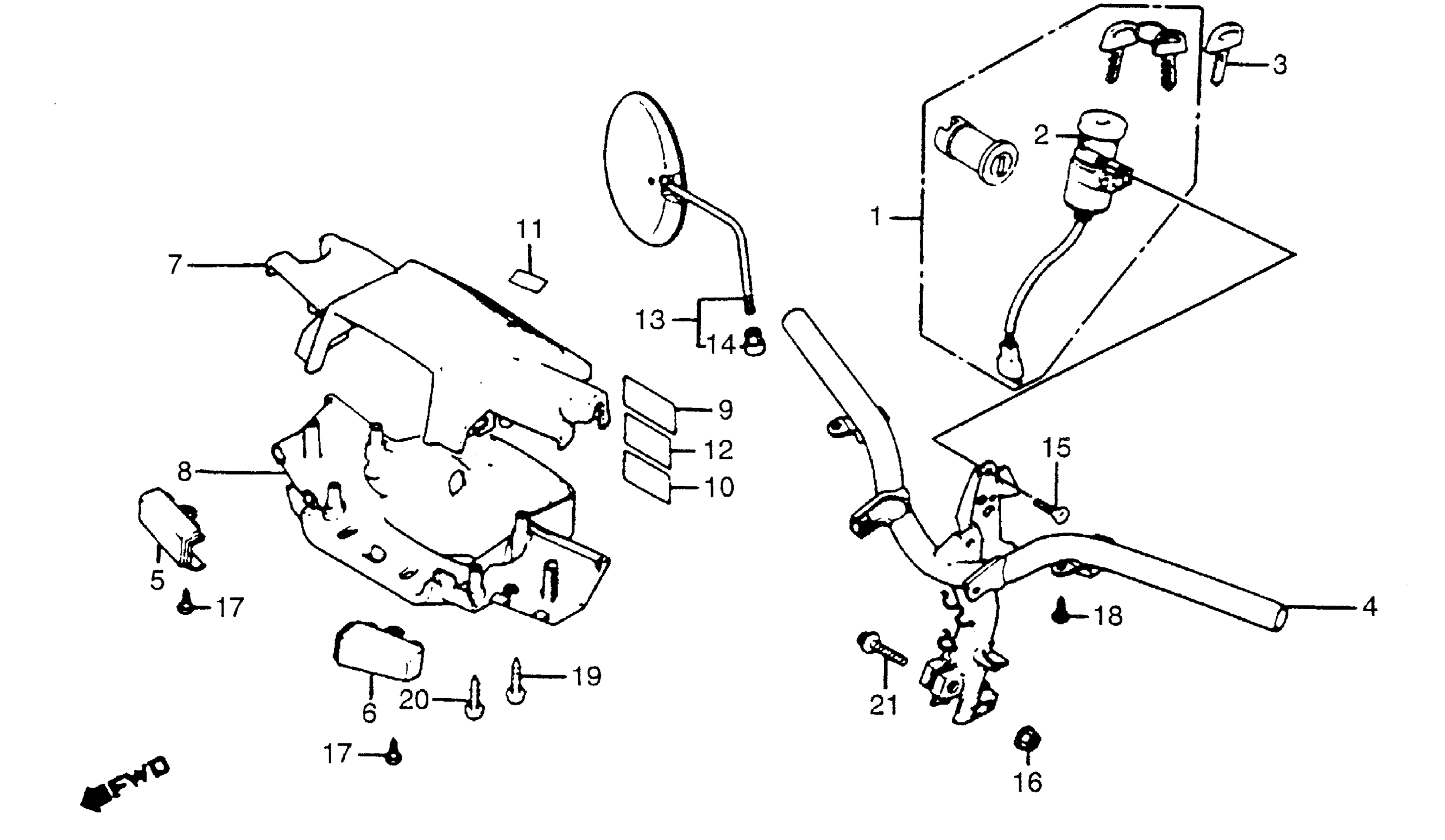

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 HANDLEBAR + HANDLE COVER Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE)

35010-GK0-670

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-GK0-670

Unavailable

3

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

3

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

3

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

3

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

3

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

3

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

4

HANDLEBAR (NOT AVAILABLE)

53100-GK0-670

Unavailable

5

COVER, R. FR. HANDLE *R127* (SPARKLING RED) (NOT AVAILABLE)

53115-GK0-670ZA

Unavailable

5

COVER, R. FR. HANDLEBAR *PB109* (NEPTUNE BLUE) (NOT AVAILABLE)

53115-GK0-670ZB

Unavailable

6

COVER, L. FR. HANDLEBAR *R127* (SPARKLING RED)

53116-GK0-670ZA

Unavailable

6

COVER, L. FR. HANDLEBAR *PB109* (NEPTUNE BLUE) (NOT AVAILABLE)

53116-GK0-670ZB

Unavailable

7

COVER, HANDLEBAR (UPPER) *R127* (SPARKLING RED) (NOT AVAILABLE)

53205-GK0-670ZA

Unavailable

7

COVER, HANDLEBAR (UPPER) *PB109* (NEPTUNE BLUE) (NOT AVAILABLE)

53205-GK0-670ZB

Unavailable

8

COVER, HANDLEBAR (LOWER) *R127* (SPARKLING RED) (NOT AVAILABLE)

53206-GK0-670ZA

Unavailable

8

COVER, HANDLEBAR (LOWER) *PB109* (NEPTUNE BLUE)

53206-GK0-670ZB

Unavailable

9

LABEL, PARKING LEVER CAUTION

87509-GK0-670

Unavailable

10

LABEL, USE CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87511-147-670ZB

Unavailable

11

LABEL, PARKING BRAKE (NOT AVAILABLE)

87515-GK0-670

Unavailable

12

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-174-770ZB.

87560-174-770ZE

Unavailable

12

MARK, DRIVE CAUTION (TYPEW)

87560-174-770ZE

Unavailable

13

MIRROR COMP. This part replaces 88110-GK0-670.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88110-GM4-000.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88110-GM6-000.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88210-GBJ-505.

88210-GN2-000

$29.10

13

MIRROR COMP. This part replaces 88210-GK8-505.

88210-GN2-000

$29.10

14

NUT, LOCK

90134-GC2-000

Unavailable

15

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

16

NUT, AXLE (10MM)

90304-GA6-003

$2.89

17

SCREW, TAPPING (4X16)

93903-34420

$1.49

18

SCREW, TAPPING (5X16)

93903-35320

$1.49

19

SCREW, TAPPING (5X25)

93903-35520

$0.62

20

SCREW, TAPPING (5X35)

93903-35720

Unavailable

21

BOLT, FLANGE (10X40) This part replaces 95800-10040-08.

95801-10040-08

$2.30

21

BOLT, FLANGE (10X40)

95801-10040-08

$2.30

21

BOLT, FLANGE (10X35)

96400-10040-08

Unavailable
