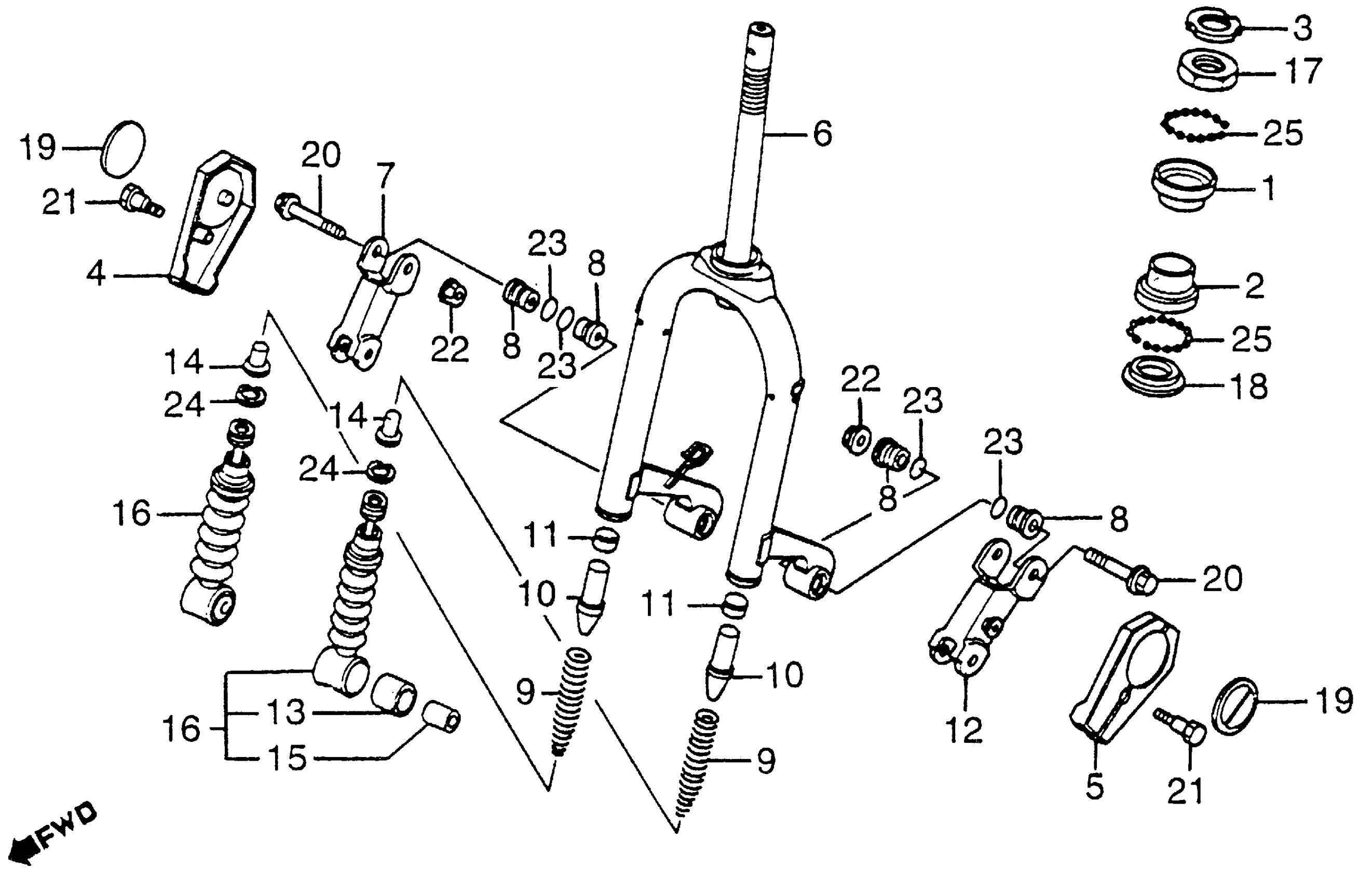

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 FRONT FORK Diagram

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

RACE, STEERING BALL (UPPER) (MITSUBOSHI)

50301-147-003

$12.16

RACE, STEERING BALL (LOWER)

50305-GE8-680

$10.48

RACE, STEERING BALL (LOWER) This part replaces 50305-147-003.

50305-GE8-680

$10.48

NUT, STEERING STEM LOCK This part replaces 50306-196-000.

50306-196-010

Unavailable

NUT, STEERING STEM LOCK

50306-196-010

Unavailable

COVER, R. PIVOT ARM

51103-GE8-000

Unavailable

COVER, L. PIVOT ARM

51104-GE8-000

Unavailable

FORK, FR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

51105-GK0-000ZA

Unavailable

ARM, R. FR. PIVOT *NH35M* (CLOUD SILVER METALLIC)

51311-GE8-000ZA

Unavailable

BUSH, PIVOT ARM This part replaces 51314-GA7-000.

51314-GR1-003

Unavailable

BUSH, PIVOT ARM

51314-GR1-003

Unavailable

SPRING, FR. FORK

51401-GE8-000

Unavailable

RUBBER, STOPPER

51406-GE8-670

Unavailable

STOPPER, SPRING

51407-GA7-000

Unavailable

ARM, L. FR. PIVOT *NH35M* (CLOUD SILVER METALLIC)

51411-GE8-000ZA

Unavailable

BUSH, FR. FORK (NOT AVAILABLE)

51413-GE8-003

Unavailable

SEAT, BUMP RUBBER

51426-GA7-600

Unavailable

COLLAR, RUBBER BUSH

51486-GE8-003

Unavailable

ROD ASSY., FR. FORK

51610-GE8-681

Unavailable

RACE, STEERING TOP CONE

53211-GC8-003

$14.68

RACE, STEERING CONE (LOWER) (MITSUBOSHI) This part replaces 53212-GE8-670.

53212-147-003

$8.74

RACE, STEERING CONE (LOWER) (MITSUBOSHI)

53212-147-003

$8.74

LABEL, PIVOT ARM COVER

87128-GE8-000

Unavailable

BOLT, FLANGE (8X48)

90111-GC3-000

$6.64

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, HEX. (8MM)

90309-357-000

$3.40

O-RING (16.8X1.9)

91347-PY3-000

$2.68

O-RING (16.8X1.9) This part replaces 91351-GA7-000.

91347-PY3-000

$2.68

CIRCLIP (INNER) (28MM)

94520-28000

$1.49

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
