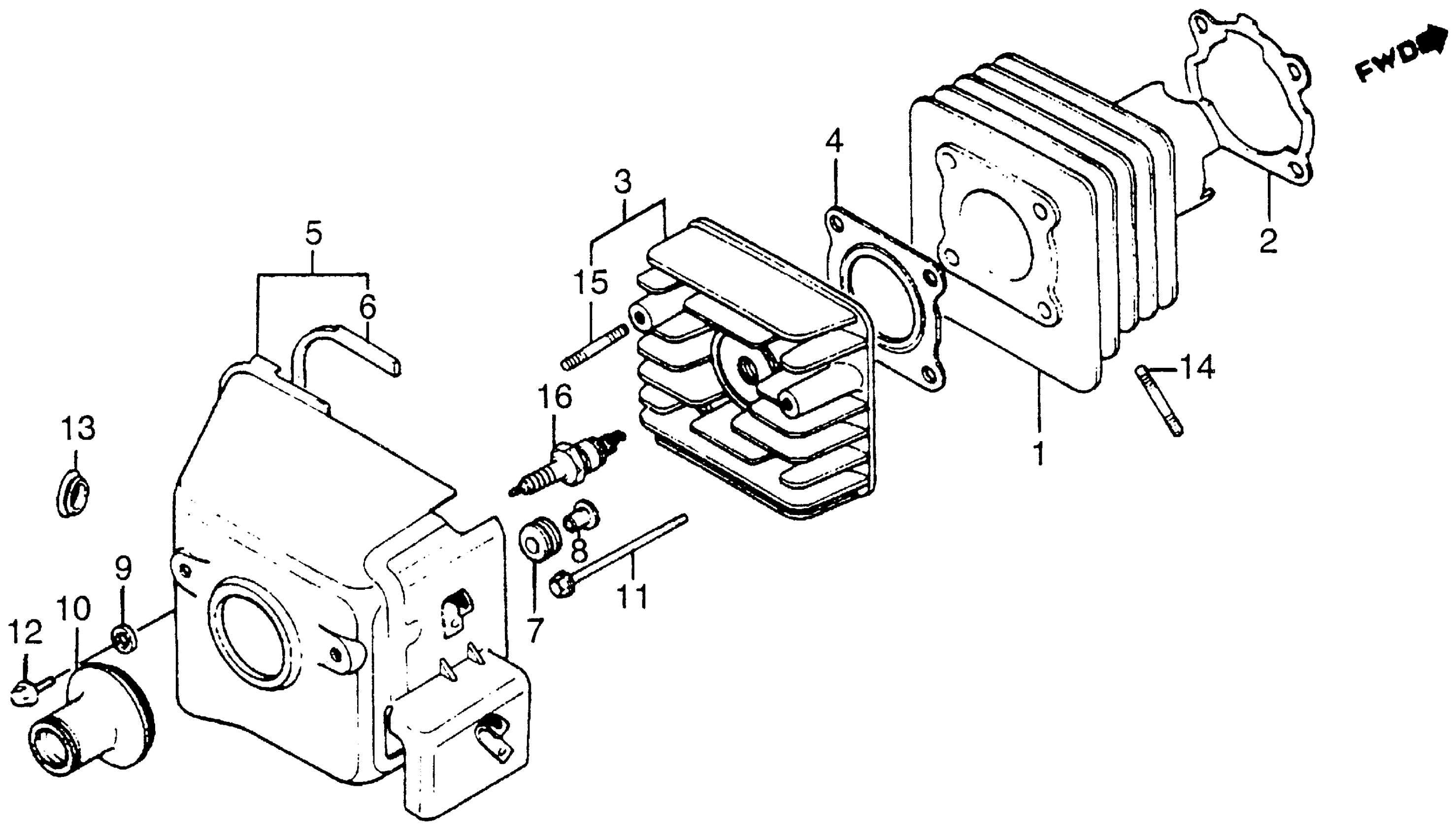

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER A (NOT AVAILABLE) This part replaces 12101-GJ5-000.

12101-GJ5-010

Unavailable

1

CYLINDER A (NOT AVAILABLE)

12101-GJ5-010

Unavailable

1

CYLINDER B (NOT AVAILABLE) This part replaces 12102-GJ5-000.

12102-GJ5-010

Unavailable

1

CYLINDER B (NOT AVAILABLE)

12102-GJ5-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-GJ5-000.

12191-GJ5-405

Unavailable

2

GASKET, CYLINDER

12191-GJ5-405

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-GJ5-000.

12200-GJ5-020

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-GJ5-020

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-GM8-000.

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD This part replaces 12251-147-000.

12251-GN2-000

$5.57

5

SHROUD (NOT AVAILABLE)

19610-GK0-000

Unavailable

6

RUBBER, SETTING

19611-GJ5-000

Unavailable

7

RUBBER, SHROUD MOUNT

19615-GJ5-000

Unavailable

8

COLLAR, MOUNTING RUBBER (NOT AVAILABLE)

19616-GJ5-000

Unavailable

9

RUBBER, MOUNTING

19617-GJ5-000

Unavailable

10

SEAL, COIL TERMINAL (NOT AVAILABLE) This part replaces 30605-GJ5-000.

30605-GJ5-010

Unavailable

10

SEAL, COIL TERMINAL (NOT AVAILABLE)

30605-GJ5-010

Unavailable

11

BOLT, FLANGE (6X8)

90002-PB3-000

Unavailable

12

BOLT (6MM)

90109-434-000

$2.77

13

PLUG, BLIND (20MM) This part replaces 90694-SA5-000.

95550-20000

$2.05

13

PLUG, BLIND (20MM)

95550-20000

$2.05

14

BOLT 2, STUD (6X18) This part replaces 92700-06027-10.

92900-06018-1B

$1.69

14

BOLT 2, STUD (6X18) This part replaces 92700-06028-1B.

92900-06018-1B

$1.69

14

BOLT 2, STUD (6X18)

92900-06018-1B

$1.69

15

BOLT, STUD (6X20) This part replaces 92700-06032-0E.

92900-06020-0E

$2.40

15

BOLT 2, STUD (6X20)

92900-06020-0E

$2.40

16

SPARK PLUG (BPR4HS) (NGK) | (Optional). This part replaces 98076-54717.

98076-54747

$2.53

16

SPARK PLUG (W14FPR-L) (DENSO) | (Optional). This part replaces 98076-54727.

98076-54756

Unavailable

16

SPARK PLUG (BPR4HS) (NGK) | (Optional).

98076-54747

$2.53

16

SPARK PLUG (W14FPR-L) (DENSO) | (Optional).

98076-54756

Unavailable

16

SPARK PLUG (BPR6HS) (NGK)

98076-56717

$2.52

16

SPARK PLUG (W20FPR) (DENSO) This part replaces 98076-56727.

98076-56756

Unavailable

16

SPARK PLUG (W20FPR) (DENSO)

98076-56756

Unavailable

16

SPARK PLUG (BPR8HS) (NGK) | (Optional).

98076-58717

$2.62

16

SPARK PLUG (W24FR-L) (DENSO) | (Optional). This part replaces 98076-58727.

98076-5872G

Unavailable
