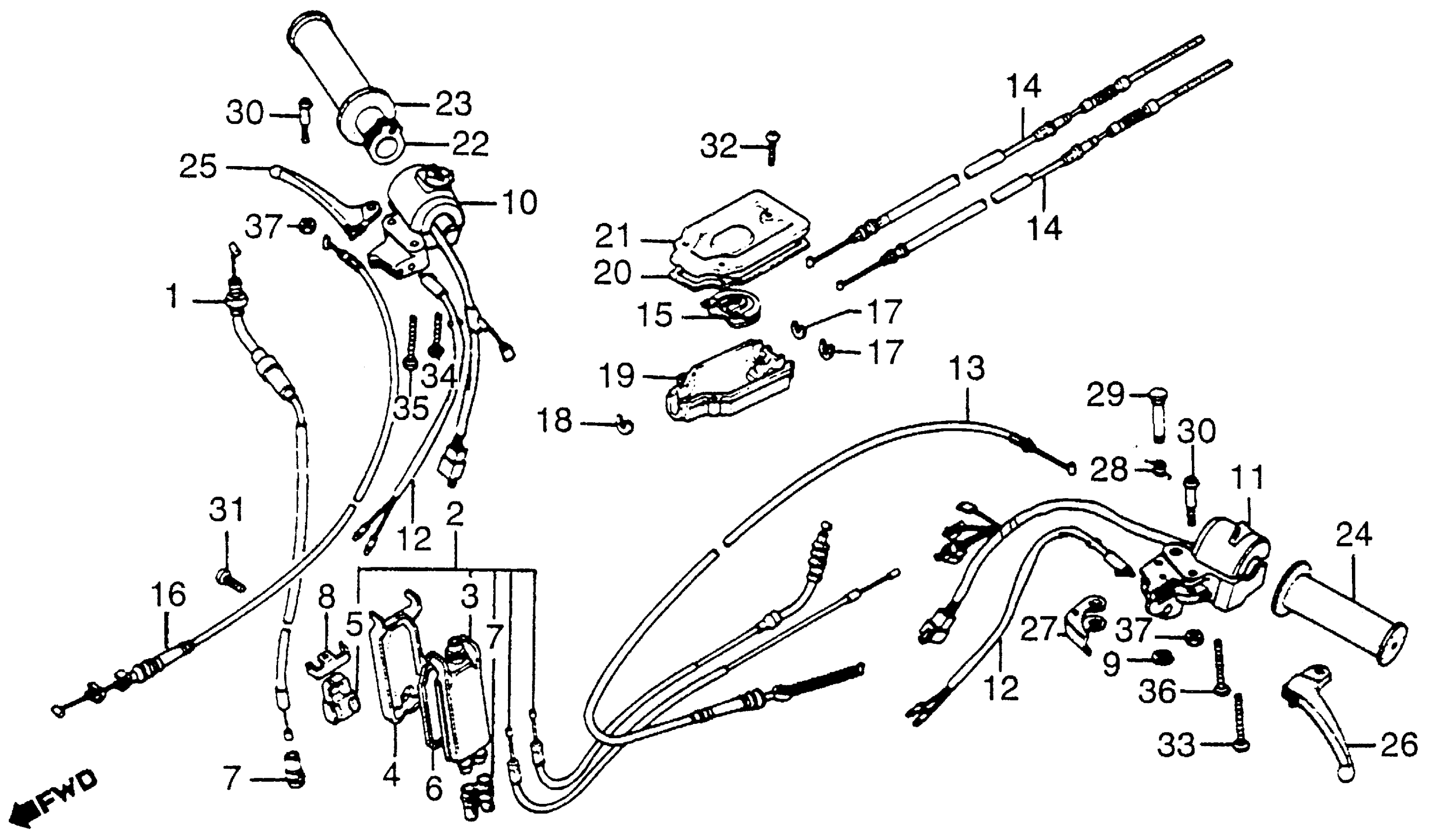

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE)

17910-GK0-000

Unavailable

2

CABLE B, THROTTLE (NOT AVAILABLE)

17911-GK0-000

Unavailable

3

CABLE B, THROTTLE (NOT AVAILABLE) This part replaces 17912-196-000.

17911-GK0-000

Unavailable

4

COVER, JUNCTION

17913-196-000

Unavailable

5

CABLE B, THROTTLE (NOT AVAILABLE) This part replaces 17914-196-000.

17911-GK0-000

Unavailable

6

RUBBER, JUNCTION CASE SEAL

17915-196-000

Unavailable

7

COVER A, JOINT CASE

17916-196-000

Unavailable

8

PLATE, JOINT PIECE

17917-196-000

Unavailable

9

E-CLIP (3MM)

30158-700-010

$2.92

10

SWITCH ASSY., STARTER STOP

35130-GK0-670

Unavailable

11

SWITCH ASSY., TURN SIGNAL

35200-GK0-670

Unavailable

12

SWITCH ASSY., FR. STOP This part replaces 35340-GK0-000.

35340-GBJ-000

$21.26

12

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-003.

35340-GBJ-000

$21.26

12

SWITCH ASSY., FR. STOP This part replaces 35340-GN2-771.

35340-GBJ-000

$21.26

13

CABLE, RR. BRAKE

43450-GK0-000

Unavailable

14

CABLE, RR. BRAKE SECOND

43460-GK0-000

Unavailable

15

PLATE, EQUALIZER

43461-GJ5-000

Unavailable

16

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-GK0-670

Unavailable

17

GROMMET, CABLE

47512-196-000

Unavailable

18

GROMMET, RR. BRAKE (1ST)

47520-GAG-750

Unavailable

18

GROMMET, RR. BRAKE (1ST) This part replaces 47520-196-000.

47520-GAG-750

Unavailable

19

CASE, EQUALIZER

47601-GJ5-000

Unavailable

20

COVER, EQUALIZER BOX This part replaces 47603-GJ5-300.

47609-GJ5-000

Unavailable

20

COVER, EQUALIZER BOX

47609-GJ5-000

Unavailable

21

COVER, EQUALIZER BOX

47609-GJ5-000

Unavailable

22

PIPE, THROTTLE GRIP This part replaces 53141-125-770.

53141-125-771

$15.29

22

PIPE, THROTTLE GRIP

53141-125-771

$15.29

23

GRIP, R. HANDLE

53165-GA7-000

$6.48

24

GRIP, L. HANDLE

53166-GA7-000

$6.48

25

LEVER, R. HANDLEBAR (COO) This part replaces 53175-GF0-000.

53175-GGA-305

$12.88

25

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-670.

53175-GGA-305

$12.88

25

LEVER, R. HANDLEBAR (COO) This part replaces 53175-147-671.

53175-GGA-305

$12.88

26

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GF0-000.

53178-GGL-305

$14.62

26

LEVER, L. HANDLEBAR (COO) This part replaces 53178-GR2-000.

53178-GGL-305

$14.62

26

LEVER, L. HANDLEBAR (COO) This part replaces 53178-155-000.

53178-GGL-305

$14.62

26

LEVER, L. HANDLEBAR (COO) This part replaces 53178-187-000.

53178-GGL-305

$14.62

27

LEVER, PARKING BRAKE

53181-GK0-670

Unavailable

28

SPRING, LEVER RETURN

53182-155-010

$3.74

29

PIN, PARKING LEVER PIVOT

53183-155-000

$8.92

30

SCREW, HANDLE LEVER PIVOT (5MM)

90115-147-000

$2.72

31

SCREW, PAN (5X10)

93500-05010-0A

$1.49

32

SCREW, PAN (5X12)

93500-05012-0A

$1.49

33

SCREW, PAN (5X25)

93500-05025-0A

$1.49

34

SCREW, PAN (5X28)

93500-05028-0A

$1.49

35

SCREW, PAN (5X32)

93500-05032-0A

$1.49

36

SCREW, PAN (5X35)

93500-05035-0A

$1.49

37

NUT, HEX. (5MM)

94001-05000-0S

$2.74
