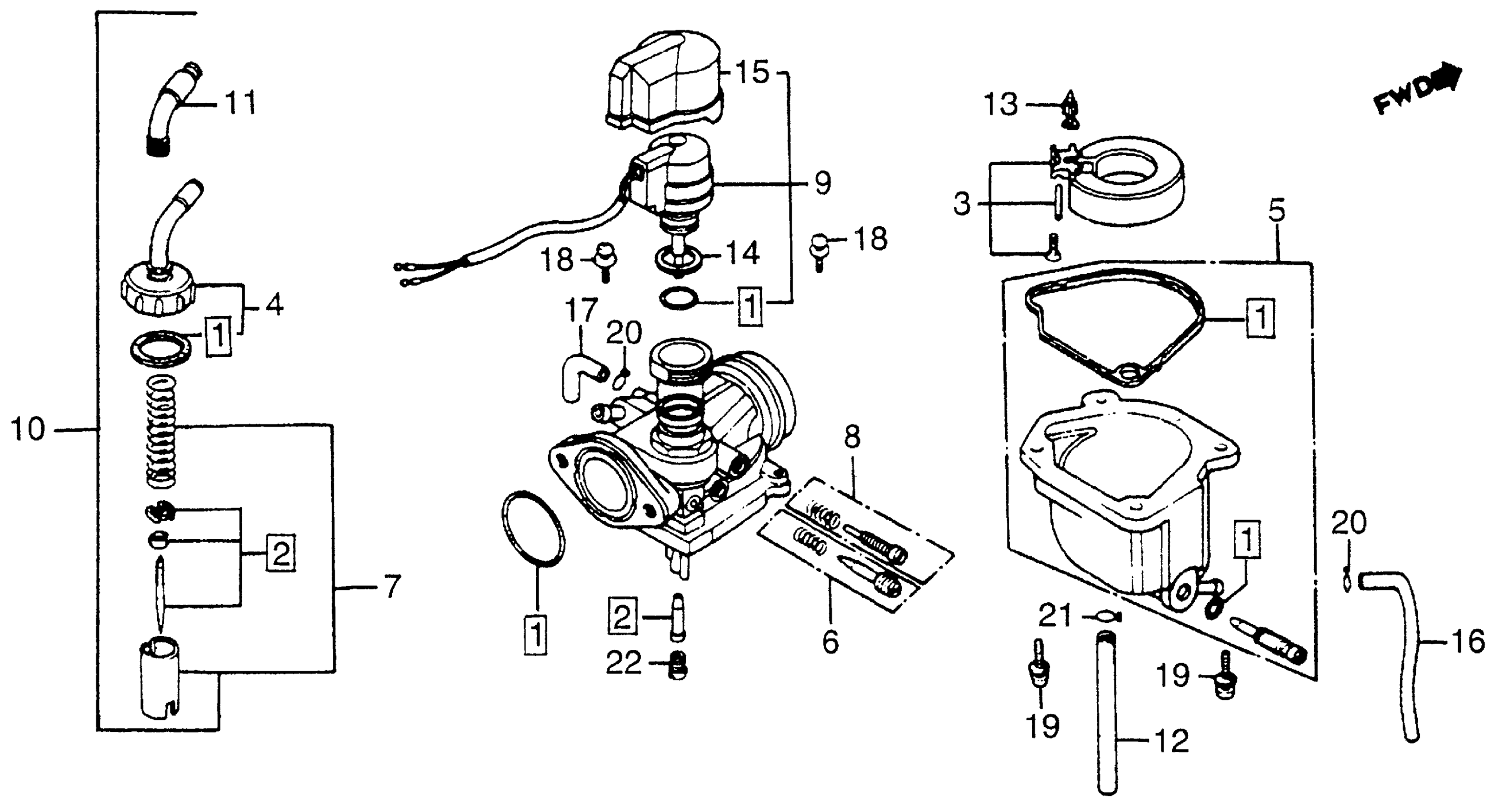

Honda NN50MDA (84) GYRO, JPN, VIN# JH2TB090-ES000003 TO JH2TB090-ES005212 CARBURETOR Diagram

GASKET SET This part replaces 16010-GJ2-004.

16010-GY3-515

$11.56

NEEDLE SET, JET

16012-GK0-671

Unavailable

FLOAT SET

16013-147-004

$44.62

TOP SET This part replaces 16014-GB0-831.

16014-098-980

Unavailable

TOP SET This part replaces 16014-GB2-003.

16014-098-980

Unavailable

CHAMBER SET, FLOAT | Use up to Engine SN PA27C A This part replaces 16015-GJ5-003.

16015-GJ5-013

Unavailable

CHAMBER SET, FLOAT | Use up to Engine SN PA27C A

16015-GJ5-013

Unavailable

CHAMBER SET, FLOAT | Use from Engine SN PA27C B

16015-GK0-671

Unavailable

SCREW SET

16016-197-004

Unavailable

VALVE SET, THROTTLE

16022-GJ5-003

Unavailable

SCREW SET B

16028-GC8-004

$16.35

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

VALVE SET, STARTER This part replaces 16046-GK0-671.

16046-GK0-673

Unavailable

CARBURETOR ASSY. | Use up to Engine SN ES005211 This part replaces 16100-GK0-671.

16100-GK0-033

Unavailable

CARBURETOR ASSY. This part replaces 16100-GK0-672.

16100-GK0-033

Unavailable

CAP, CABLE SEALING

16118-GB4-003

$13.07

TUBE, FUEL This part replaces 16143-469-004.

16199-KG4-405

$9.49

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

VALVE, FLOAT

16155-883-005

$20.11

PLATE, SET

16186-GJ2-004

Unavailable

CAP, HOLDER This part replaces 16190-GJ2-004.

16190-GR1-003

Unavailable

TUBE, AIR VENT (150MM)

16195-195-731

Unavailable

TUBE, AIR VENT

16199-GC7-004

Unavailable

SCREW-WASHER (4X8)

93892-04008-08

$1.49

SCREW-WASHER (4X12)

93892-04012-08

$1.49

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B6.5)

95002-02650

$1.49

JET, MAIN (#70)

99101-187-0700

Unavailable
