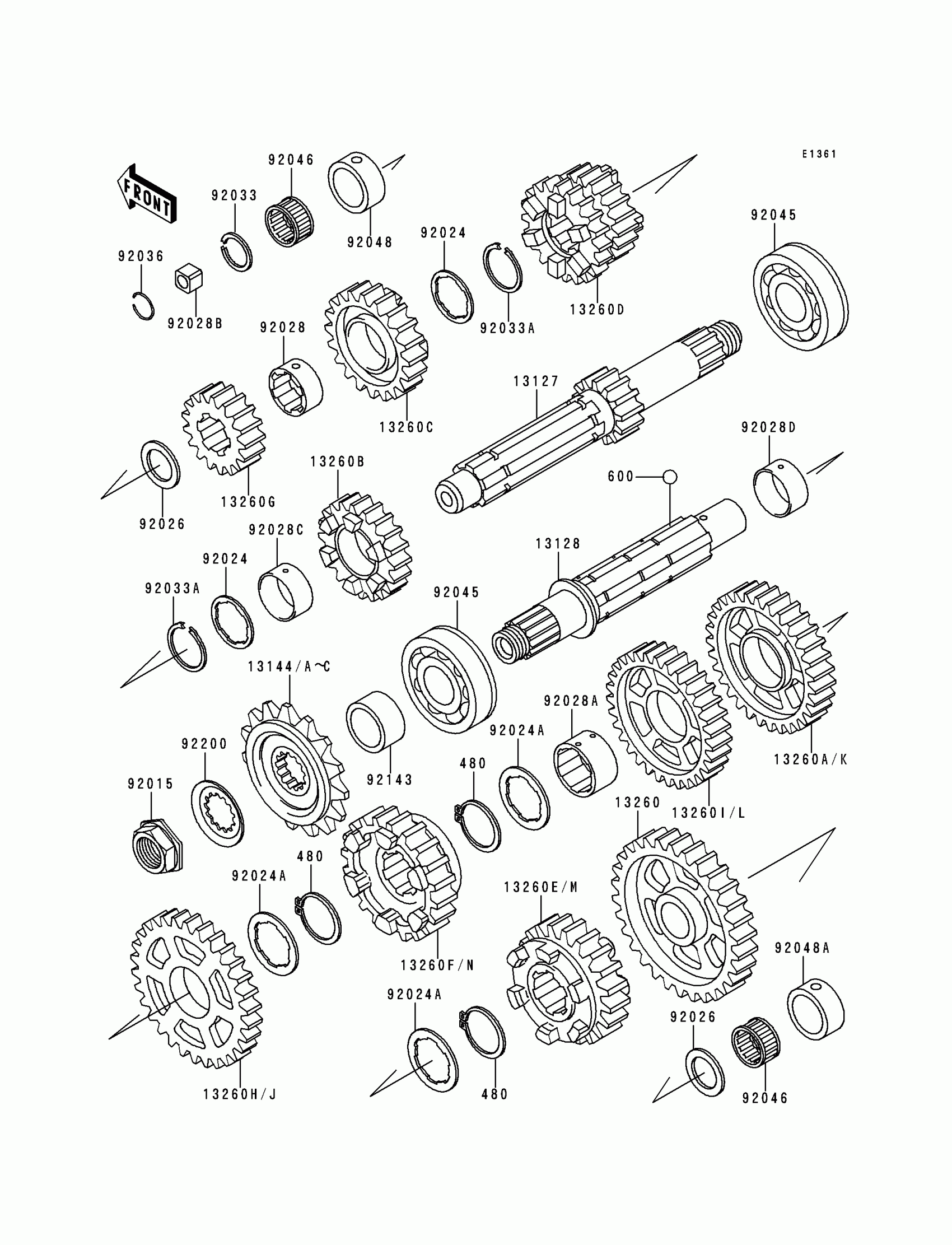

Kawasaki Ninja® ZX™-9R Transmission Diagram

SHAFT-TRANSMISSION INPUT,14T

13127-1205

Unavailable

SHAFT-TRANSMISSION OUTPUT

13128-1181

Unavailable

SPROCKET-OUTPUT,17T(#530)

13144-1009

Unavailable

SPROCKET-OUTPUT,15T(#530)

13144-1117

Unavailable

SPROCKET-OUTPUT,16T

13144-1275

$54.13

GEAR,OUTPUT LOW,40T

13260-1165

Unavailable

GEAR,INPUT 5TH,27T

13260-1400

Unavailable

GEAR,INPUT TOP,29T

13260-1401

$191.84

GEAR,INPUT 3RD&4TH,20T&23T

13260-1410

Unavailable

GEAR,INPUT 2ND,18T

13260-1422

Unavailable

GEAR,OUTPUT 2ND,37T

13260-1490

Unavailable

GEAR,OUTPUT 3RD,33T

13260-1491

Unavailable

GEAR,OUTPUT 4TH,32T

13260-1492

Unavailable

GEAR,OUTPUT 5TH,33T

13260-1493

Unavailable

GEAR,OUTPUT TOP,32T

13260-1494

$178.10

NUT,20MM

92015-1963

$14.90

WASHER,TOOTHED,26X35.5X1.5

92024-042

$11.07

WASHER,TOOTHED,30.3X40X1.5

92024-043

$13.07

SPACER,22X35.5X2.1

92026-1224

$9.57

BUSHING,INPUT TOP GEAR

92028-1255

$40.34

BUSHING,OUTPUT 3RD&4TH

92028-1363

$45.49

BUSHING

92028-1448

Unavailable

BUSHING,INPUT GEAR

92028-1449

$25.59

BUSHING,OUTPUT 2ND

92028-1450

$28.99

RING-SNAP,20X25.5X1.2

92033-025

$4.96

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

RING-SNAP

92036-005

$4.07

BEARING-BALL,6305N2SH2

92045-1224

$36.90

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

RACE,NEEDLE BEARING

92048-1066

$34.85

RACE,0RZ30X38X17PX1

92048-1067

$51.46

COLLAR,ENGINE SPROCKET

92143-1757

Unavailable

CIRCLIP

480J2900

$6.22

BALL-STEEL,5/32

600A0500

$0.81

WASHER

92200-1065

$6.63
