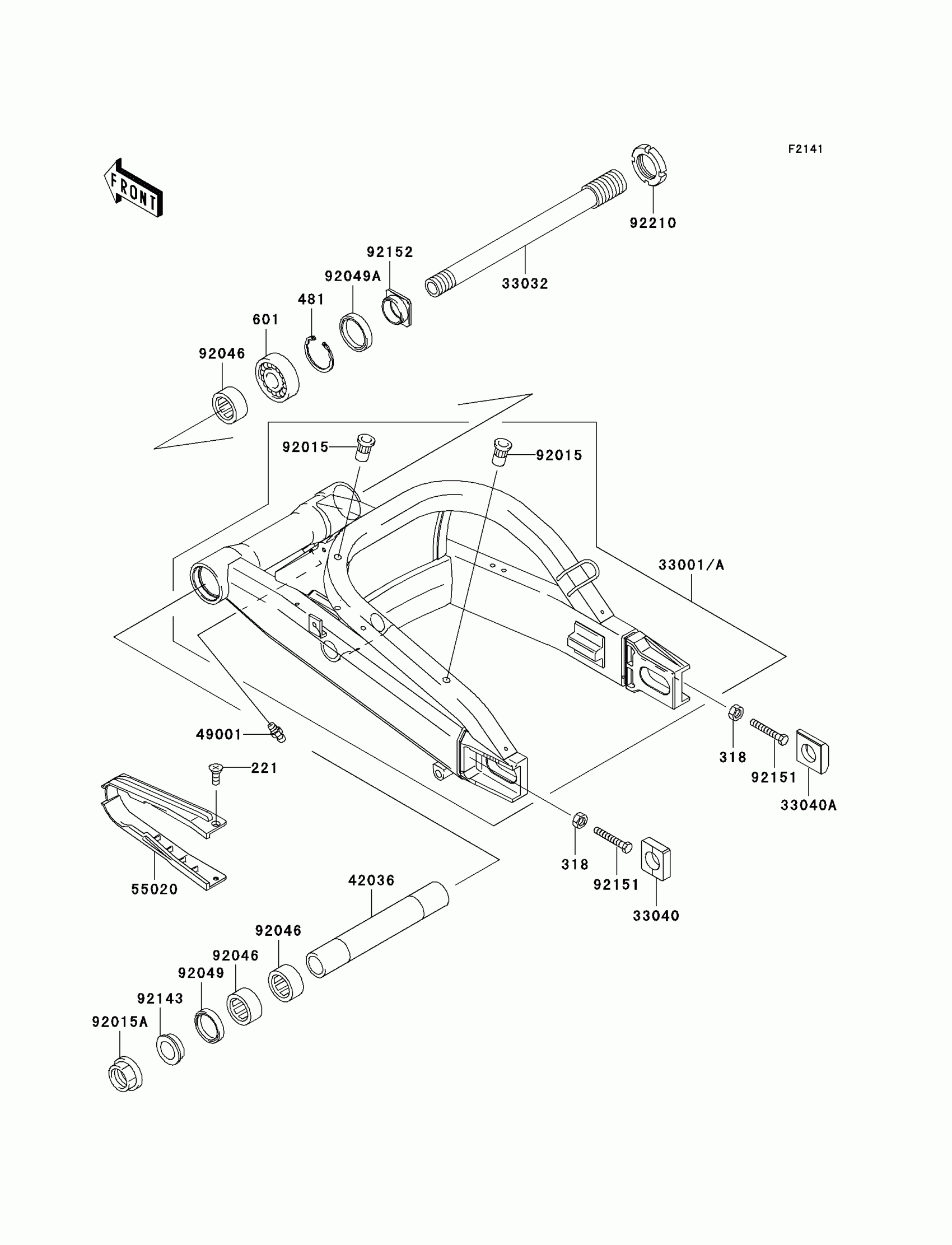

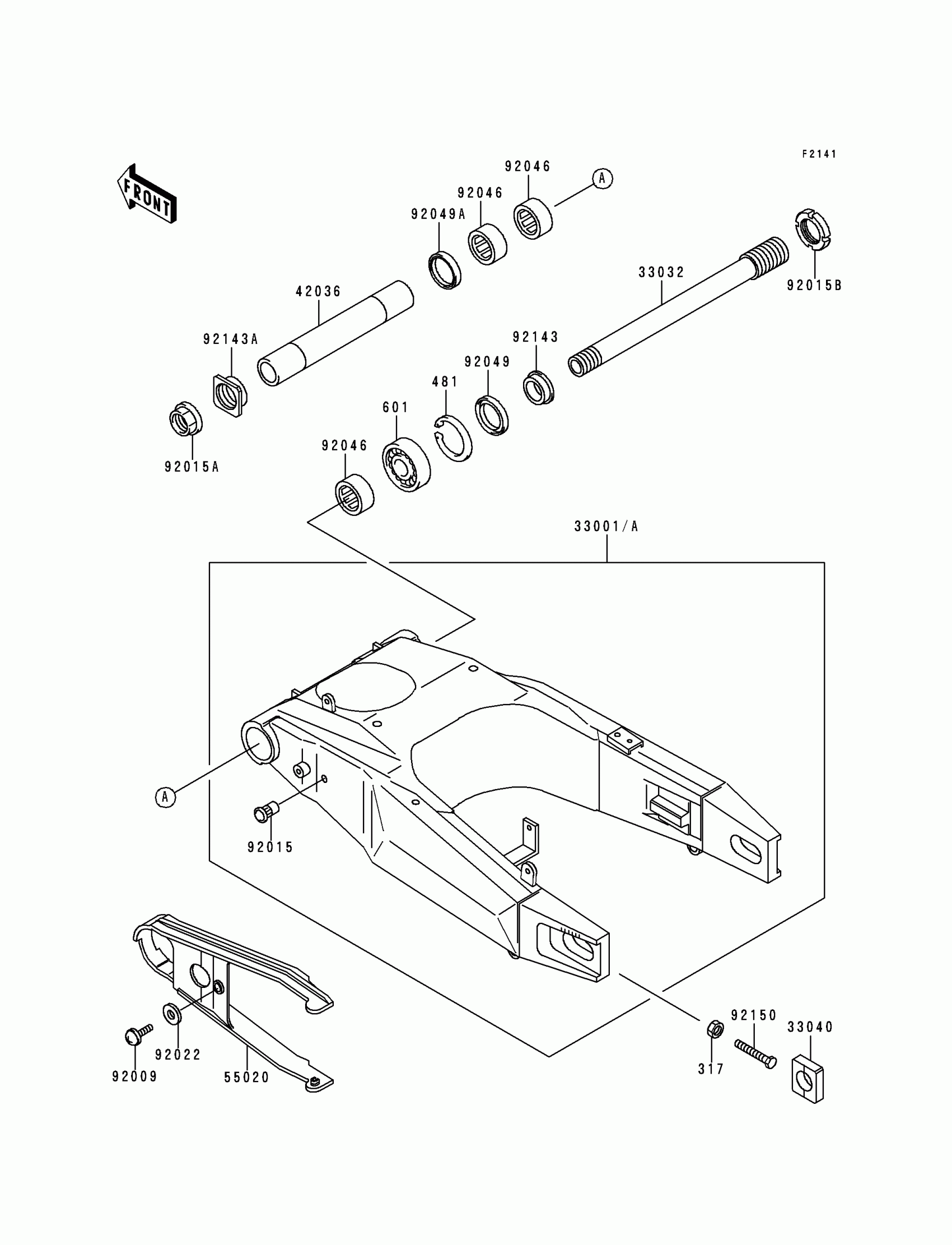

Kawasaki Ninja® ZX™-9R Swingarm Diagram

Description

Price

317

NUT-HEX-SMALL,8MM

317G0800

$1.63

481

CIRCLIP-TYPE-C,47MM

481J4700

$4.22

601

BEARING-BALL,#6005U

601B6005U

$27.22

33001A

ARM-COMP-SWING,G.GRAY

33001-1481-GD

Unavailable

33032

SHAFT-SWING ARM

33032-1173

$154.34

33040

ADJUSTER-CHAIN,RH

33040-1114

$19.28

42036

SLEEVE,SWING ARM,L=224.5

42036-1312

$79.46

55020

GUARD,CHAIN

55020-1532

Unavailable

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,POP,6MM,L=16.5

92015-1792

$4.69

92015A

NUT,FLANGED,25MM

92015-1845

$25.20

92015B

NUT,FRAME PIVOT,32MM

92015-1930

$36.44

92022

WASHER,6.5X16X1

92022-1143

$3.92

92046

BEARING-NEEDLE,BM3520

92046-1205

$30.34

92049

SEAL-OIL,MHA 35X47X5

92049-1381

$13.08

92049A

SEAL-OIL,KC 38 45 6

92049-1419

$17.36

92143

COLLAR,SWING ARM,L=12.5

92143-1481

$30.84

92143A

COLLAR,SWING ARM,L=15.5

92143-1681

$33.90

92150

BOLT,8X55

92150-1350

$2.15
