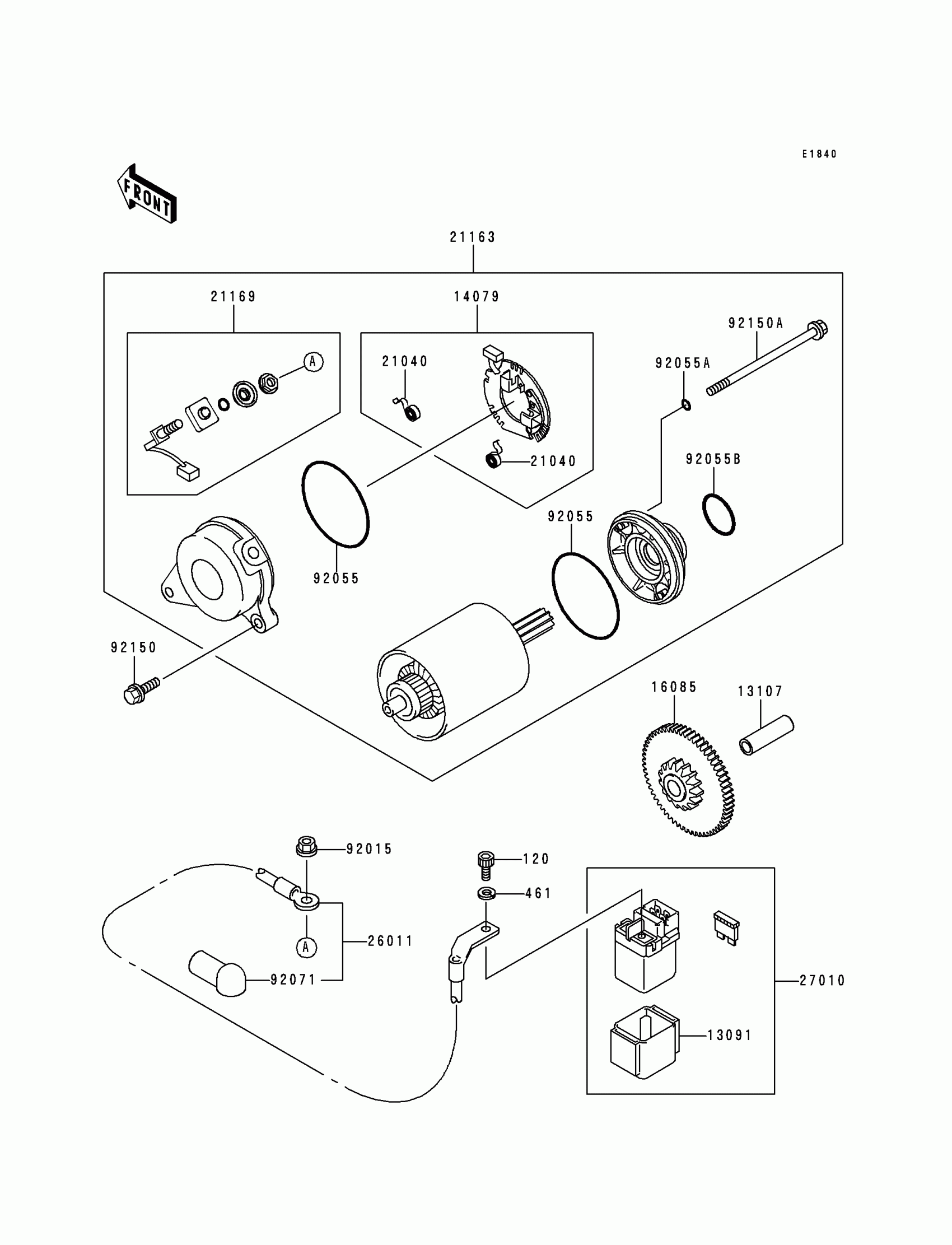

Kawasaki Ninja® ZX™-9R Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,5X10

120S0510

$1.60

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

13107

SHAFT,IDLER GEAR

13107-1377

$6.22

13194

CLUTCH-ONEWAY

13194-1096

$106.12

14079

HOLDER-ASSY,CARBON BRUSH

14079-1082

$45.19

16085

GEAR,CLUTCH ONEWAY

16085-1303

$126.48

21040

SPRING-BRUSH

21040-1051

$8.13

21163

STARTER-ELECTRIC

21163-1288

$606.71

21169

TERMINAL,STARTER

21169-1058

$59.07

26011

WIRE-LEAD,STARTER

26011-1689

$67.18

27010

SWITCH

27010-1380

$143.61

59051

GEAR-SPUR,IDLER

59051-1343

$71.26

92015

NUT

92015-1623

$5.00

92048

RACE,CLUTCH ONEWAY

92048-1102

$65.53

92055

RING-O,62MM

92055-1260

$10.35

92055A

RING-O,4.5MM

92055-1261

$2.87

92055B

RING-O,24.4X3.1

92055-1262

$12.46

92071

GROMMET,STARTER TERMINAL

92071-1120

$13.08

92150

BOLT

92150-1237

$8.06

92151

BOLT,6X25

92151-1130

$2.80

92151A

BOLT,6X14

92151-1335

$3.32
