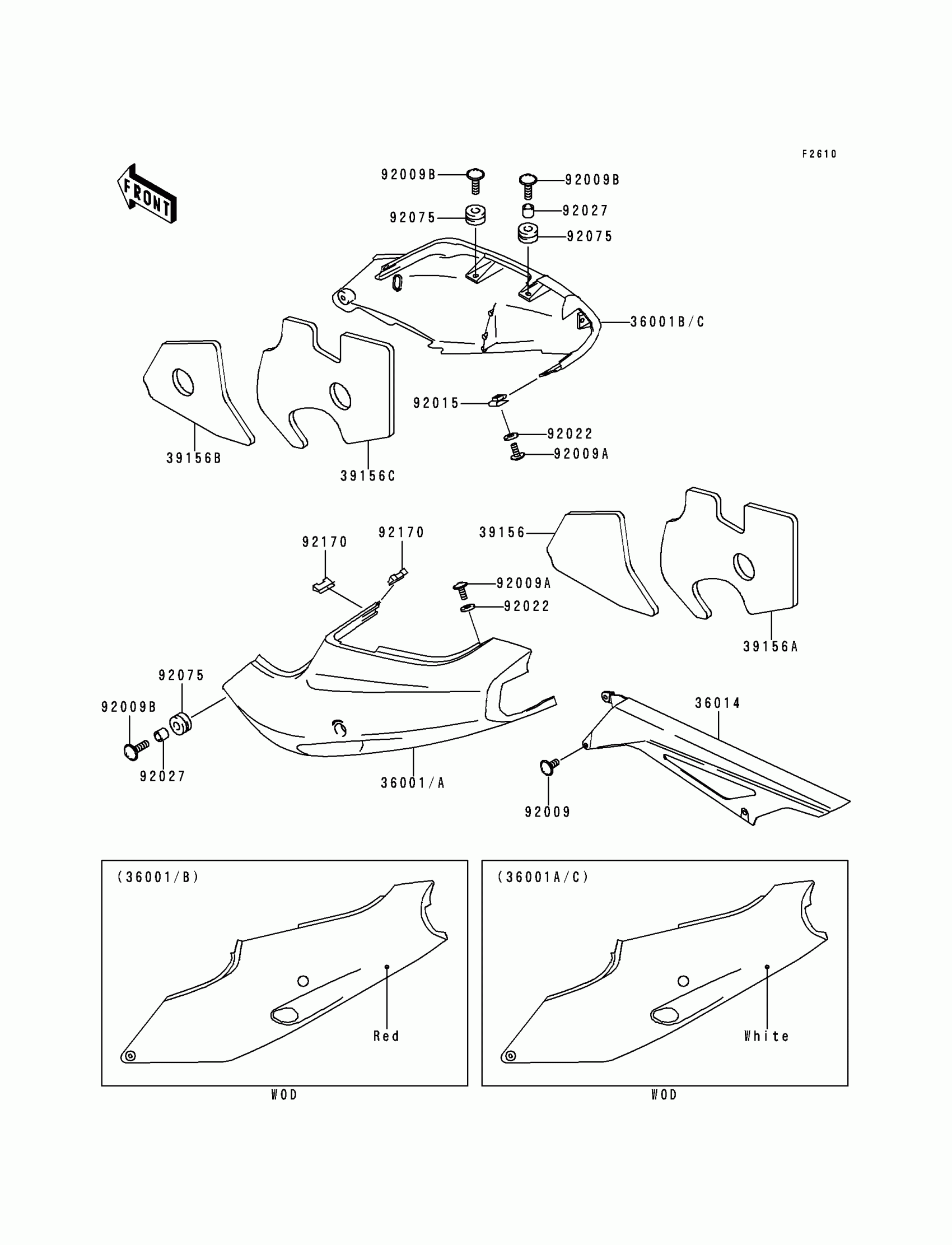

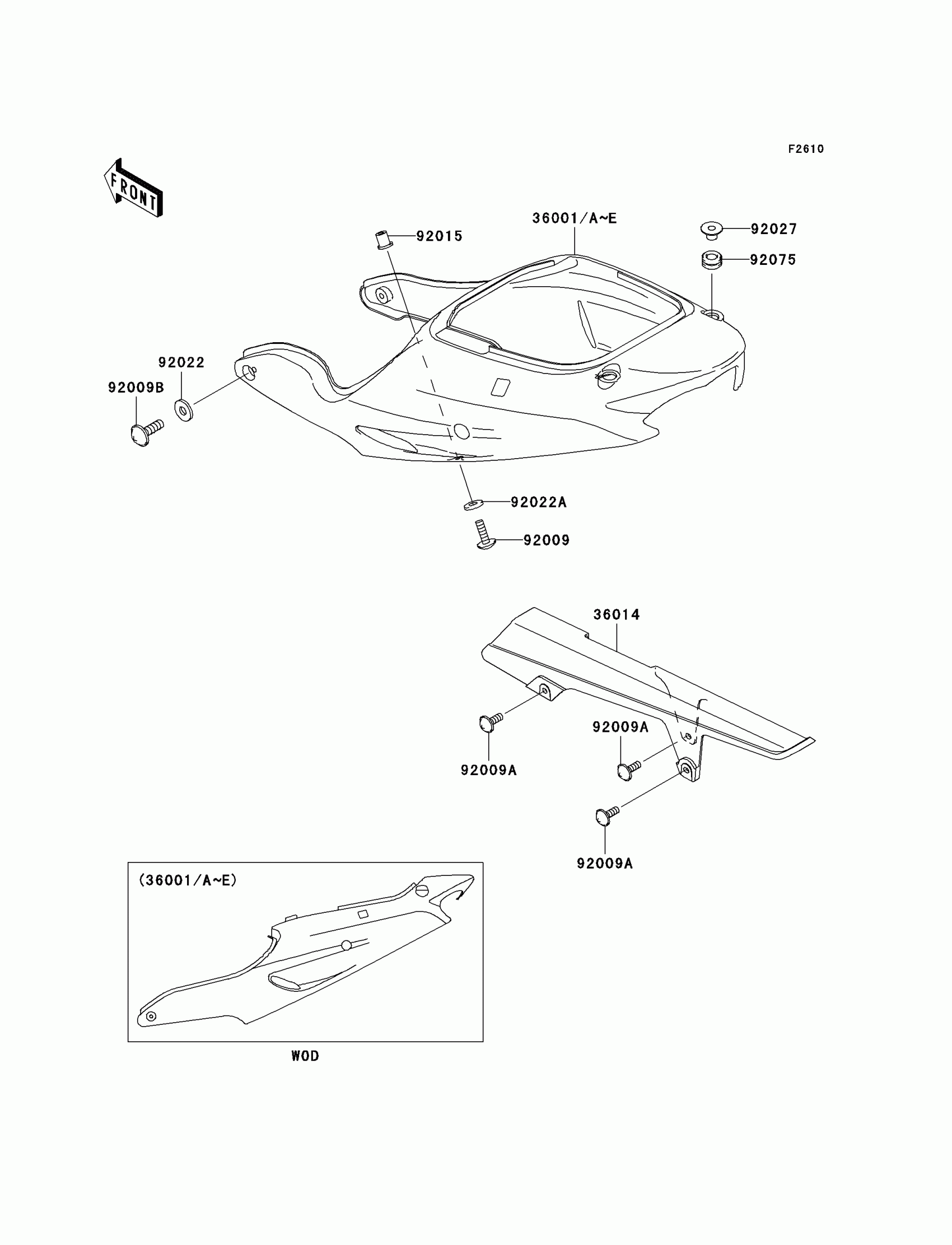

Kawasaki Ninja® ZX™-9R Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,F.RED

36001-1565-B1

Unavailable

36001A

COVER-SIDE,LH,P.A.WHITE

36001-1565-R1

Unavailable

36001B

COVER-SIDE,RH,F.RED

36001-1567-B1

Unavailable

36001C

COVER-SIDE,RH,P.A.WHITE

36001-1567-R1

Unavailable

36014

CASE-CHAIN

36014-1189

Unavailable

39156

PAD,SIDE COVER,LH,FR

39156-1396

Unavailable

39156A

PAD,SIDE COVER,LH,RR

39156-1397

Unavailable

39156B

PAD,SIDE COVER,RH,FR

39156-1398

Unavailable

39156C

PAD,SIDE COVER,RH,RR

39156-1399

Unavailable

92009

SCREW,6X14

92009-1288

$3.92

92009A

SCREW,5X16,BLACK

92009-1654

$3.13

92009B

SCREW

92009-1664

$4.50

92015

NUT,5MM

92015-1798

$6.57

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92075

DAMPER

92075-1634

$4.69

92170

CLAMP

92170-1440

$5.96
