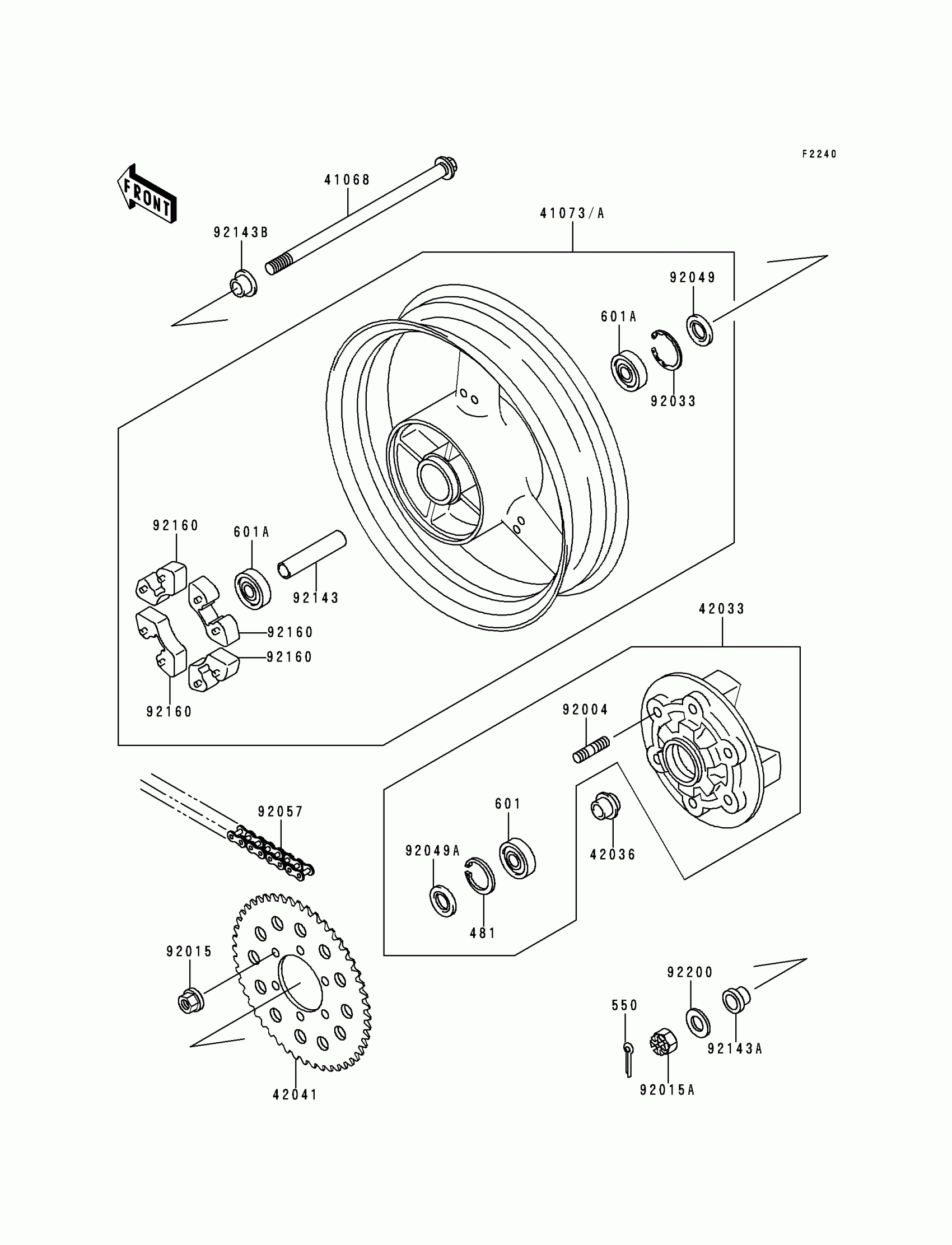

Kawasaki Ninja® ZX™-9R Rear Wheel/Chain Diagram

Description

Price

481

CIRCLIP

481J5500

$8.84

550

PIN-COTTER,4.0X40

550D4040

$1.36

601

BEARING-BALL,#6006G

601B6006G

$29.13

601A

BEARING-BALL,#6205UG

601B6205UG

$33.41

41068

AXLE,RR

41068-1326

$98.49

41073

WHEEL-ASSY,RR,L.GREEN

41073-1547-CJ

Unavailable

41073A

WHEEL-ASSY,RR,G.GRAY

41073-1547-GE

$1,012.34

42033

COUPLING-ASSY,RR HUB

42033-1144

$248.27

42036

SLEEVE,RR HUB,L=22

42036-1279

$29.08

42041

SPROCKET-HUB,44T

42041-1417

$108.67

92004

STUD,10X19

92004-1151

$8.92

92015

NUT,10MM

92015-1720

$5.24

92015A

NUT,CASTLE,24MM

92015-1844

$13.60

92033

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,RR HUB

92049-1375

$19.15

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

$17.95

92057

CHAIN,DRIVE,EK50UV-XX112L

92057-1385

$293.45

92143

COLLAR,RR HUB,L=133

92143-1473

Unavailable

92143A

COLLAR,RR AXLE,LH,L=20

92143-1474

Unavailable

92143B

COLLAR,RR AXLE,RH,L=26

92143-1475

$48.27

92160

DAMPER,SHOCK,RR HUB

92160-1485

$25.61

92200

WASHER,25.5X38X4.5

92200-1081

$7.71
