Description

Price

130

BOLT-FLANGED

130Z0870

$9.04

13091

HOLDER,COVER

13091-1327

$19.45

13091A

HOLDER,BEARING

13091-1328

$13.56

13091B

HOLDER,BRUSH

13091-1465

$111.23

13091C

RECTIFIER

13091-1466

$510.53

13091D

HOLDER,BEARING

13091-1748

$14.90

13227

HOUSING,GENERATOR

13227-1106

$730.65

14014

PLATE-POSITION

14014-1105

$72.40

14090

COVER,RECTIFIER

14090-1113

$16.34

14090A

COVER,GENERATOR

14090-1114

$127.10

21001

GENERATOR

21001-1115

$1,433.79

21007

ROTOR,GENERATOR

21007-1229

$610.49

21039

BRUSH,CARBON

21039-1052

$28.46

21066

REGULATOR-VOLTAGE

21066-1076

$415.67

26011

WIRE-LEAD,GENERATOR

26011-1497

$92.95

31011

FRAME,GENERATOR

31011-1067

Unavailable

42034

COUPLING

42034-1056

$75.76

92002

BOLT,8X63

92002-1215

$8.76

92002A

SCREW,5X17.5

92002-1380

$5.05

92004

STUD

92004-1196

$24.67

92009

SCREW

92009-1645

$9.21

92009A

SCREW

92009-1646

$9.81

92015

NUT,10MM

92015-1850

$8.12

92015A

NUT

92015-1851

$4.87

92045

BEARING-BALL,#6003

92045-1248

$53.31

92045A

BEARING-BALL,#6002NC

92045-1249

$53.37

92049

SEAL-OIL

92049-1390

$37.70

92055

RING-O

92055-1496

$29.29

92081

SPRING,BRUSH

92081-1759

$8.03

92151

SCREW,4X6

92151-1245

$2.69

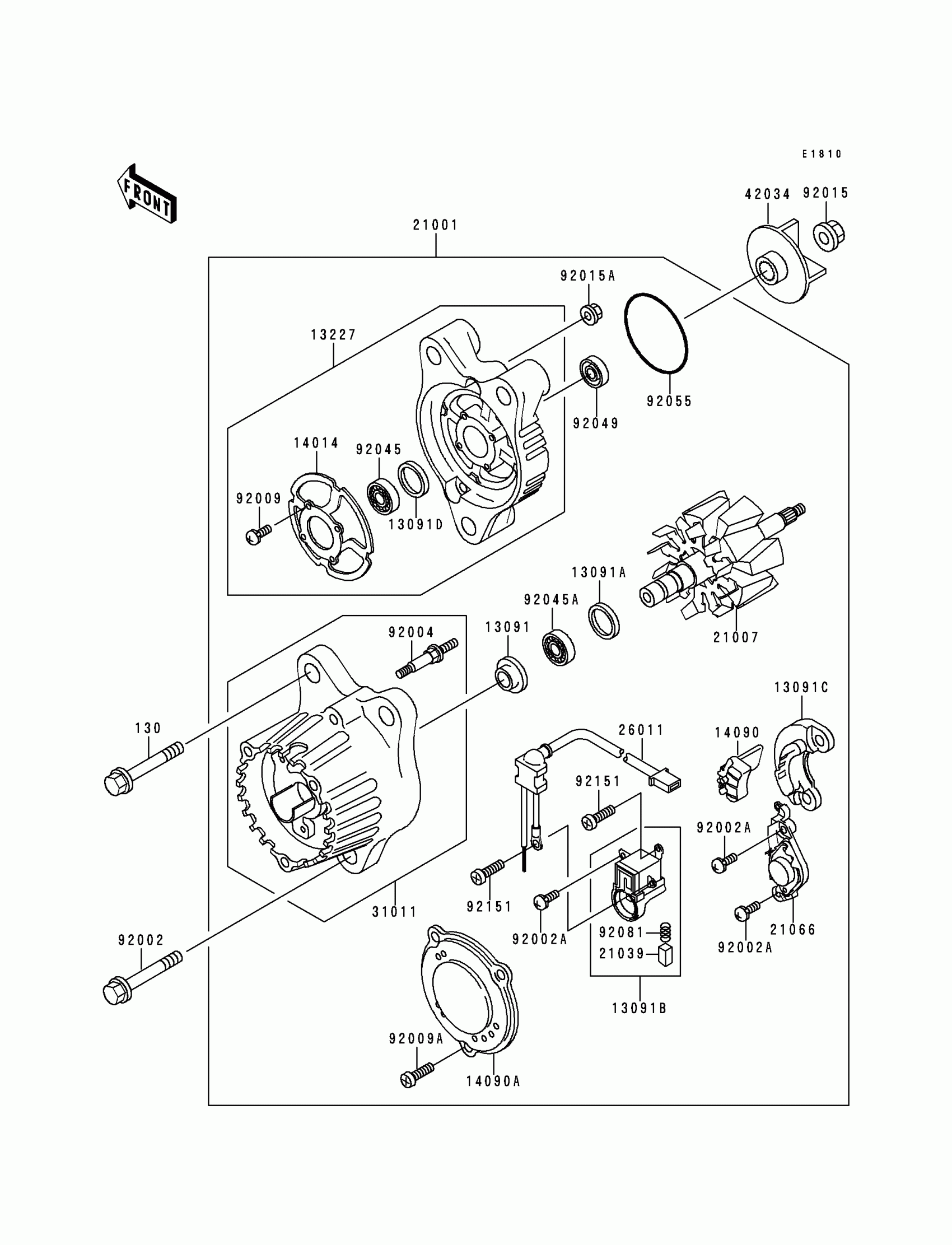

Kawasaki Ninja® ZX™-9R Generator Diagram

BOLT-FLANGED

HOLDER,COVER

HOLDER,BEARING

HOLDER,BRUSH

RECTIFIER

HOLDER,BEARING

HOUSING,GENERATOR

PLATE-POSITION

COVER,RECTIFIER

COVER,GENERATOR

GENERATOR

ROTOR,GENERATOR

BRUSH,CARBON

REGULATOR-VOLTAGE

WIRE-LEAD,GENERATOR

FRAME,GENERATOR

COUPLING

BOLT,8X63

SCREW,5X17.5

STUD

SCREW

SCREW

NUT,10MM

NUT

BEARING-BALL,#6003

BEARING-BALL,#6002NC

SEAL-OIL

RING-O

SPRING,BRUSH

SCREW,4X6
