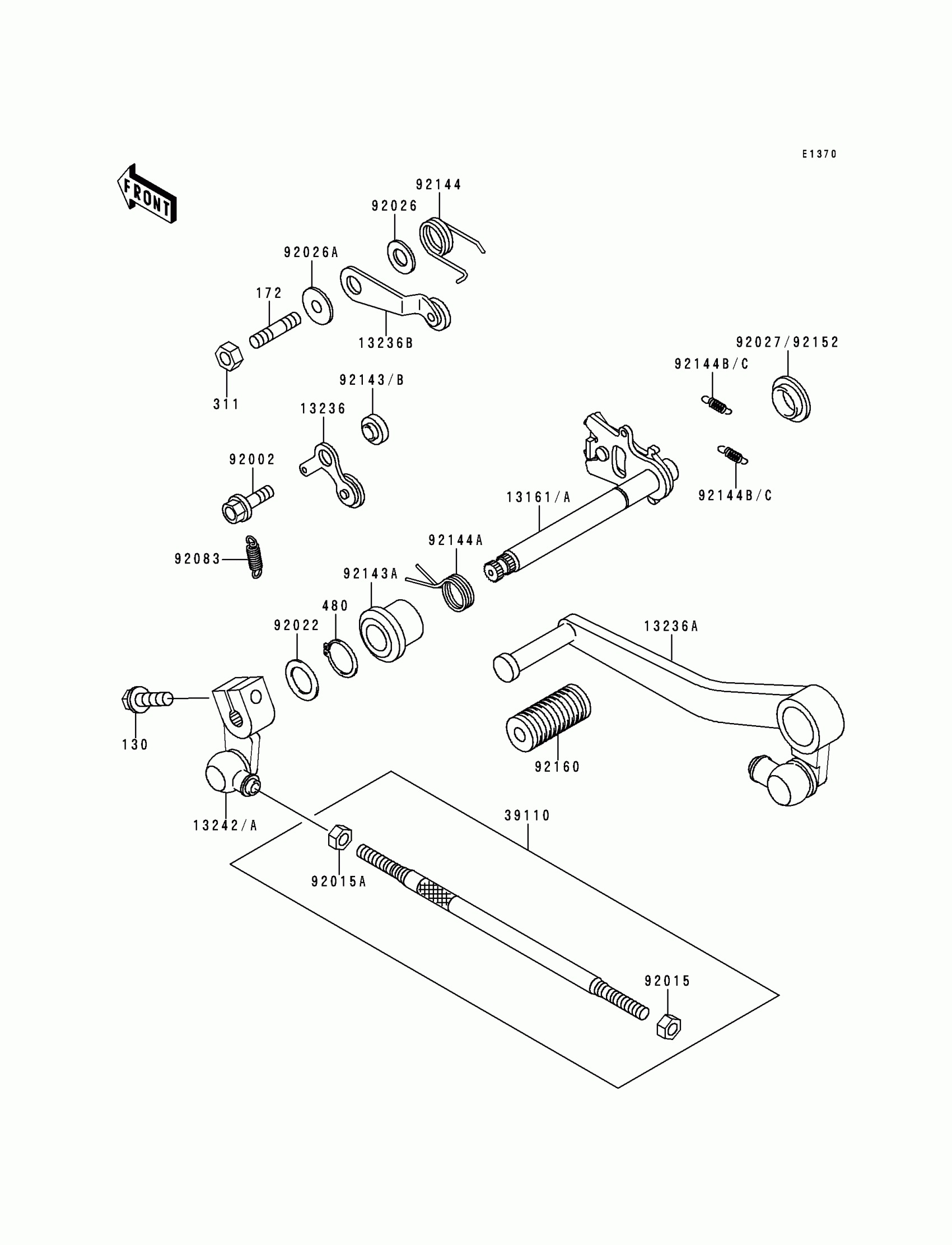

Kawasaki Ninja® ZX™-9R Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1193

$94.05

13236

LEVER-COMP,POSITION

13236-1189

Unavailable

13236A

LEVER-COMP,CHANGE PEDAL

13236-1254

$122.88

13242A

LEVER-ASSY-CHANGE

13242-1326

Unavailable

39110

ROD-ASSY-TIE

39110-1105

$33.36

92002

BOLT,6X16

92002-1571

$4.17

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92022

WASHER,13.3X20X1

92022-1496

$2.99

92083

SPRING,CHANGE DRUM LEVER

92083-012

$3.54

92143

COLLAR

92143-1055

$5.61

92143A

COLLAR,RETURN SPRING

92143-1498

$8.10

92144A

SPRING,CHANGE SHAFT RETURN

92144-1628

$9.14

92144C

SPRING,CHANGE LEVER

92144-1975

$4.80

92152

COLLAR

92152-1075

$3.19

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
