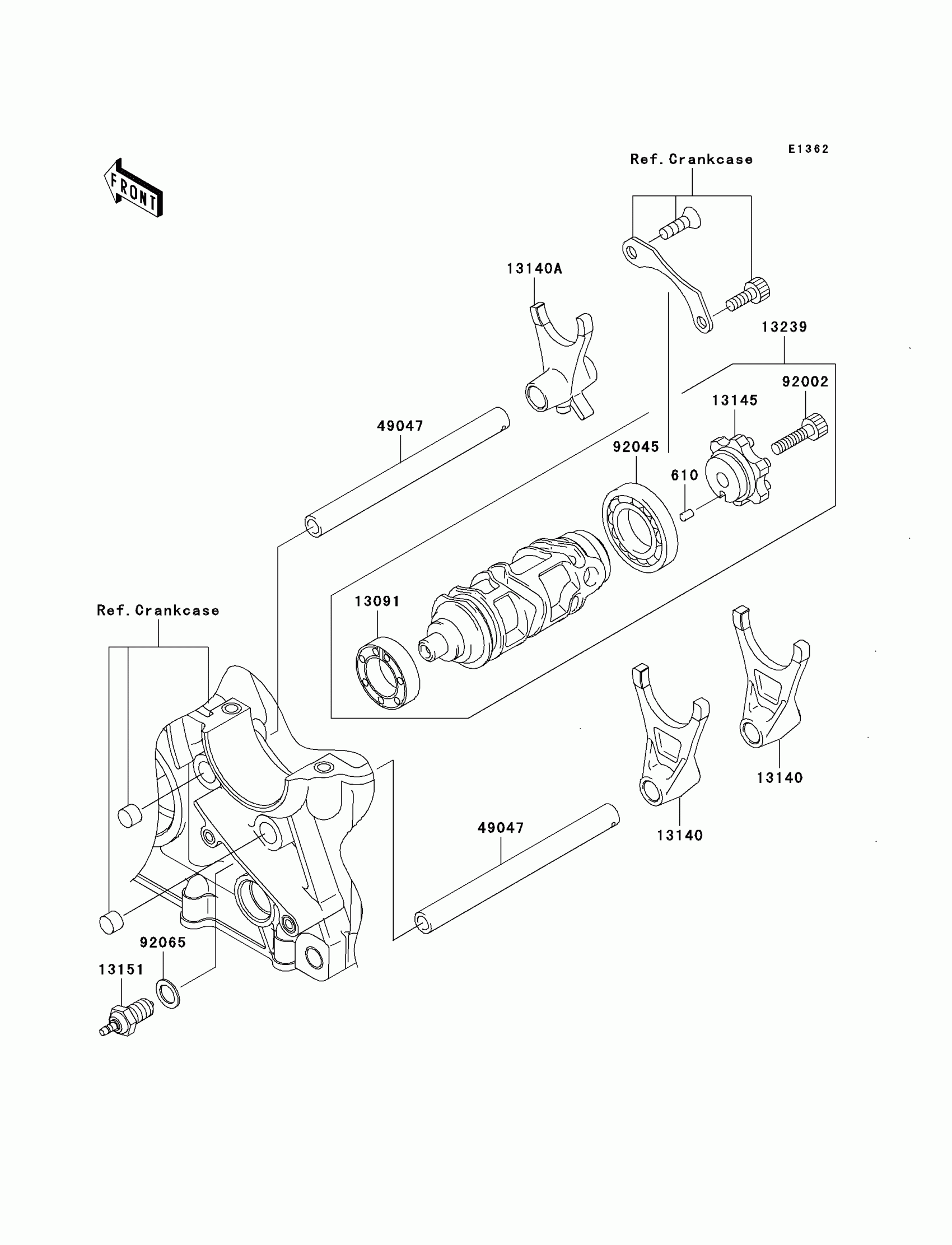

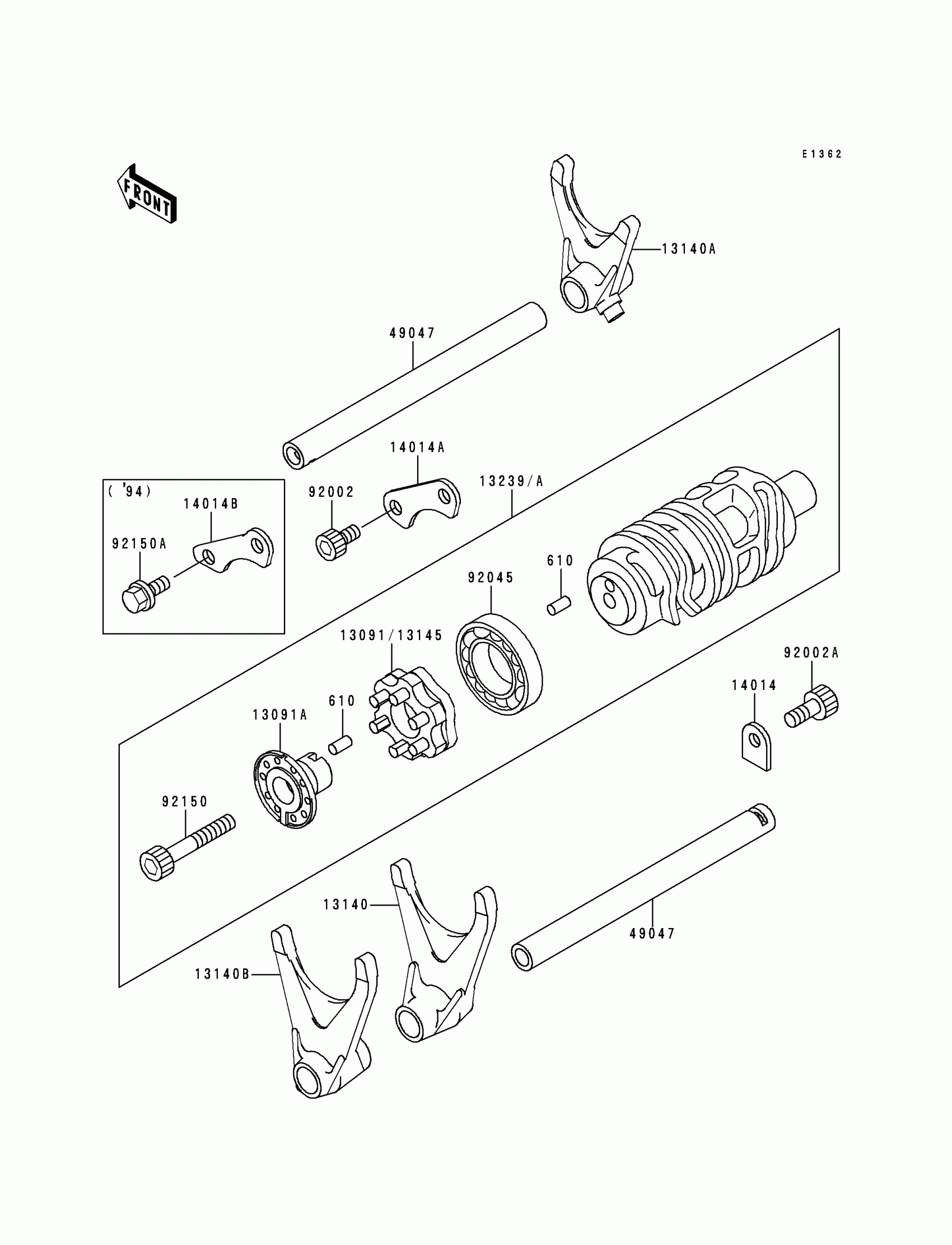

Kawasaki Ninja® ZX™-9R Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$4.31

13091

HOLDER,CHANGE DRUM

13091-1722

$60.18

13091A

HOLDER,CHANGE DRUM

13091-1723

Unavailable

13140

FORK-SHIFT,OUTPUT,TOP

13140-1199

Unavailable

13140A

FORK-SHIFT,INPUT,3RD&4TH

13140-1200

Unavailable

13140B

FORK-SHIFT,OUTPUT,5TH

13140-1201

$106.06

13239

DRUM-ASSY-CHANGE

13239-1168

Unavailable

14014

PLATE-POSITION,ROD

14014-1080

Unavailable

14014A

PLATE-POSITION

14014-1104

Unavailable

49047

ROD-SHIFT

49047-1082

$32.20

92002

BOLT,SOCKET,6X14

92002-1192

$5.59

92002A

BOLT,SOCKET,6X12

92002-1796

$4.69

92045

BEARING-BALL,16005

92045-1045

$28.25

92150

BOLT,SOCKET,6X35

92150-1484

$6.22
