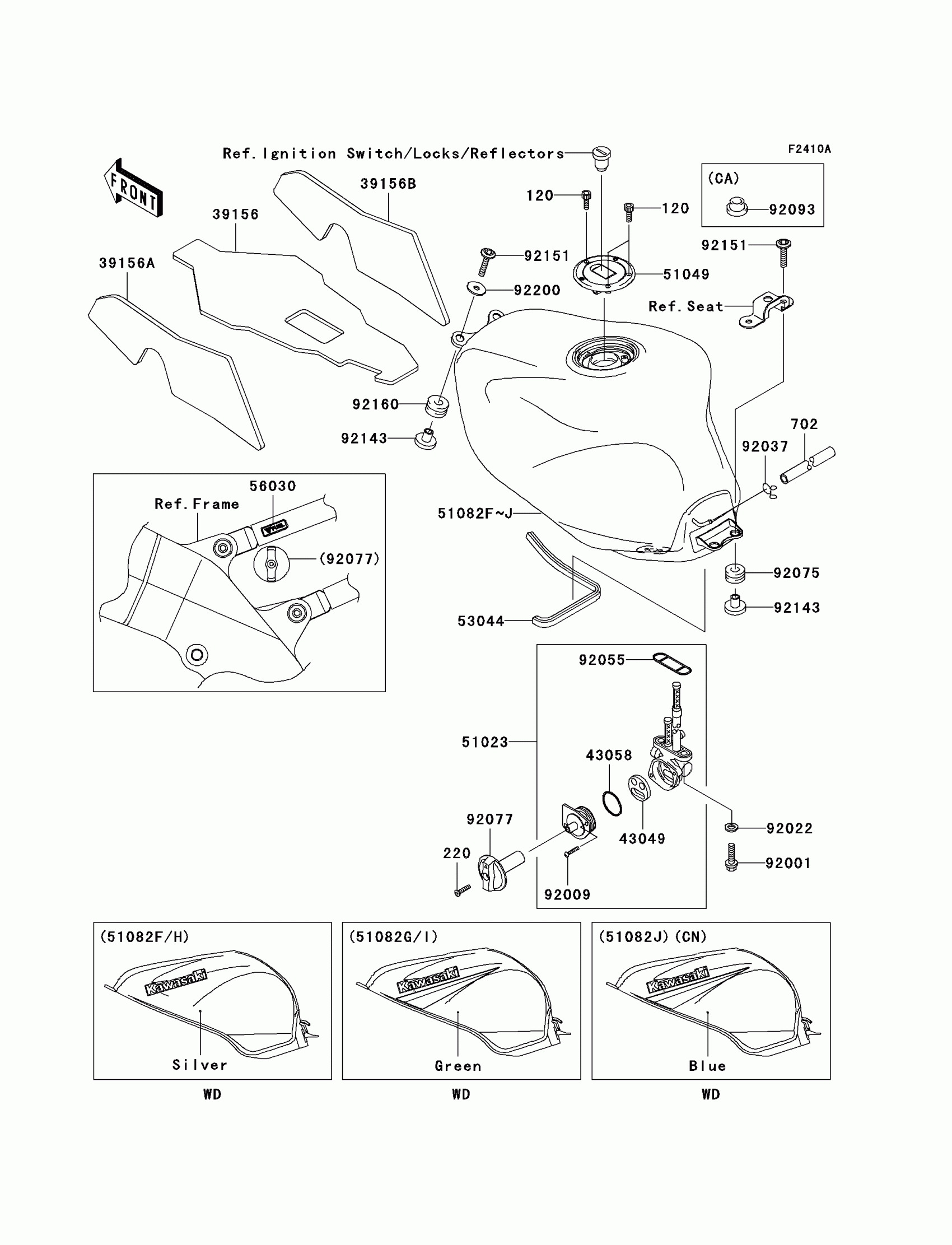

Kawasaki Ninja® ZX™-9R Fuel Tank(ZX900-F2) Diagram

#

Description
Price

39156

PAD,FUEL TANK,CNT

39156-1600

$86.56

39156A

PAD,FUEL TANK,LH

39156-1601

$25.73

39156B

PAD,FUEL TANK,RH

39156-1602

$34.80

43049

PACKING,TAP VALVE

43049-1099

$9.37

43058

RING,TAP LEVER

43058-1083

$6.62

51023

TAP-ASSY,FUEL

51023-1318

$132.08

51049

CAP-TANK,FUEL

51049-1127

$113.81

53044

TRIM,L=490

53044-1209

$13.47

56030

LABEL,FUEL TAP

56030-1195

Unavailable

92001

BOLT,6X25

92001-1524

$1.54

92009

SCREW,3X8

92009-1386

$4.10

92022

WASHER-PLAIN

92022-183

$2.99

92037

CLAMP,TUBE

92037-010

$2.99

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92075

DAMPER RUBBER,RR FENR

92075-209

$3.57

92077

KNOB,FUEL TAP

92077-1123

$16.32

120

BOLT-SOCKET,5X16

120S0516

Unavailable

220

SCREW-PAN-CROS,4X16

220C0416

Unavailable

702

TUBE-RUBBER,6X520

702A06520

$20.58

92143

COLLAR

92143-1515

$16.82

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92160

DAMPER

92160-1162

$3.81

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

51082F

TANK-COMP-FUEL,M.S.SILVER

51082-5397-474

Unavailable

51082G

TANK-COMP-FUEL,L.GREEN

51082-5398-7F

$1,561.24

51082H

TANK-COMP-FUEL,M.S.SILVER

51082-5412-474

$1,373.62

51082I

TANK-COMP-FUEL,L.GREEN

51082-5413-7F

$1,373.62

51082J

TANK-COMP-FUEL,M.C.BLUE

51082-5427-469

Unavailable

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93
