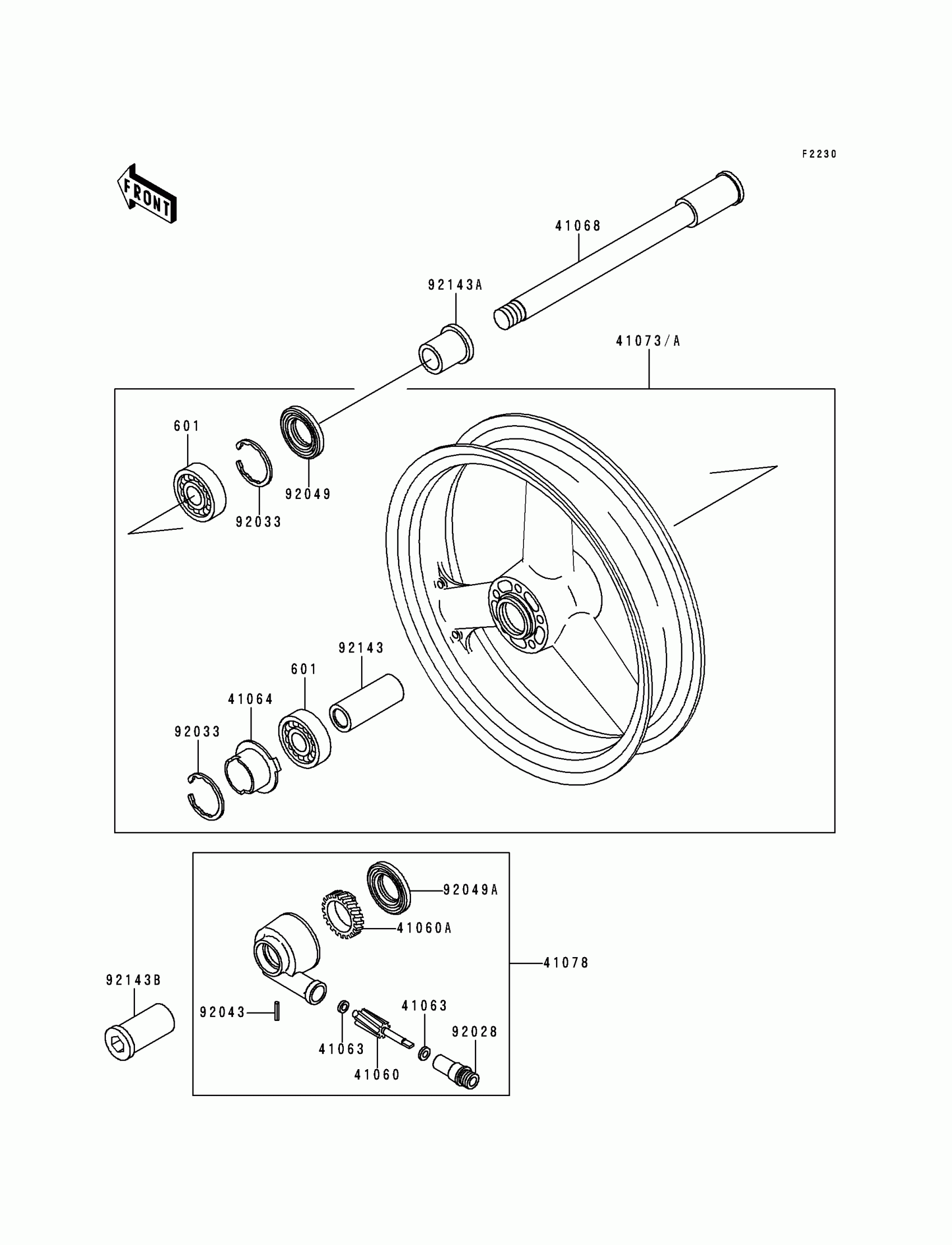

Kawasaki Ninja® ZX™-9R Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6005UU

601B6005UU

$27.65

41060

GEAR-METER SCREW,9T

41060-1140

$21.74

41060A

GEAR-METER SCREW,24T

41060-1141

$30.88

41063

WASHER,5.1X9X0.4

41063-001

$4.69

41064

RECEIVER-SPEEDOMETER

41064-1055

$15.92

41068

AXLE,FR

41068-1327

$87.78

41073

WHEEL-ASSY,FR,L.GREEN

41073-1496-CJ

Unavailable

41073A

WHEEL-ASSY,FR,G.GRAY

41073-1496-GE

$919.40

41078

CASE-ASSY-METER GEAR

41078-1082

$118.98

92028

BUSHING,METER GEAR CASE

92028-1634

$18.24

92033

RING-SNAP,47MM

92033-1042

$4.22

92043

PIN,SPRING,3X18

92043-1454

$4.38

92049

SEAL-OIL,BJN 32 47 5

92049-1377

$13.00

92049A

SEAL-OIL,BJN-C2 35 52 5

92049-1378

$14.64

92143

COLLAR,FR HUB,L=94

92143-1476

$33.66

92143A

COLLAR,FR AXLE,RH,L=17.5

92143-1477

$36.45

92143B

COLLAR,FR AXLE,LH,L=44.5

92143-1478

$44.94
