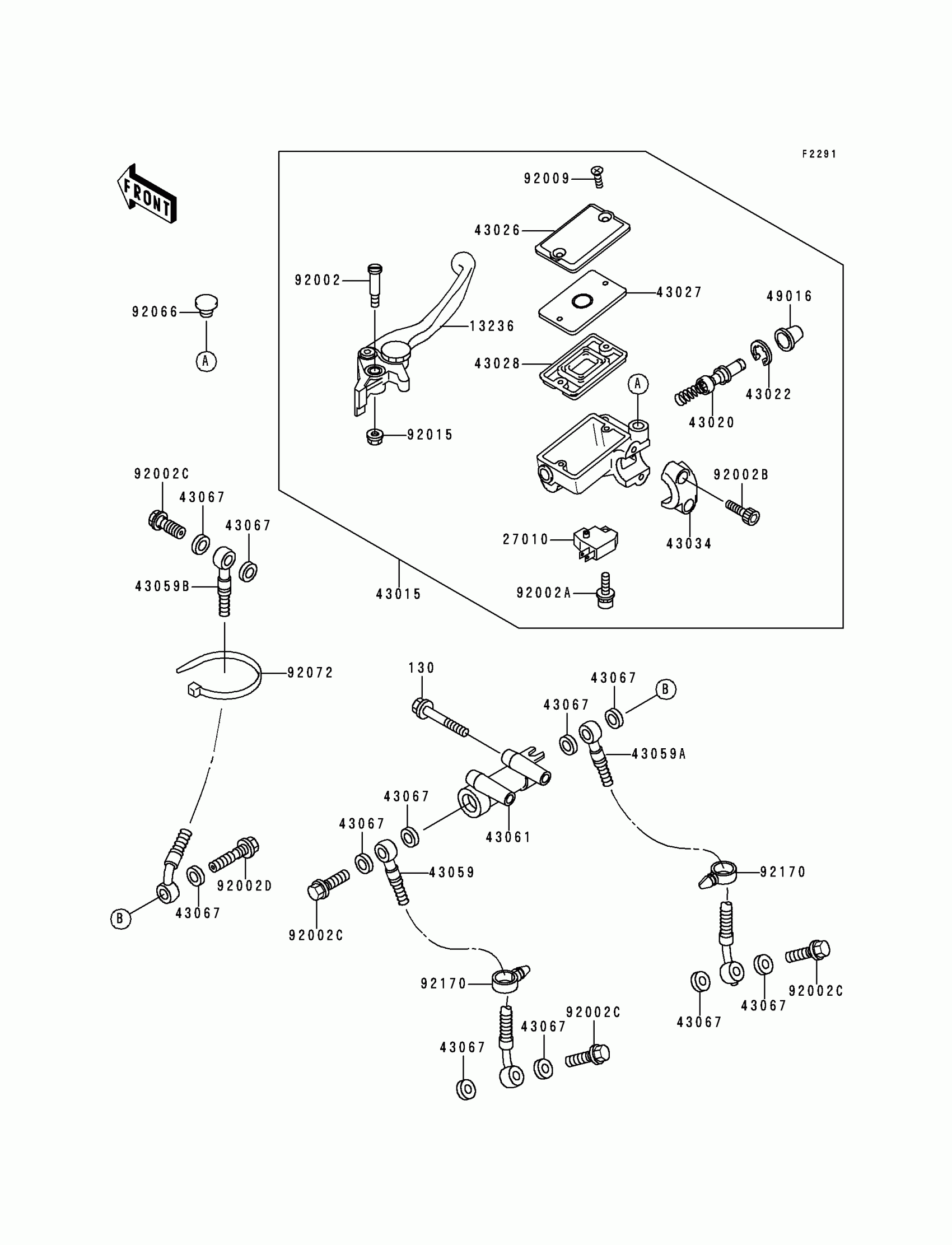

Kawasaki Ninja® ZX™-9R Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130A

BOLT-FLANGED,6X35

130J0635

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132J0610

$2.33

11052

BRACKET,RESERVOIR TANK

11052-1636

$24.39

11053

BRACKET,BRAKE HOSE

11053-0034

$21.98

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FRONT BRAKE

13236-1326

$53.04

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1691

$428.80

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR

43078-1099

$32.29

43095

HOSE-BRAKE,FR

43095-1247

$84.67

43095A

HOSE-BRAKE,FR MASTER CYLINDER

43095-1277

$15.62

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49016A

COVER-SEAL

49016-1147

$6.29

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW

92009-1570

$3.09

92009A

SCREW,5X18

92009-1655

$4.31

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,WELL,5MM

92015-1757

$7.29

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT

92150-1328

$5.00

92170

CLAMP

92170-1067

$7.45

92170A

CLAMP

92170-1090

$14.43

92171

CLAMP,HOSE

92171-1529

$6.73
