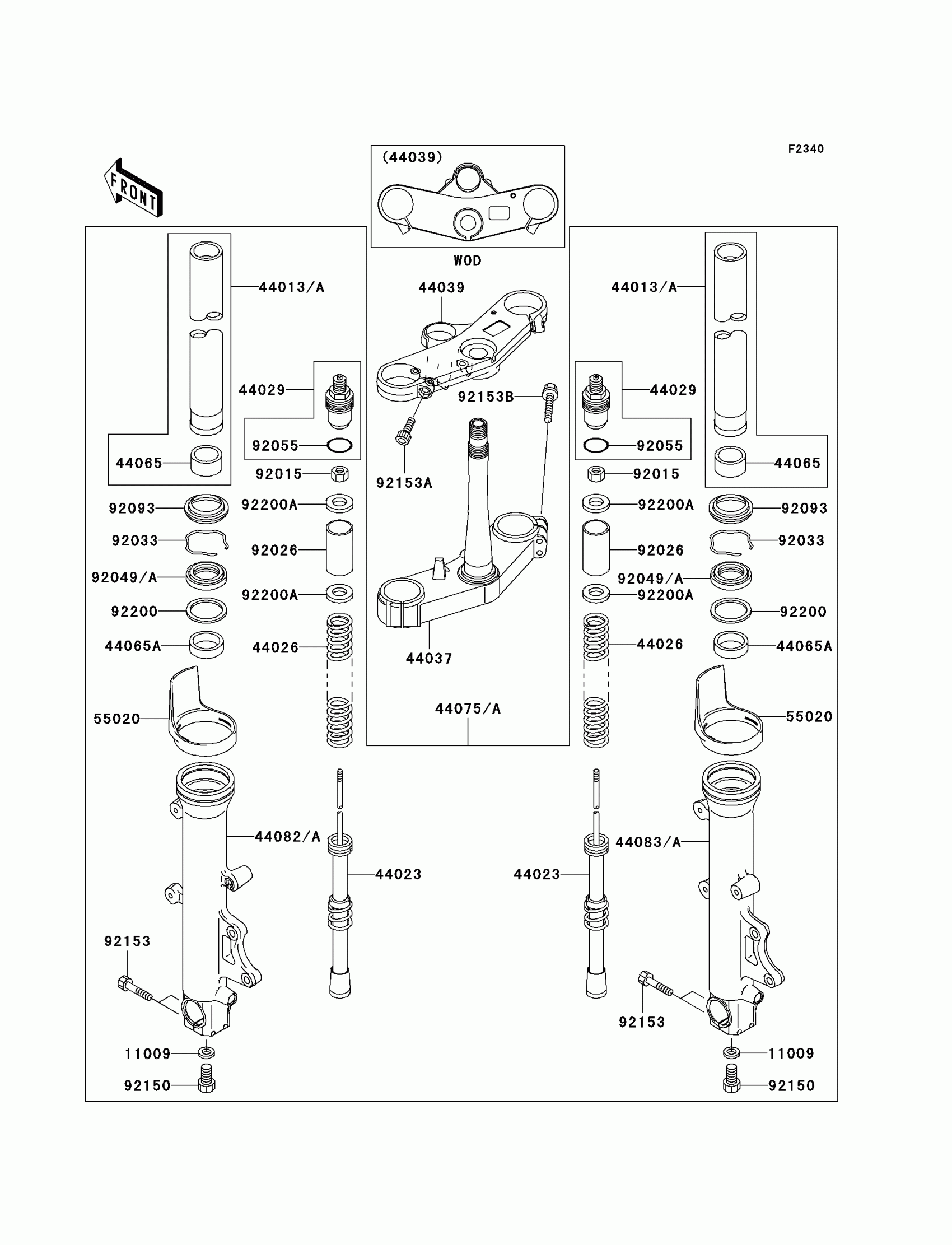

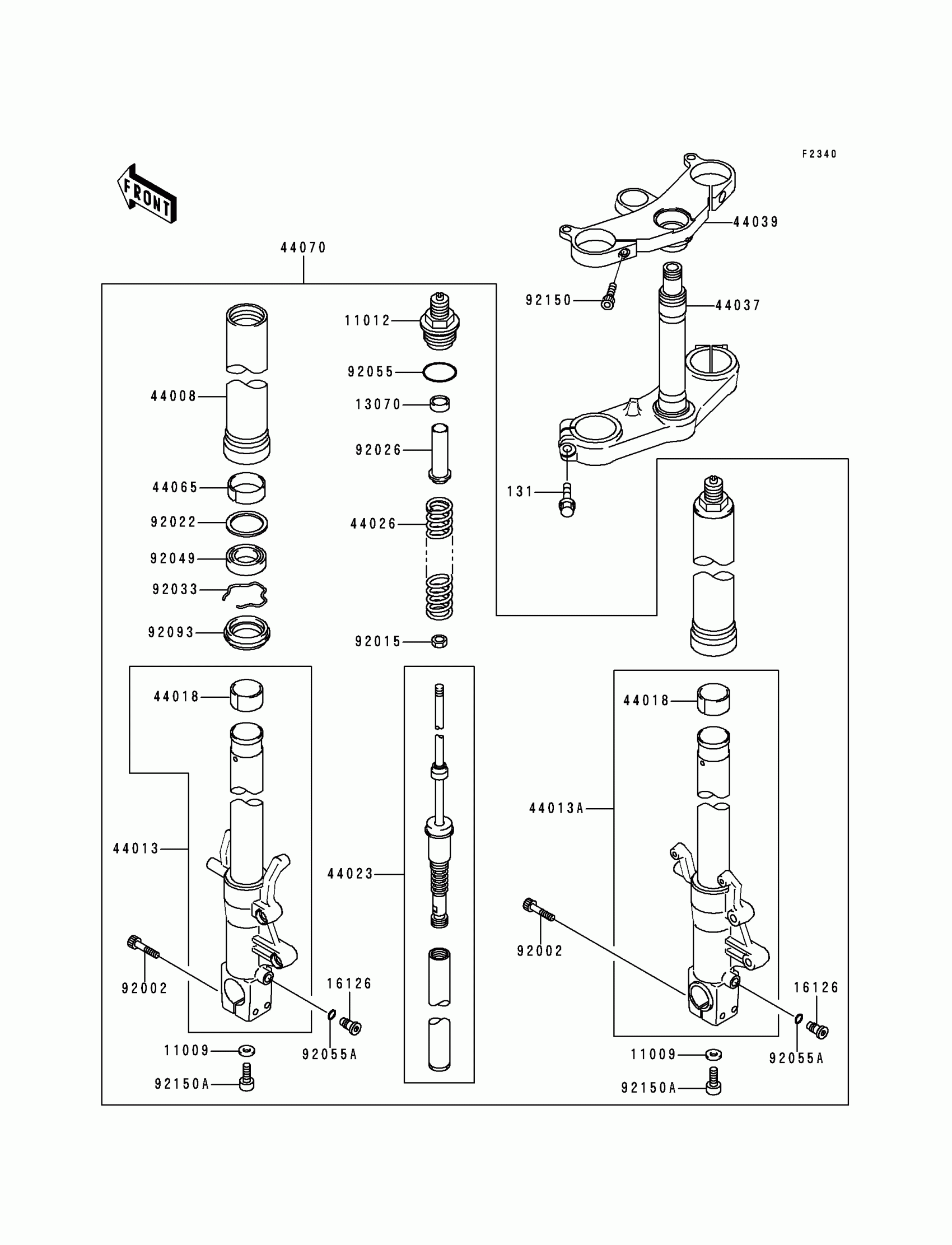

Kawasaki Ninja® ZX™-9R Front Fork Diagram

#

Description
Price

131

BOLT-FLANGED,10X40

131G1040

$9.04

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

11012

CAP,FORK TOP

11012-1748

Unavailable

13070

GUIDE,FORK

13070-1236

Unavailable

16126

VALVE,FORK

16126-1261

$146.52

44008

PIPE-FORK OUTER,BRONZE

44008-1032-JS

Unavailable

44013

PIPE-FORK INNER,LH,G.GRAY

44013-1395-GD

Unavailable

44013A

PIPE-FORK INNER,RH,G.GRAY

44013-1396-GD

$627.60

44018

PISTON-FORK

44018-1054

$47.03

44023

CYLINDER-COMP-FORK

44023-1094

Unavailable

44026

SPRING-FRONT FORK

44026-1558

Unavailable

44037

HOLDER-FORK UNDER

44037-1318

Unavailable

44039

HOLDER-FORK UPPER

44039-1245

Unavailable

44065

BUSHING-FRONT FORK,FORK OUTER

44065-1096

$26.65

44070

DAMPER-ASSY,FORK,G.GRAY

44070-5173-GD

Unavailable

92002

BOLT,SOCKET,8X45

92002-1847

$5.16

92015

NUT

92015-1795

$5.52

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92026

SPACER,FORK

92026-1448

Unavailable

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

$19.34

92055

RING-O

92055-1115

$10.14

92055A

RING-O,ANTI-DIVE UNIT

92055-1201

$3.23

92093

SEAL,FORK OUTER TUBE

92093-1359

$21.09

92150

BOLT,SOCKET,8X25

92150-1172

$2.06

92150A

BOLT,12X22

92150-1398

$9.21
