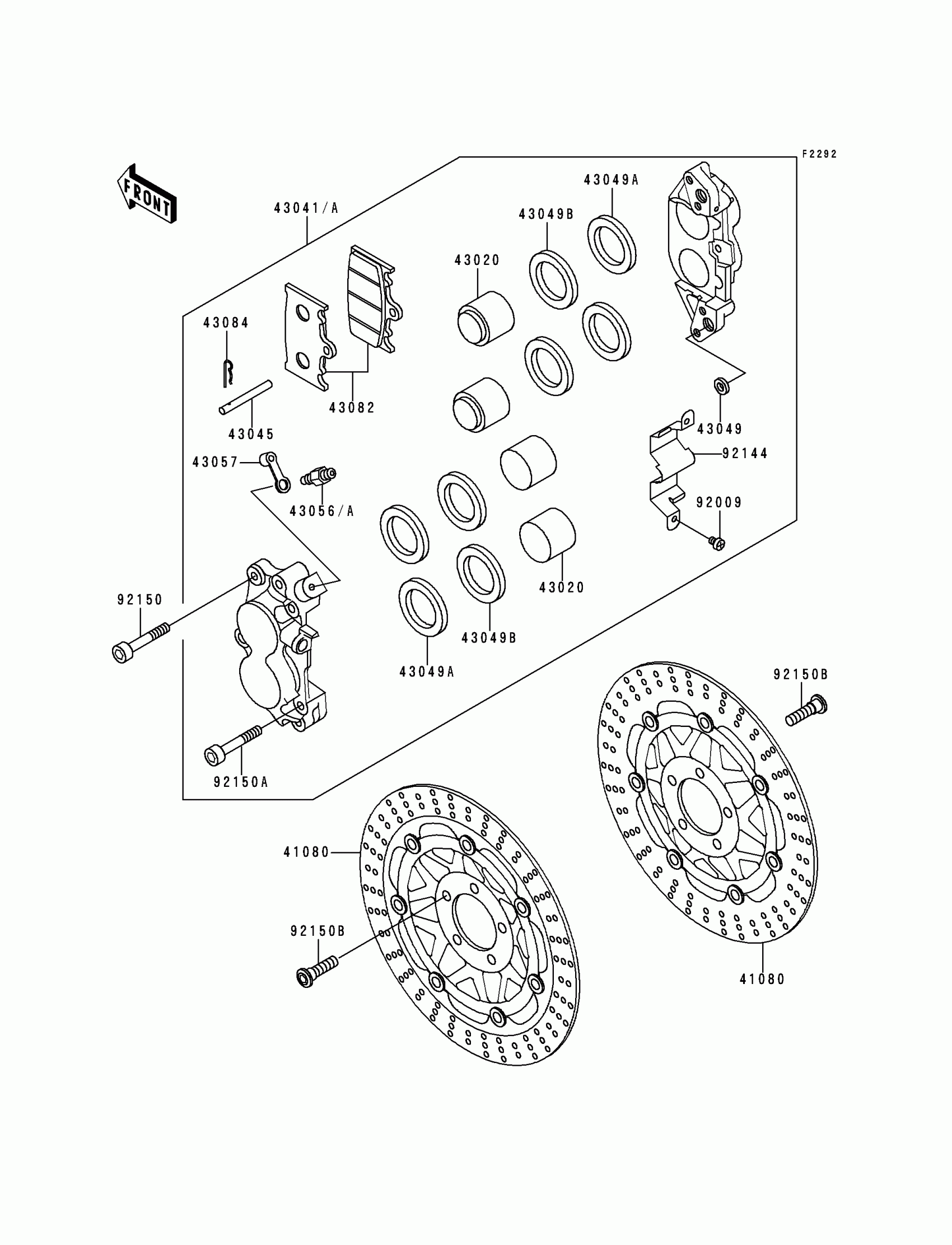

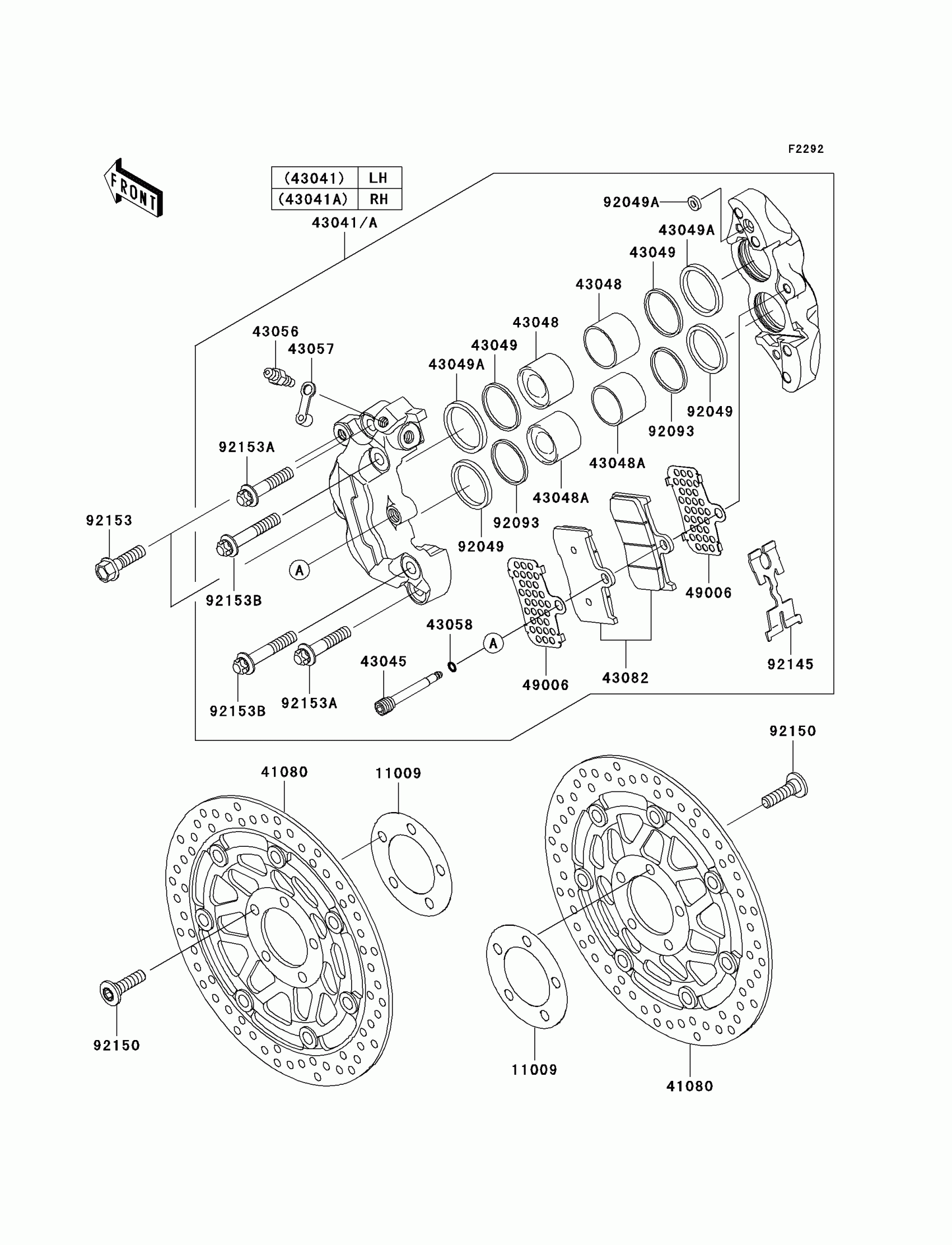

Kawasaki Ninja® ZX™-9R Front Brake Diagram

Description

Price

11009

GASKET,DISC PLATE

11009-1754

$19.15

41080

DISC,FR,GOLD+SILVER

41080-1468-A4

$490.83

43041

CALIPER-ASSY,FR,LH,GOLD

43041-1855-8Q

Unavailable

43041A

CALIPER-ASSY,FR,RH,GOLD

43041-1856-8Q

Unavailable

43045

SHAFT-CALIPER

43045-1053

$7.52

43048

PISTON-CALIPER

43048-1096

$74.23

43048A

PISTON-CALIPER

43048-1097

$74.23

43049

PACKING

43049-1081

$7.77

43049A

PACKING

43049-1082

$11.06

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43082

PAD-ASSY-BRAKE

43082-1290

$59.50

49006

BOOT,INSULATOR PAD

49006-1360

$7.35

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92049A

SEAL-OIL

92049-1448

$3.92

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING,PAD

92145-0184

$17.88

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,FLANGED,8X30

92153-1089

$2.41

92153A

BOLT,TORX,8X38

92153-1093

$4.18

92153B

BOLT,TORX,8X45

92153-1094

$4.18
